BUSSMANN ATC-10 AUTOMOTIVE BLADE FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: ATC-10
IMS Product Code: 378220
Packaging: Box of 5
Description:

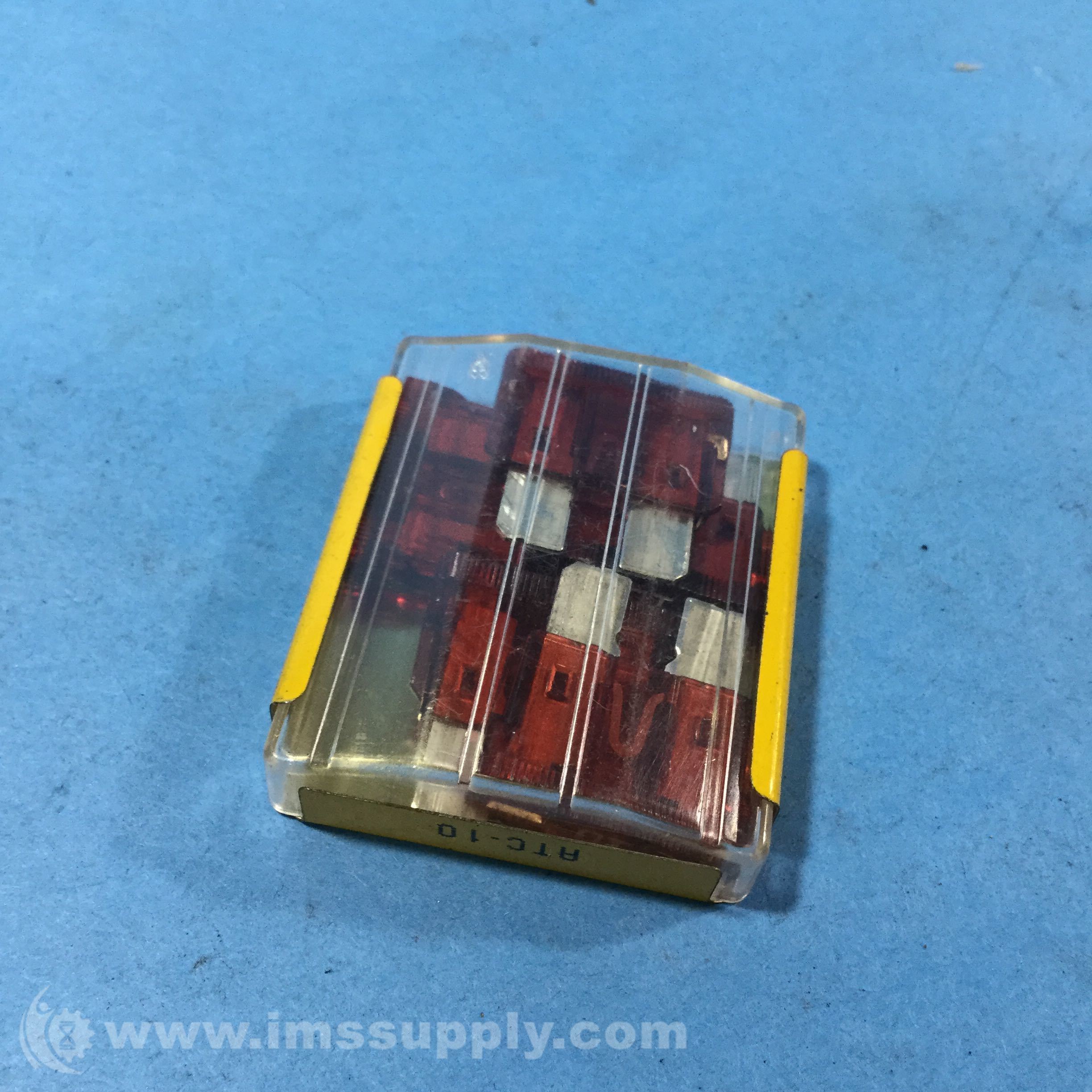

Bussmann ATC-10 Automotive Blade Fuse
Bussmann ATC-10 is a fast-acting automotive blade fuse rated for 10 amps at 32 VDC. It features a red plastic body with blade terminals and is designed for use in automotive and low-voltage control circuits.
Specifications
- Amperage Rating: 10 A
- Voltage Rating: 32 VDC
- Fuse Type: Fast-Acting
- Current Rating: 10A
- Interrupting Rating: 1000A
- Color: Red
- Body Material: Plastic
- Fuse Terminals: Blade
- Series: ATC
- Depth: 0.207 in
- Width: 0.76 in
- Overall Length: 0.75 in
- Overall Height: 0.7 in
- Material: Polycarbonate (Housing), Zinc (Terminal & Element)
- Blown Fuse Indicator: No
- Application: Automotive, Low Voltage Control Circuits
- Standards: ISO 8820-3 / SAE J1284 / JASO 612 (1-40A), RoHS Complaint, SAE J1171 (Ignition Protection), UL Recognized File E56412, Guide JFHR2, UL 248-1 (1-40 A)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
