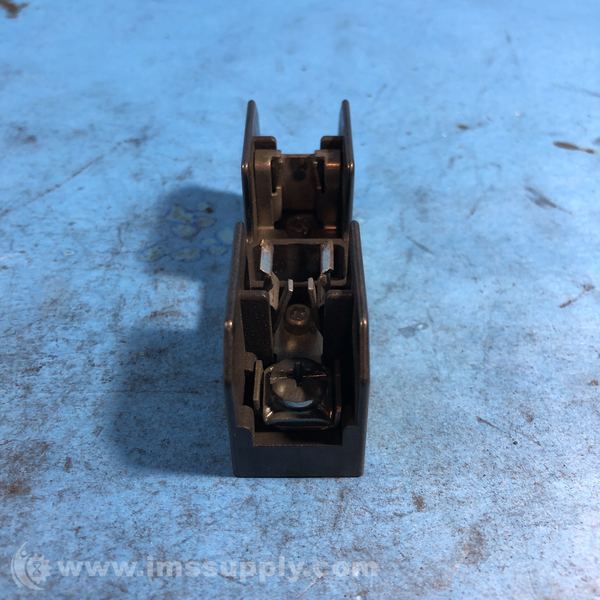

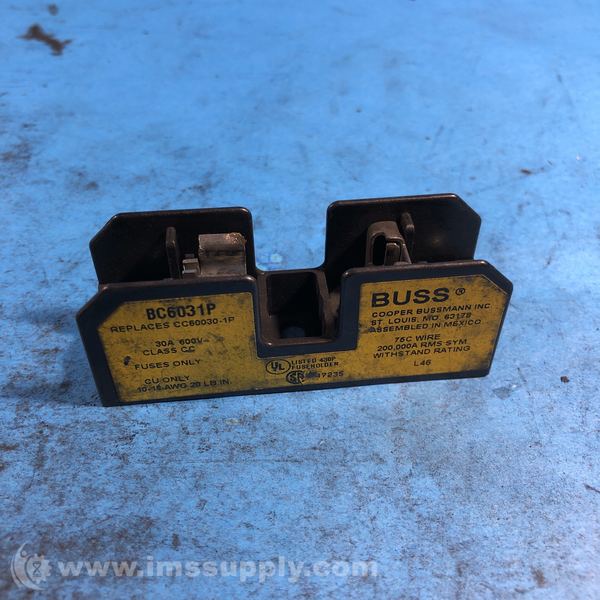

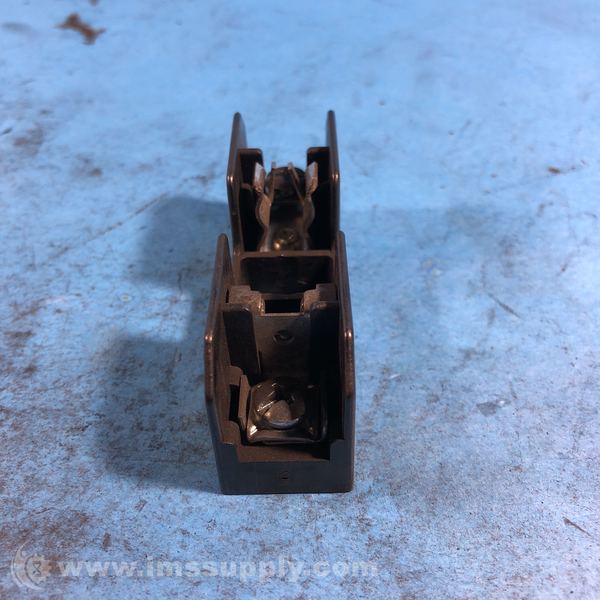

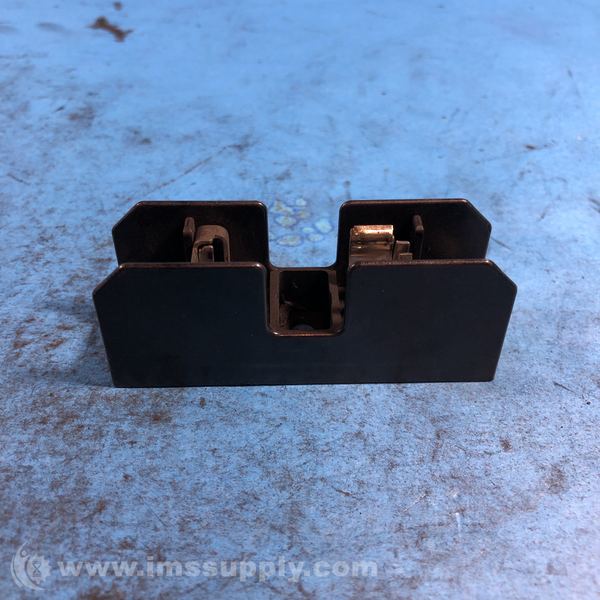

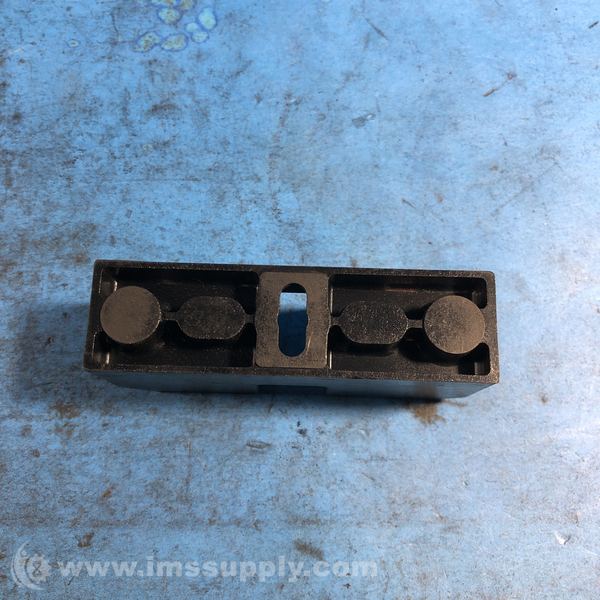

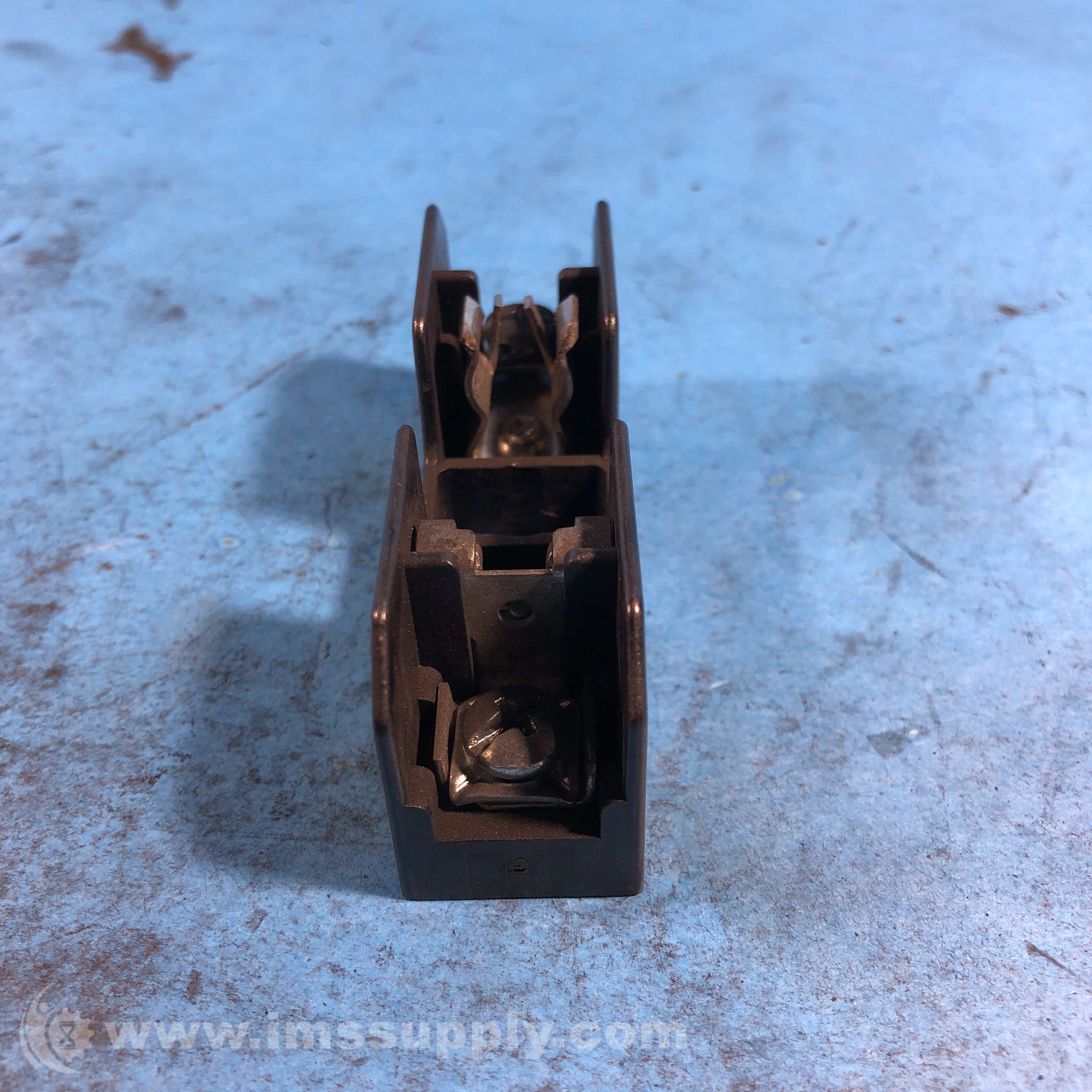

BUSSMANN BC6031P CLASS CC FUSE BLOCK
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: BC6031P
IMS Product Code: 378260
Packaging: Sold Individually
Description:
Bussmann BC6031P Class CC Fuse Block
1-Pole, 600V, 30A, Pressure Plate Terminal, Class CC Fuse Holder
Specifications
- Fuse Holder Type: Branch Circuit Cartridge Fuse Holder
- Fuse Current: 30A
- Holder Terminals: Pressure Plate
- No. of Fuses: 1
- Product Range: BC Series
- Voltage Rating VAC: 600V
- Voltage Rating VDC: 600V
- Type: Standard
- Body Material: Thermoplastic
- Number of Poles: 1
- Fuse Type: Class CC
- Fuse Voltage Rating: 600 V
- Fuse Current Rating: 1/10 to 30 Ampere
- Terminal Type: Pressure Plate
- Clip Type: Bright Tin Plated Bronze
- Approval: UL, CSA C22.2, CE
- Interrupting Rating: 200000 Ampere (Symmetrical)
- Overall Dimension: 3 Inch W x 1.21 Inch D x 0.828 Inch H
- Color: Black
- Contact Material: Bronze
- Contact Plating: Tin
- Material: Bronze, Thermoplastic, Tin
- Mount: Chassis Mount, DIN Rail
- Number of Pins: 1
- Weight: 38.555351 g
- Current Rating: 30 A
- Number of Circuits: 1
- Packaging: Bulk
- Termination: Screw
- Voltage: 600 V
- Depth: 76.2 mm
- Length: 21.03 mm
