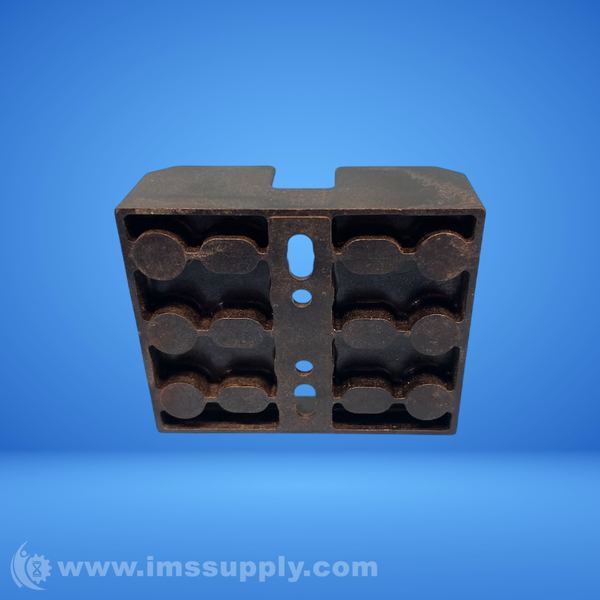

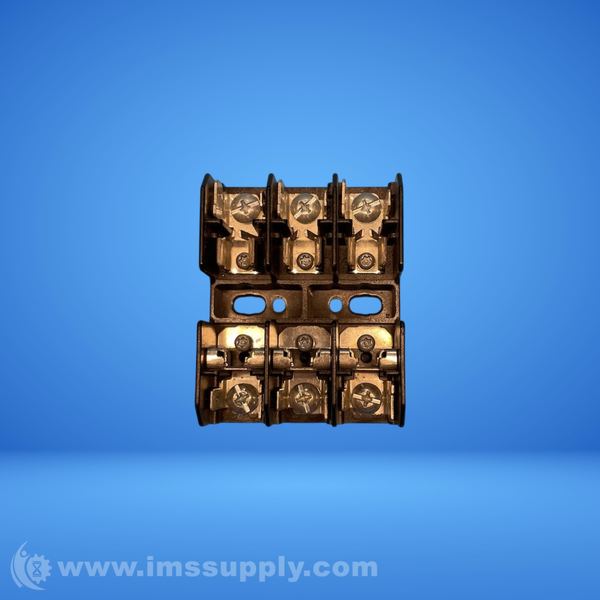

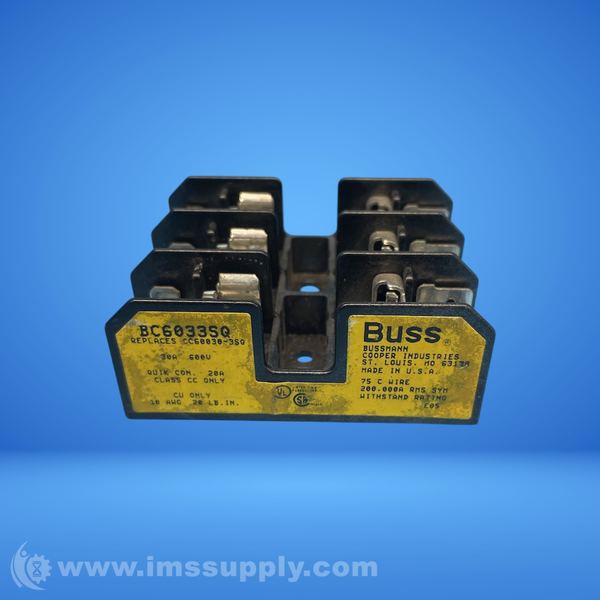

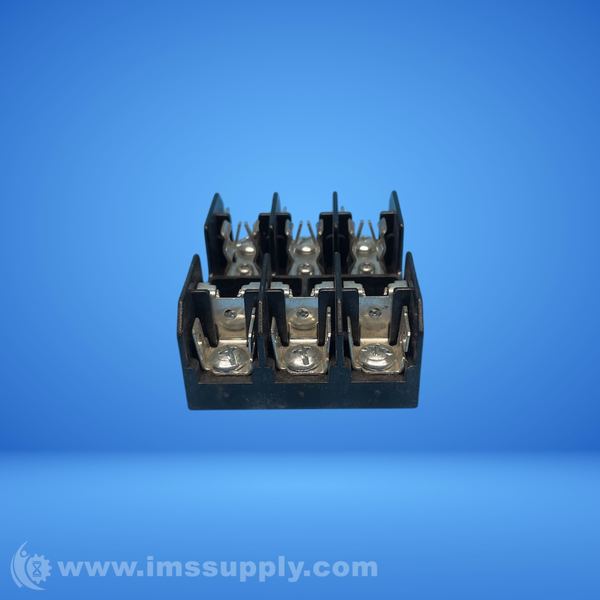

BUSSMANN BC6033SQ 3-POLE CLASS CC FUSE BLOCK
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: BC6033SQ
IMS Product Code: 378273
Packaging: Sold Individually
Description:
Bussmann BC6033SQ 3-Pole Class CC Fuse Block
3-Pole Class CC Fuse Block with Screw and Quick Connect Terminal
Specifications
- Type: Standard
- Body Material: Thermoplastic
- Number of Poles: 3
- Fuse Type: Class CC
- Fuse Voltage Rating: 600 V
- Fuse Current Rating: 1/10 to 30 Ampere
- Terminal Type: Screw with Quick Connect
- Clip Type: Bright Tin Plated Bronze
- Interrupting Rating: 200000 Ampere (Symmetrical)
- Overall Dimension: 3 Inch W x 1.21 Inch D x 2.375 Inch H
- Series: BC
- Weight: 0.2 lbs
- Color: Black
- Contact Material: Bronze
- Contact Plating: Tin
- Mount: Chassis Mount
- Number of Pins: 3
- Current Rating: 30 A
- Voltage Rating: 600 V
- Depth: 76.2 mm
- Length: 60.33 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
