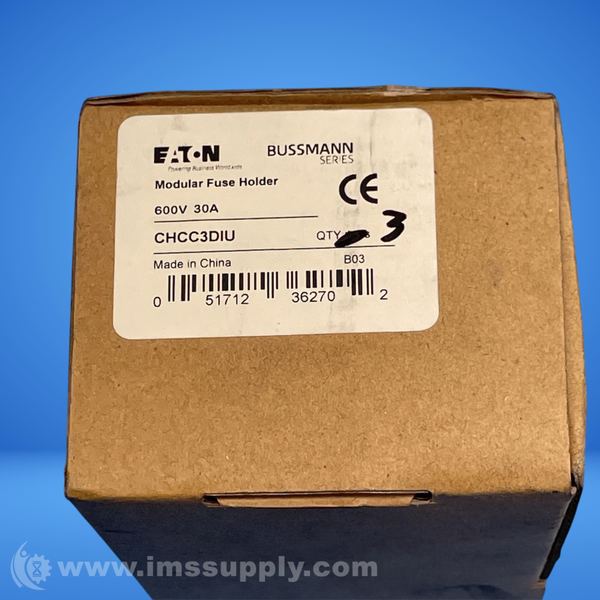

BUSSMANN CHCC3DIU FINGER SAFE MODULAR FUSE HOLDER
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: CHCC3DIU
IMS Product Code: 2148705
Packaging: Box of 3
Sold Individually
Box of 3
Description:
Bussmann CHCC3DIU Finger Safe Modular Fuse Holder
3-pole, 30A, UL Class CC fuse holder with LED indicator, 600VDC, DIN rail mount, polyester material, white color
Specifications
- Amperage Rating: 30 A
- Class: CC
- Color: White
- Connection Type: Spade Lug
- Dimensions: 2.067 in W x 3.275 in D x 2.909 in H
- Fuse Diameter: 10 mm
- Fuse Holder Code: W
- Fuse Length: 38 mm
- Fuse Type: CC
- Material: Polyester
- Mounting Type: DIN Rail
- Number of Poles: 3
- Operating Temperature: -20 to 90 degrees C
- Series: CH Series
- Suitable For Use With: KTK-R, LP-CC and FNQ-R Series CC Fuse
- Type: Finger Safe Modular
- Voltage Rating: 600 VDC
- Wire Size: 18 to 4 AWG
