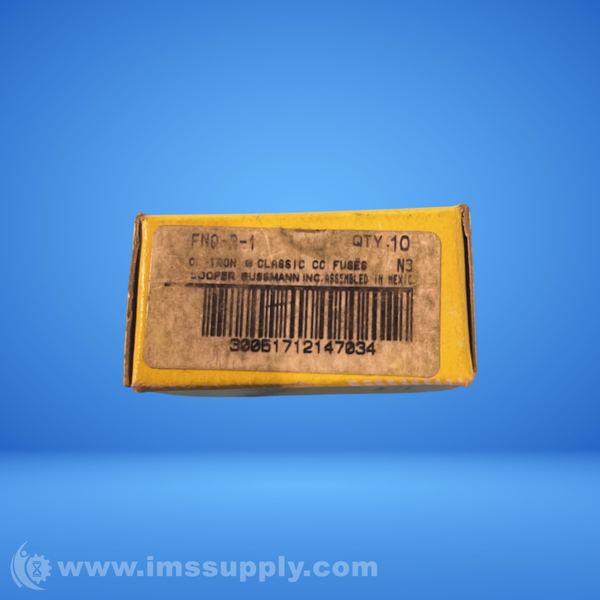

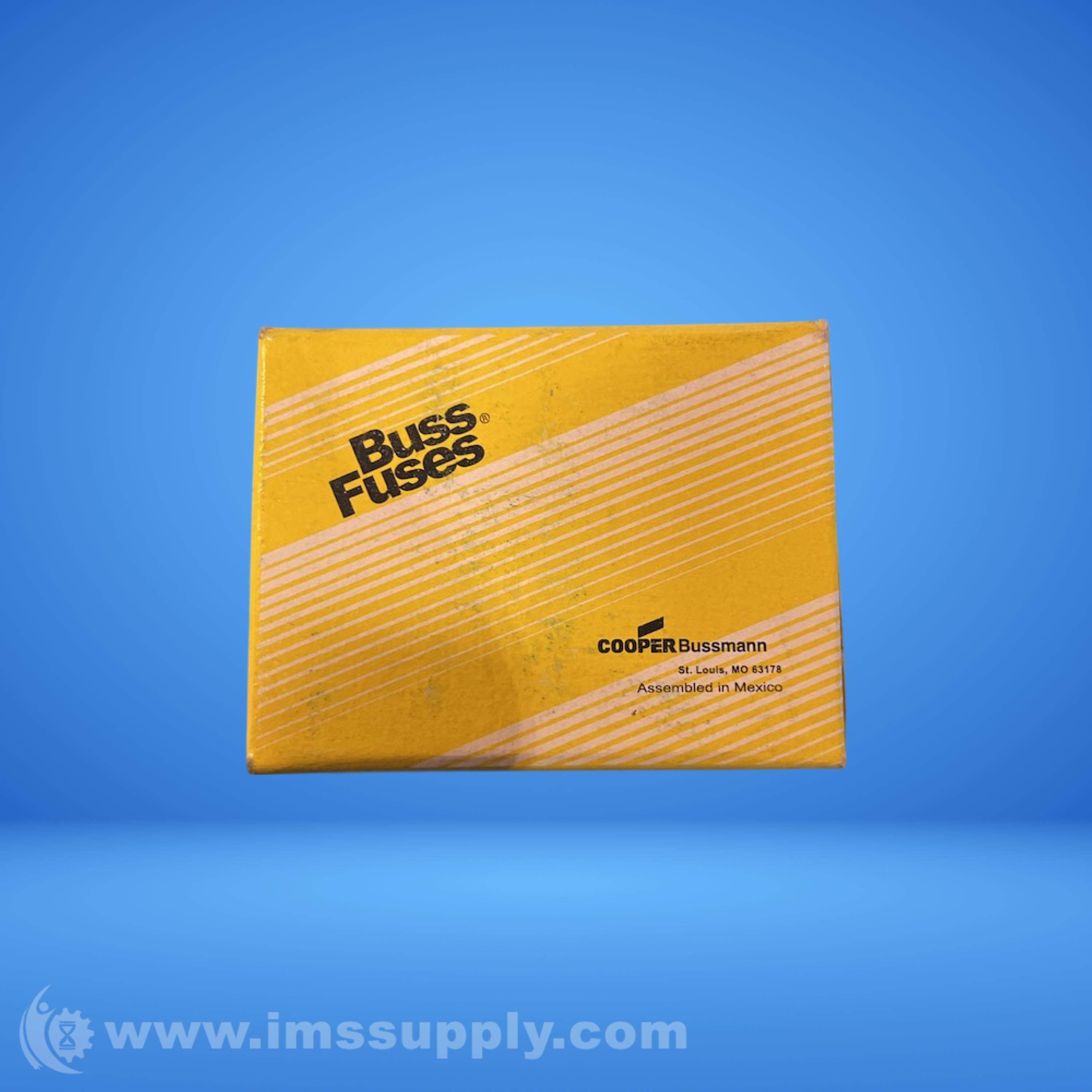

BUSSMANN FNQ-R-1 CLASS CC TIME DELAY FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: FNQ-R-1
IMS Product Code: 2149762
Packaging: Box of 10
Sold Individually
Box of 9
Box of 10
Description:
Bussmann FNQ-R-1 Class CC Time Delay Fuse
1A 600V Time Delay Class CC Fuse with 200 kAIC Interrupt Rating
Specifications
- Series: FNQ
- Current Rating: 1 A
- Voltage Rating: 600 V ac
- Material: Melamine
- Interrupt Rating: 200 kAIC (RMS Symmetrical)
- Amperage Rating: 1 A
- Connection: Ferrule End X Ferrule End
- Diameter: 0.41 in;10.3 mm
- Overall Length: 1.5 in;38.1 mm
- Fuse Speed: Time Delay
- Fuse Class: Class CC
- Response Time: 12 s @ 200%
- Standards Met: UL Listed;Std. 248-14;Guide JDYX;File E19180;CSA Certified:C22.2 No. 248.14;Class 1422-01;File 53787;HRC-MISC;CE Certified;RoHS Compliant
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships on Monday, May 11, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
