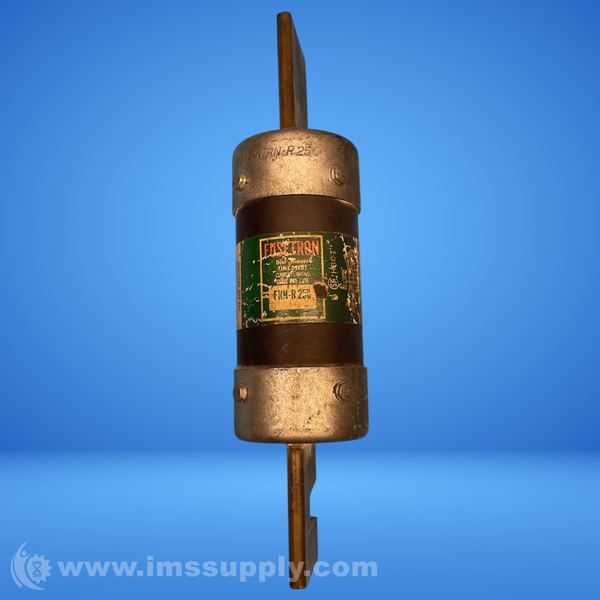

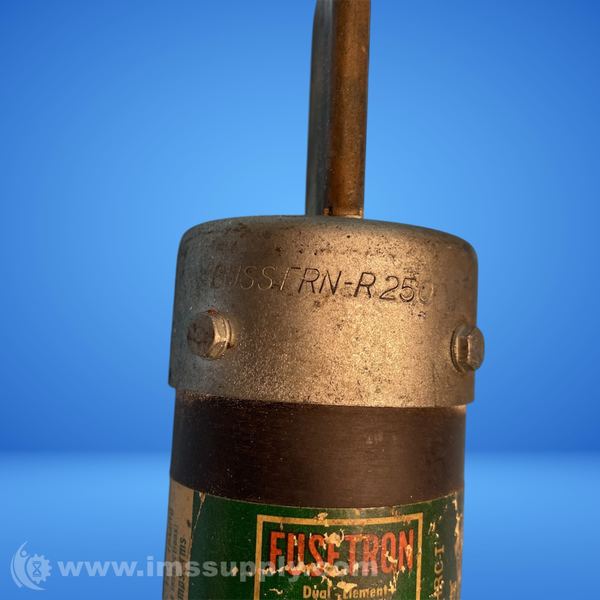

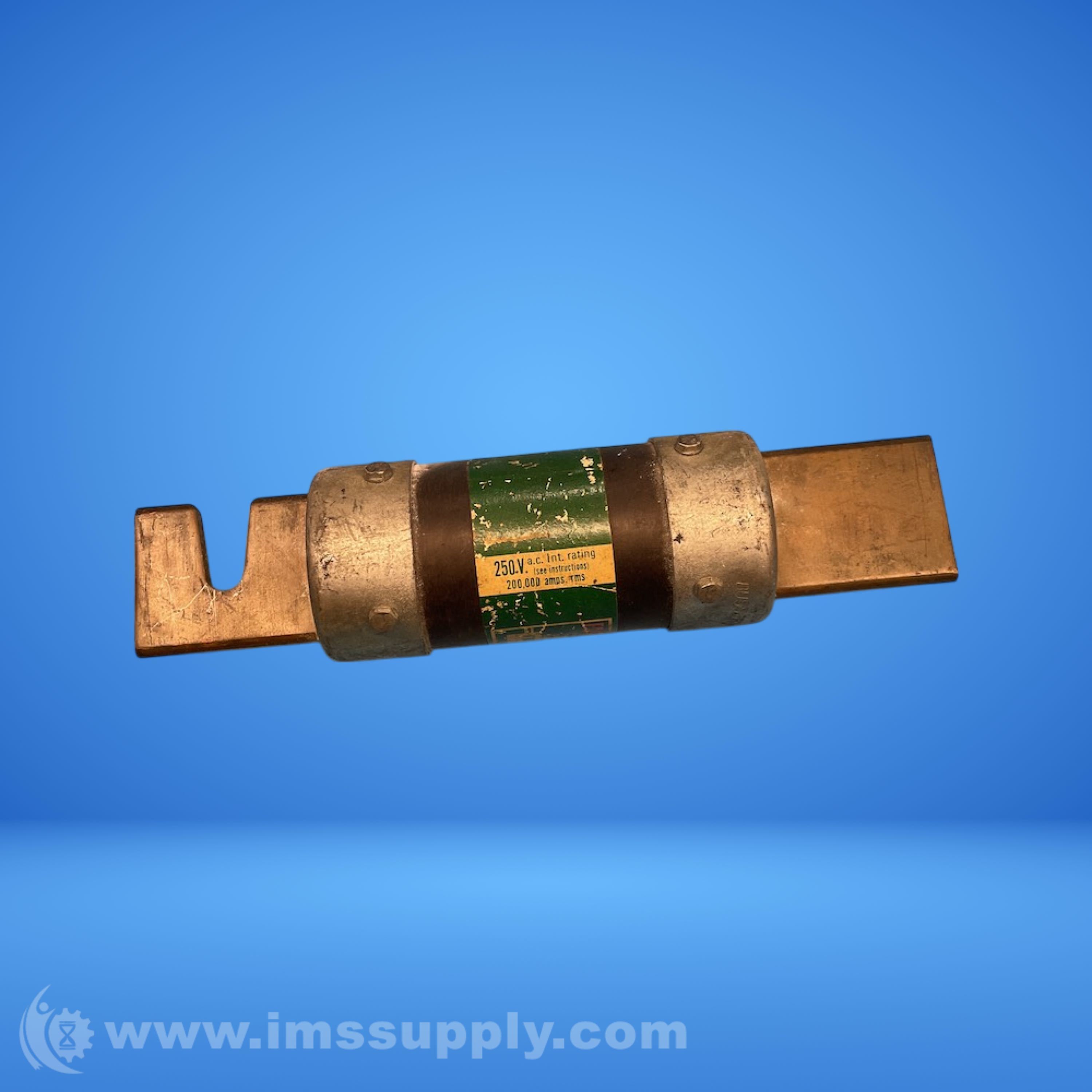

BUSSMANN FRN-R-250 TIME DELAY FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: FRN-R-250
IMS Product Code: 378638
Packaging: Sold Individually
Description:
Bussmann FRN-R-250 Time Delay Fuse
250A, 250V AC, Class RK5, Dual Element, Time Delay Fuse
Specifications
- Series: FRN-R
- AC Voltage Rating: 250 V AC
- Body Material: Fiberglass
- Compatible Fuse Block Series: HM250; RM250
- Current Rating: 250 A
- DC Voltage Rating: 250 V DC
- Element: Dual
- Fuse Block Style: Rejection
- Fuse Body Style: Blade
- Fuse Class or Type: RK5
- Interrupt Rating - AC: 200 kA
- Interrupt Rating - DC: 20 kA
- Overall Diameter: 2-3/8 in
- Overall Length: 8-5/8 in
- Speed: Time-Delay
- Standards: CE; CSA Certification Class 1422-01; UL 248-12 Guide JDDZ
- Visual Indication: Non-Indicating

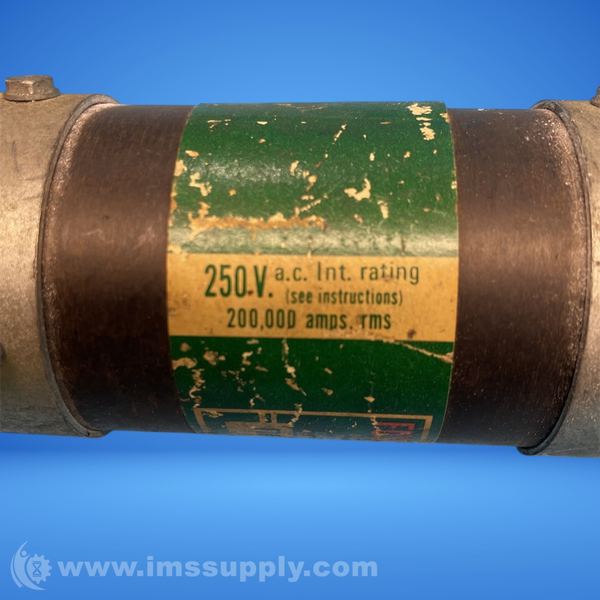

- Interrupting Rating: 200,000 AIC @ 250 VAC
- Interrupting Rating DC: 20,000 @ 125 VDC
- UL Listing: Class RK-5, Guide JDDZ, File E4273
- CSA Certification: C22.2 No. 248.12, Class 1422-01, File 53787
- Physical Size: 2.38" x 8.63"
- Terminal Type: Blade
- Dimensions (HxWxD): 0.5 x 1 x 1
- Weight: 0.896 lbs
- Connection: Blade End X Blade End
- Size: 2.38 In Diameter X 8.63 In Length
- Response Time: 10 S at 500%
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
