BUSSMANN FRS-R-1 FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: FRS-R-1
IMS Product Code: 378692
Packaging: Sold Individually
Sold Individually
Bag of 4
Description:

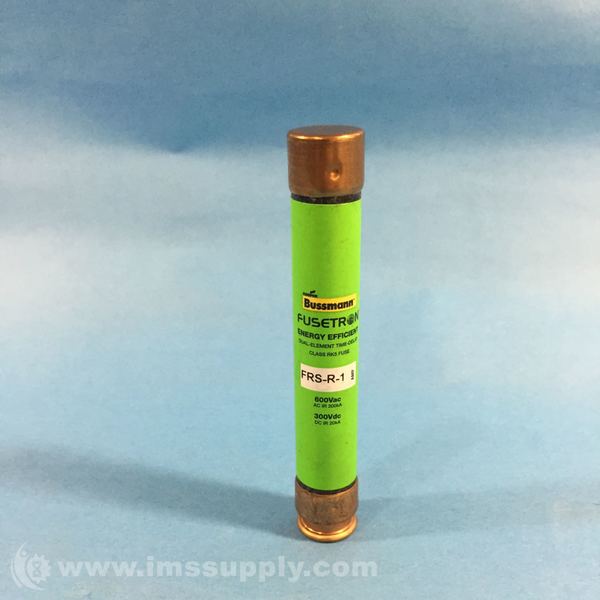

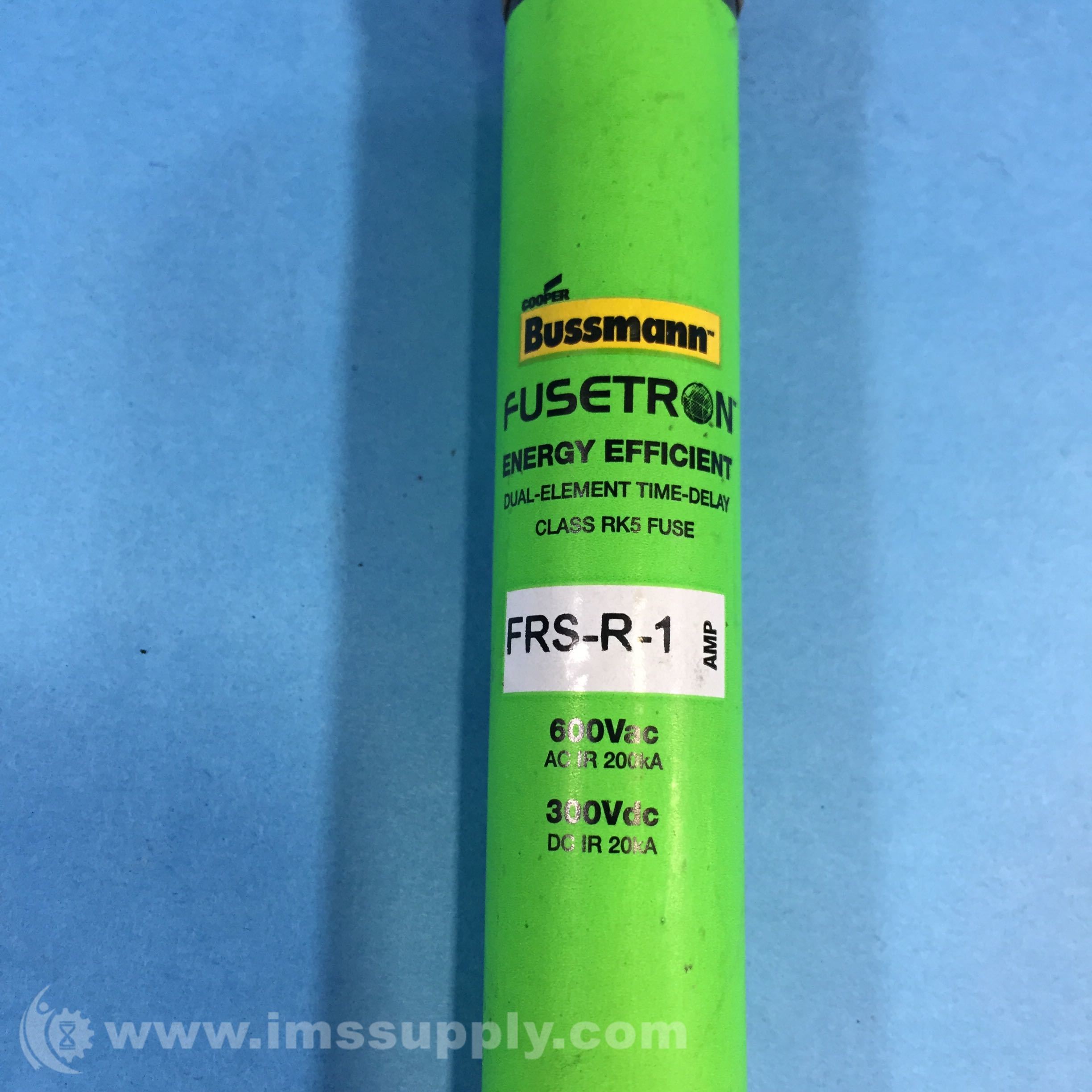

Bussmann FRS-R-1 Fuse
1 Amp, 600 Volts AC, UL Class RK5, Dual Element, Time Delay Fuse
Specifications
- AC Voltage Rating: 600
- Interrupting Rating: 200,000 AIC RMS
- Interrupting Rating (DC): 20 kAIC @ 300 Vdc
- Physical Size: 0.81" x 5"
- Class: RK5
- Time Delay: 10 Sec (At 500 Percent Rated Load)
- Voltage: 600 Vac/300 Vdc
- Current: 1 Ampere
- Terminal Type: Ferrule
- Diameter: 0.81 Inch
- Length: 5 Inch
- Approvals: UL 248-12 CSA CE
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 23 In Stock
Ships today if ordered in the next 2 hours and 28 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 8 In Stock
Ships today if ordered in the next 3 hours and 28 minutes.
