BUSSMANN FRS-R-110 110A FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: FRS-R-110
IMS Product Code: 378695
Packaging: Sold Individually
Description:

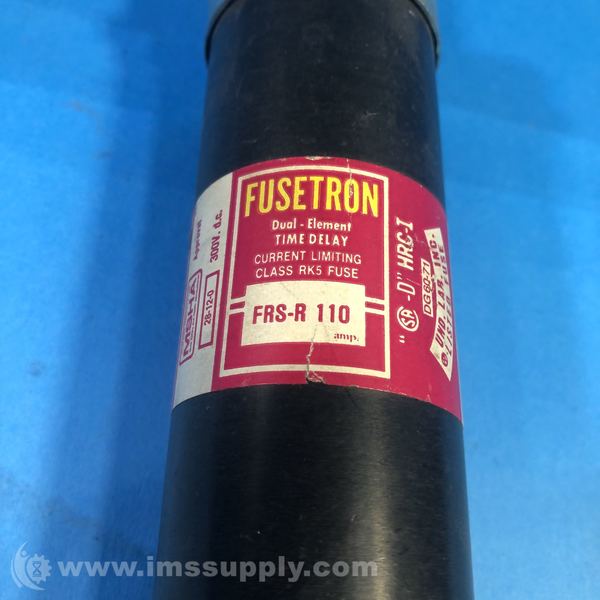

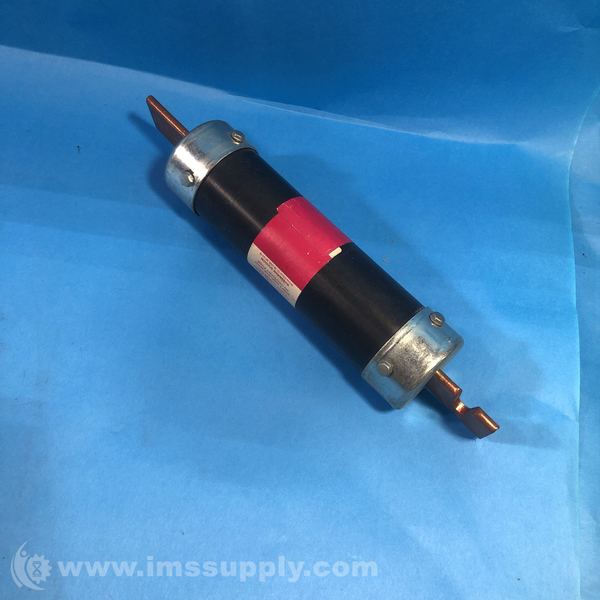

Bussmann FRS-R-110 110A Fuse
Time-delay, dual-element, current-limiting fuse, 110A, 600V AC/300V DC, Class RK5
Specifications
- Class: RK5
- Time Delay: 10 Sec (At 500 Percent Rated Load)
- Voltage: 600 Vac/300 Vdc
- Ampere: 110
- Interrupting Rating: 200000 Ampere (Symmetrical) 20000 Ampere (Dc)
- Terminal Type: Blade
- Diameter: 1.84 Inch
- Length: 9.63 Inch
- Approvals: Ul 248-12 Csa Ce
- Current Limiting: Current Limiting
- Dimensions (HxWxD): 1.61 x 9.63
- Weight: 0.8 lbs
- Fuse Type: Time-Delay/Slow-Blow (T)
- Fuse Classification: Current-Limiting
- Interrupt Rating: 200kA at 600V AC, 20kA at 300V DC
- Body Material: Fiberglass
- Connection: Blade end x blade end
- Element: Dual
- Response Time: 10 S at 500%
- Size: 1.61 In Diameter X 9.63 In Length
- Voltage Rating: 600 Vac, 300 Vdc
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
