More Views

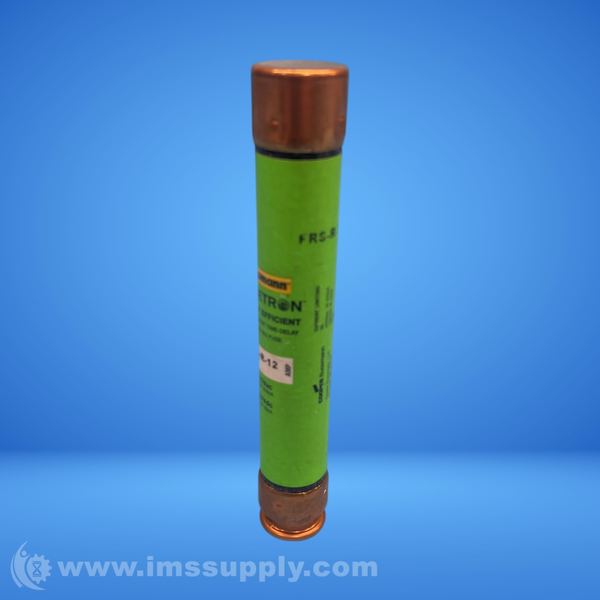

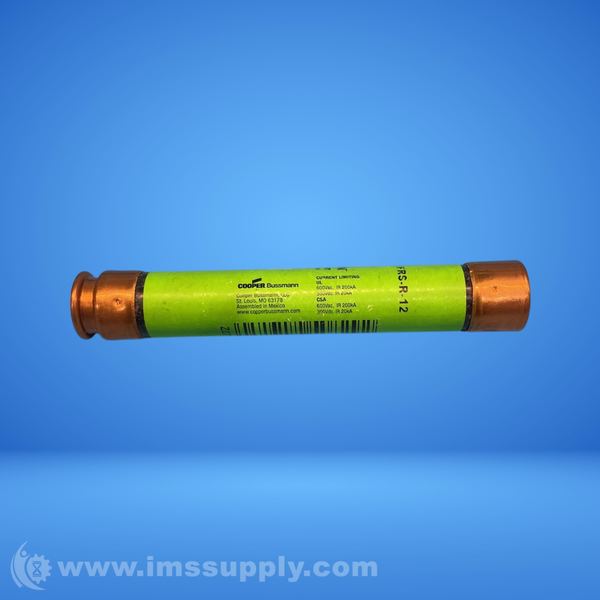

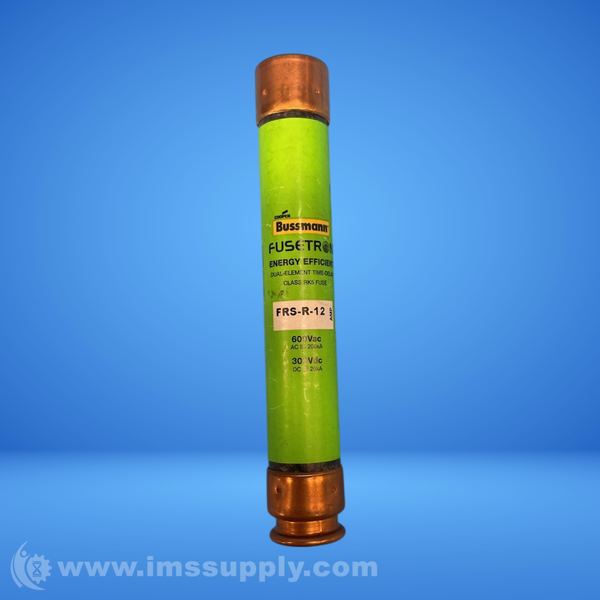

BUSSMANN FRS-R-12 DUAL ELEMENT TIME DELAY FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: FRS-R-12
IMS Product Code: 378699
Color: Black
Unspecified
Color: Black
Packaging: Sold Individually
Description:
Bussmann FRS-R-12 Dual Element Time Delay Fuse
Class RK5, 12A, 200kA @ 600VAC / 20kA @ 300VDC Interrupt Rating, 0.81"x5.00"
Specifications
- type: Dual-Element, Time-Delay Fuse 10 Seconds (Minimum) at 500% Rated Amps
- class: Class RK5
- maximum ac voltage (v ac): 600
- maximum dc voltage (v dc): 300
- amperage rating (a): 12
- interrupting ratings @ 600vac k(a): 200
- interrupting ratings @ 300vdc (ka): 20
- construction: Fiberglass Tube
- dia (in.): 0.81
- length (in.): 5
- standard: CE, Std. 248-12, Class RK5, UL Listed, Guide JDDZ, File E4273, CSA Certified, Class 1422-02, File 53787
- dimensions: 1.38 x 0.38 x 0.38 inches
- product length/depth: 9.63 in
- product height: 1.61 in
- product width: 1.61 in
- product weight: 1.3 lb
- interrupt rating: 200 kAIC at 600 Vac
- response time: 10 sec at 500%
- voltage rating: 600 Vac 300 Vdc
- connection: Ferrule end x ferrule end
- fuse indicator: Non-indicating
- number of elements: Dual
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 4 In Stock
Ships today if ordered in the next 34 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 81 In Stock
Ships today if ordered in the next 34 minutes.
