BUSSMANN FRS-R-15 TIME DELAY FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: FRS-R-15
IMS Product Code: 1859301

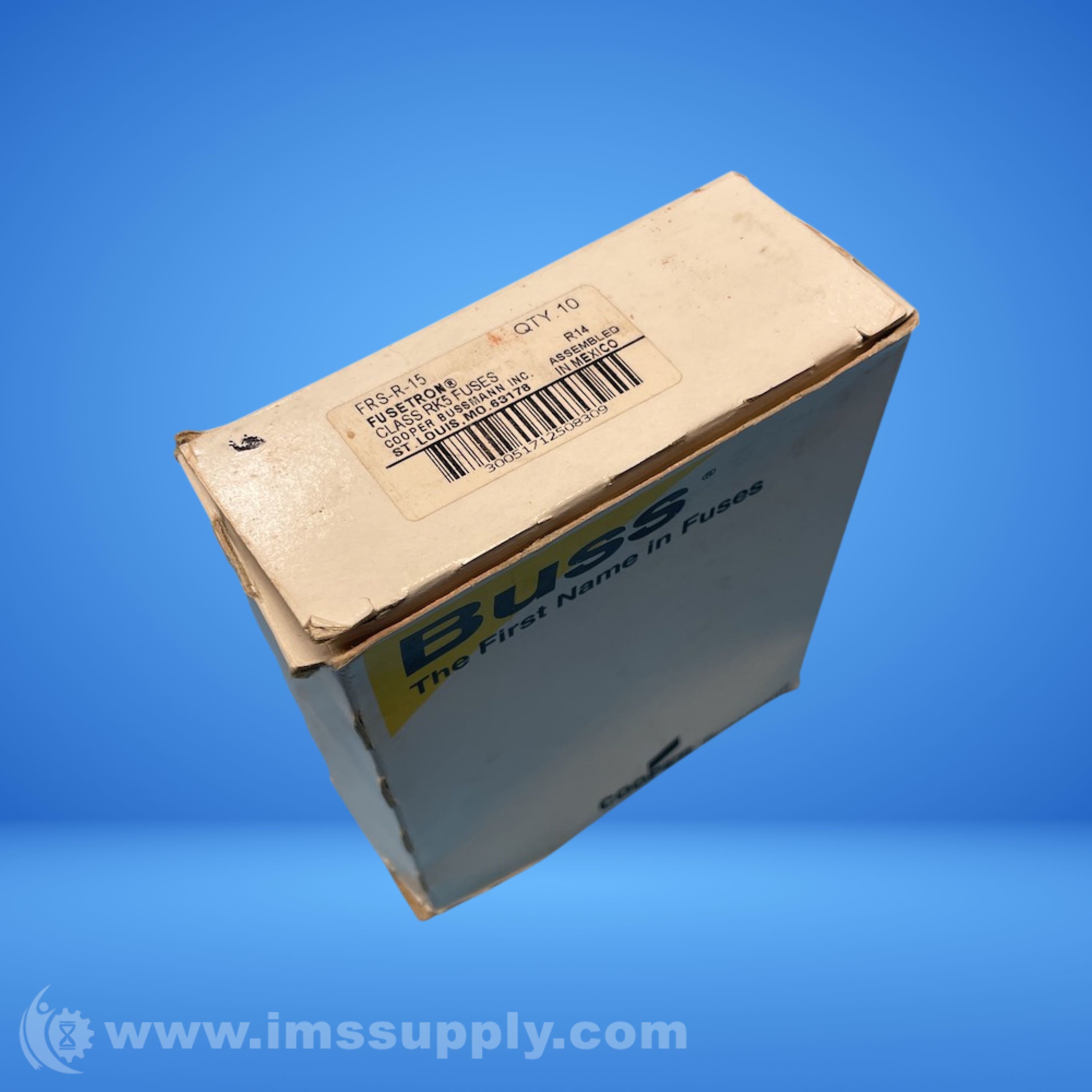

Packaging: Box of 10
Sold Individually
Box of 10
Description:

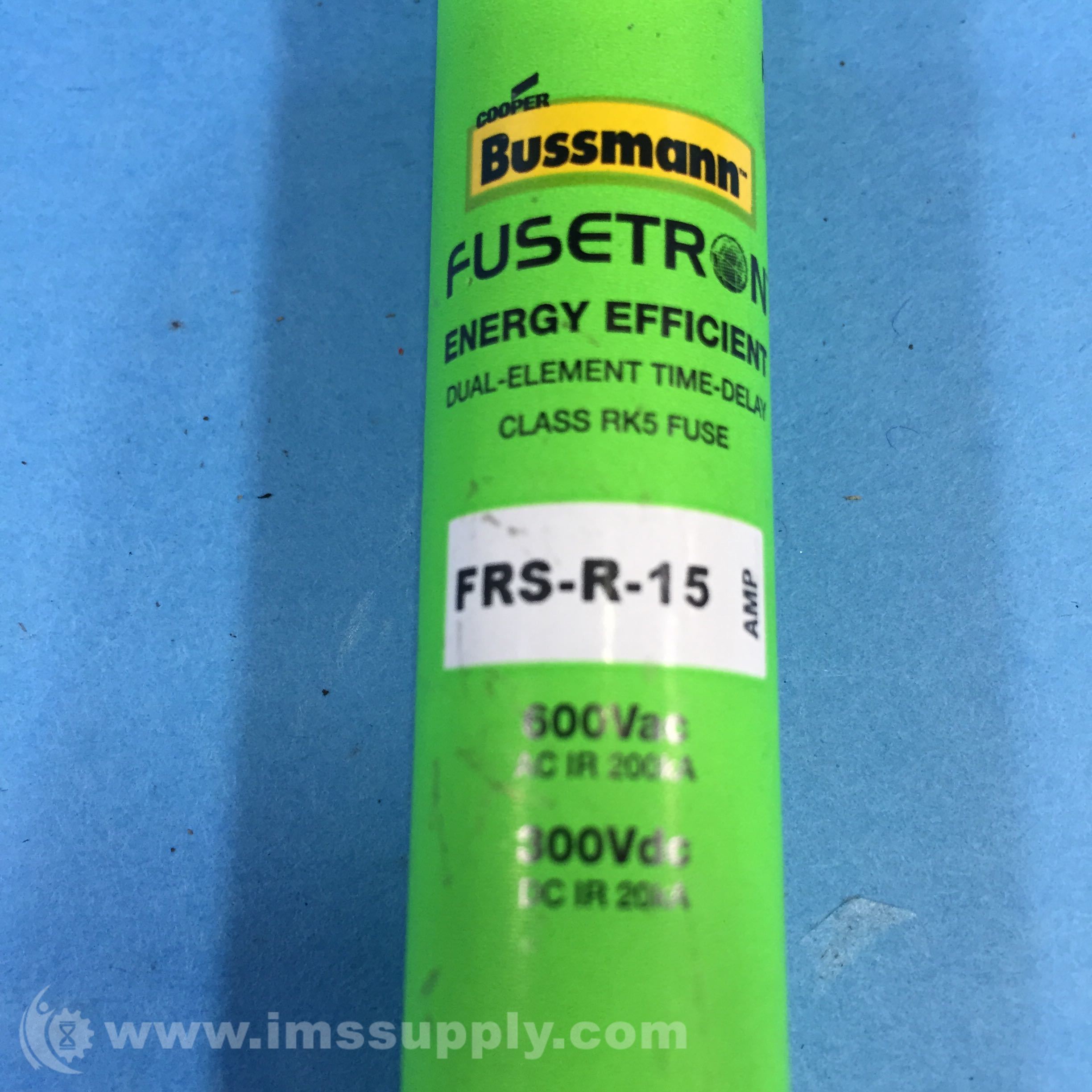

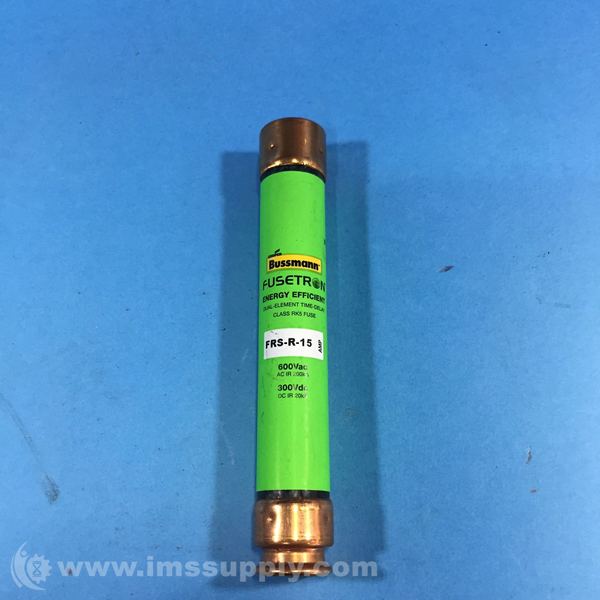

Bussmann FRS-R-15 Time Delay Fuse
Dual Element Time Delay Fuse, Class RK5, 15A, 600V AC, 300V DC, 200kA Interrupt Rating, Fiberglass Body, Ferrule Terminal
Specifications
- Class: RK5
- Time Delay: 10 Sec (At 500 Percent Rated Load)
- Voltage: 600 Vac/300 Vdc
- Current: 15 Ampere
- Interrupting Rating: 200000 Ampere (Symmetrical) 20000 Ampere (Dc)
- Terminal Type: Ferrule
- Diameter: 0.81 Inch
- Length: 5 Inch
- Approvals: Ul 248-12 Csa Ce
- Current Limiting: Yes
- Body Material: Fiberglass
- Element: Dual
- Fuse Body Style: Cylindrical
- Speed: Time-Delay
- Standards: CE; CSA Certification Class 1422-01; UL 248-12 Guide JDDZ
- Visual Indication: Non-Indicating

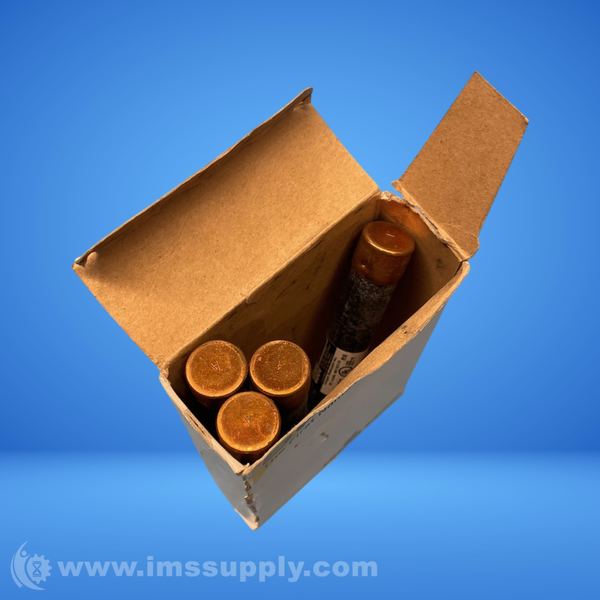

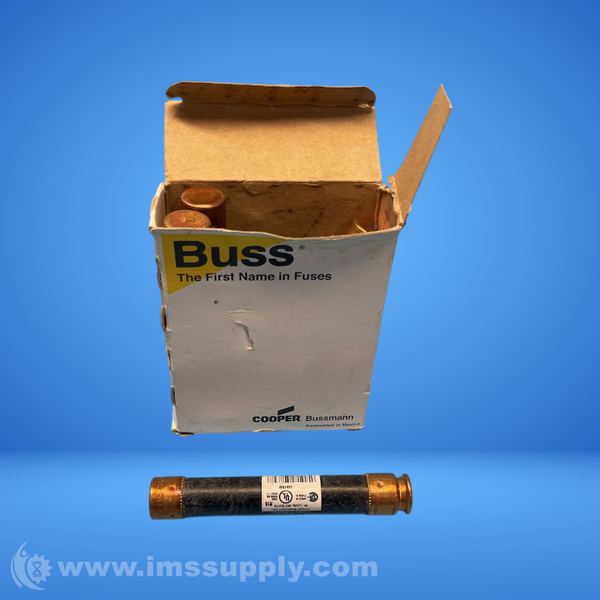

New - Open Box (Special):
Was a box of 10. Only 7 in box
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
