BUSSMANN FRS-R-175 FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: FRS-R-175
IMS Product Code: 378705
Packaging: Sold Individually
Description:

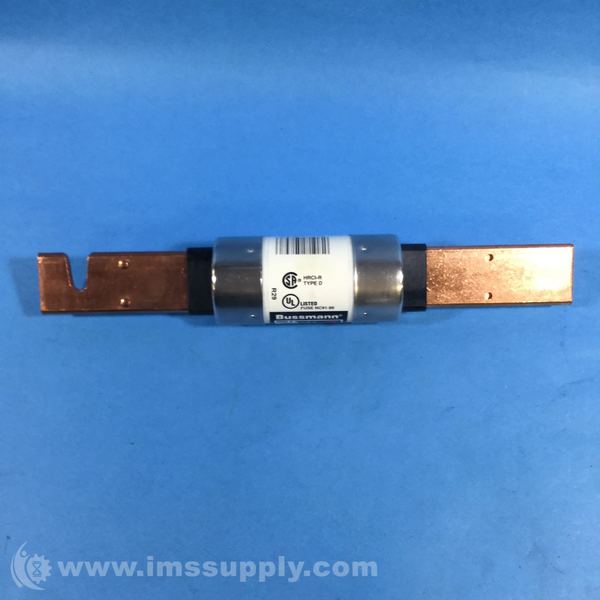

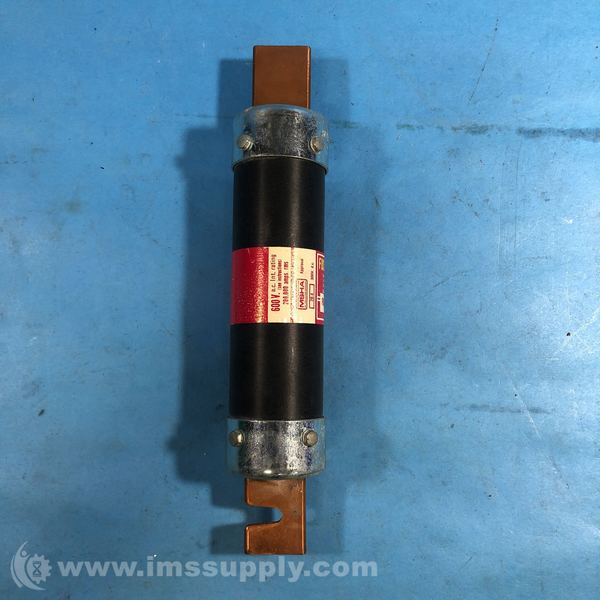

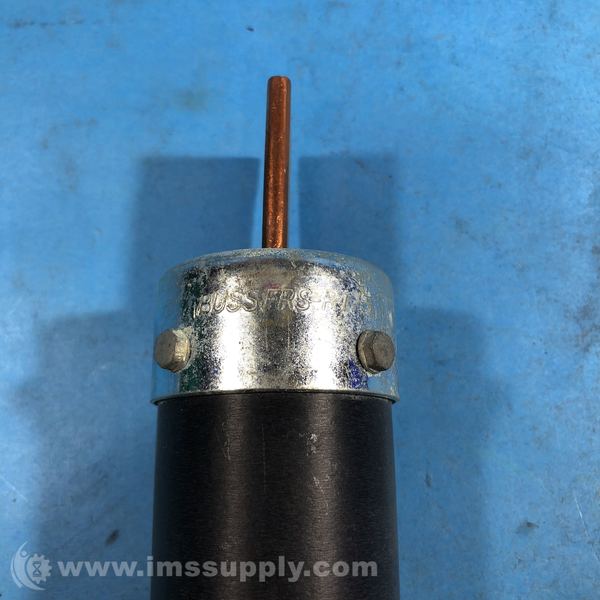

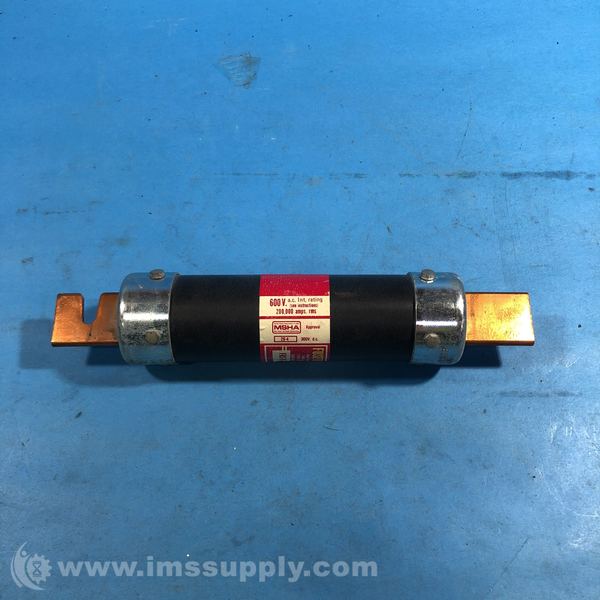

Bussmann FRS-R-175 Fuse
175A, 600V AC, Class RK5, Time-Delay Fuse
Specifications
- Amps: 175
- Volts AC: 600
- UL Class: RK5
- Physical Size: 1.61" x 9.63"
- AC Voltage Rating: 600
- Interrupting Rating: 200,000 AIC RMS
- Time Delay: 10 Sec (At 500 Percent Rated Load)
- Voltage: 600 Vac/300 Vdc
- Terminal Type: Blade
- Diameter: 1.84 Inch
- Length: 9.63 Inch
- Series: FRS-R
- Body Material: Fiberglass
- Current Limiting: Current Limiting
- DC Voltage Rating: 300 V DC
- Element: Dual
- Fuse Body Style: Blade
- Fuse Class or Type: RK5
- Interrupt Rating - AC: 200 kA
- Interrupt Rating - DC: 20 kA
- Speed: Time-Delay
- Standards: CE; CSA Certification Class 1422-01; UL 248-12 Guide JDDZ

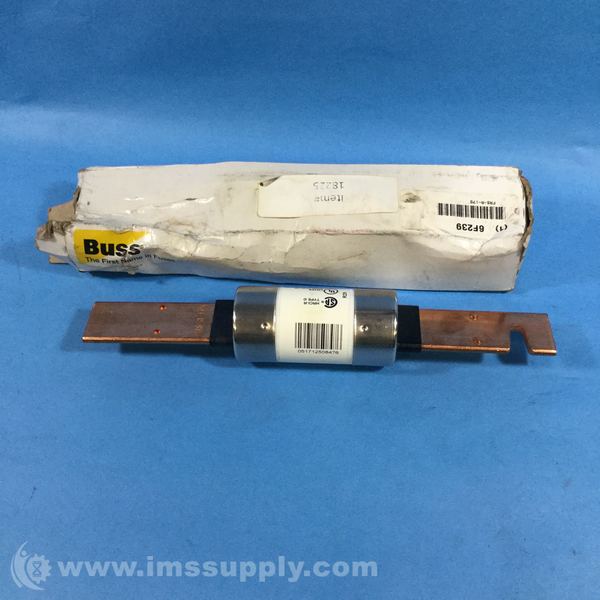

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 26 minutes.
