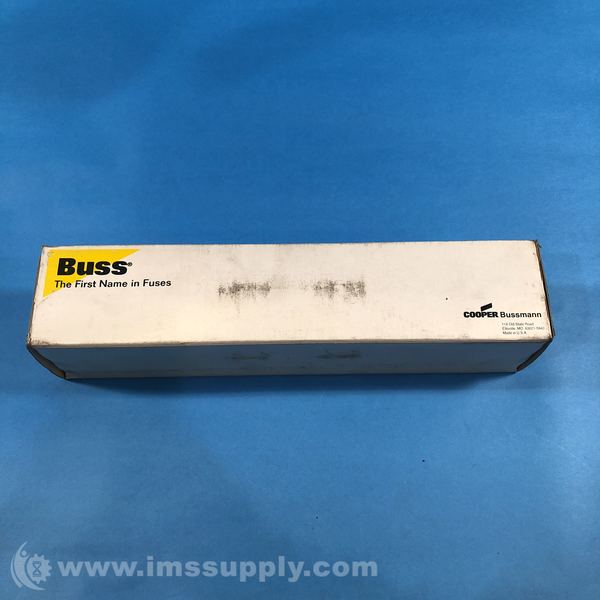

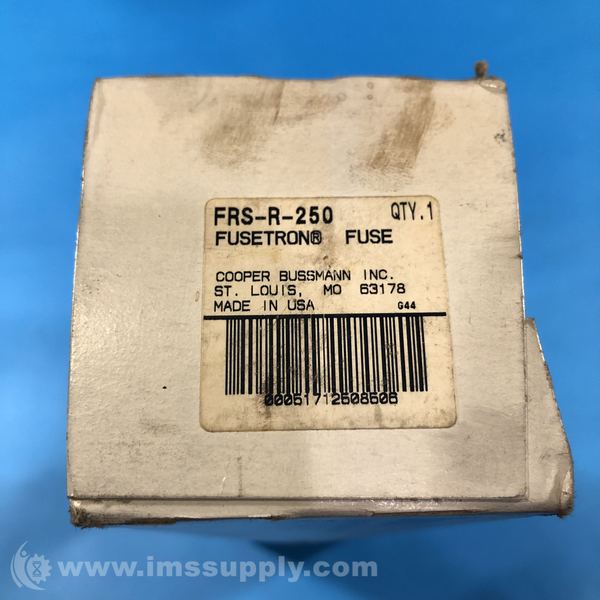

BUSSMANN FRS-R-250 TIME DELAY FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: FRS-R-250
IMS Product Code: 1864982
Packaging: Sold Individually
Description:
Bussmann FRS-R-250 Time Delay Fuse
Bussmann Fusetron FRS-R-250 Current Limiting Renewable Time Delay Fuse, 250 A, 600 VAC/300 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body
Specifications
- Amps: 250 A
- AC Voltage Rating: 600V AC
- DC Voltage Rating: 300V DC
- Class: RK5
- Speed: Time Delay
- Body Style: Cartridge
- Fits Fuse Block Style: Rejection
- Interrupt Rating: 200kA at 600V AC; 20kA at 300V DC
- Fuse Size: 11-5/8 in L x 2-11/32 in dia
- Length: 11-5/8 in
- Diameter: 2-11/32 in
- Visual Indication: Nonindicating
- Body Material: Fiberglass
- Element: Dual
- Standards: CE; CSA Certification Class 1422-01; UL 248-12 Guide JDDZ
- Series: FRS-R
- Type: Current Limiting Renewable
- Response Time: 10 s at 500%
- Terminal Type: Blade
- Mounting Type: Holder
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 32 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 15 In Stock
Ships today if ordered in the next 1 hours and 32 minutes.
