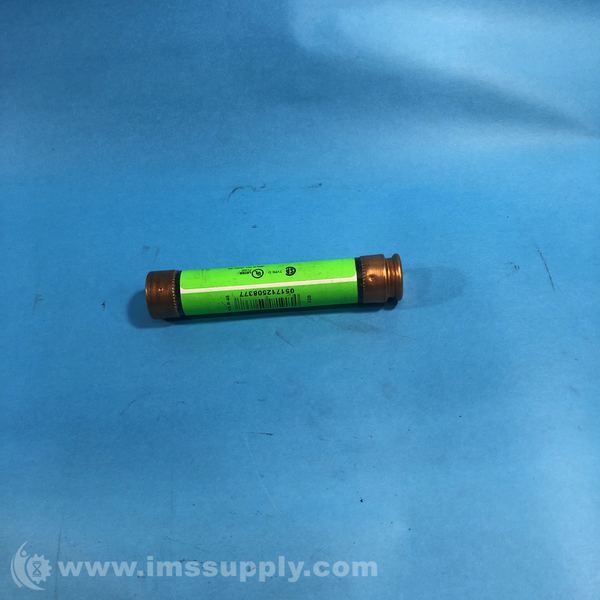

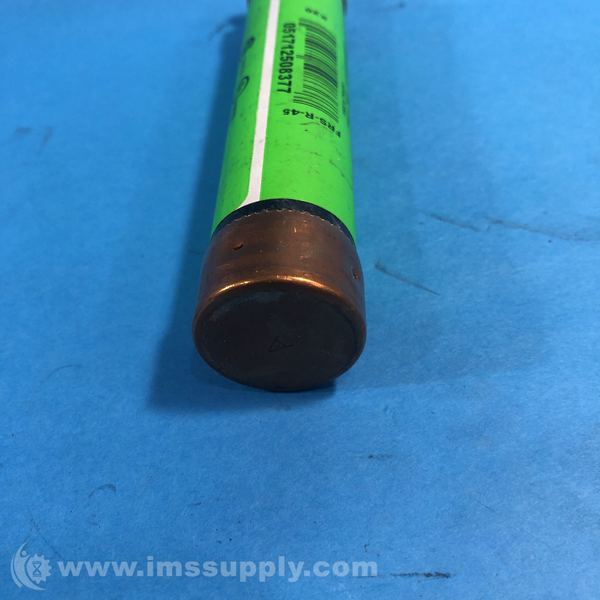

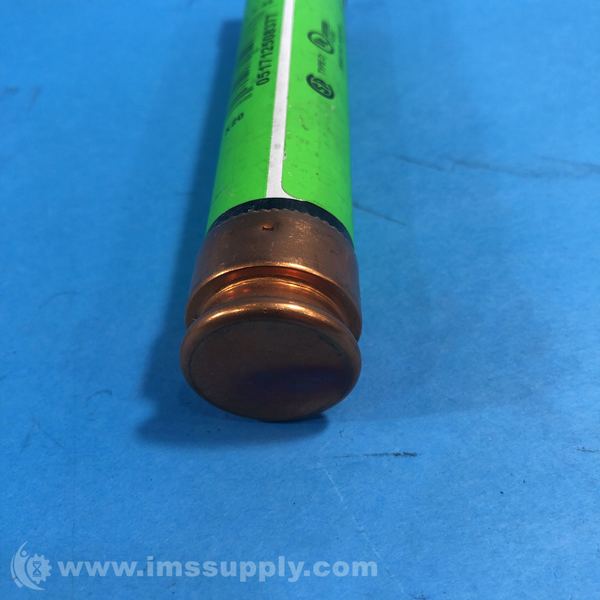

BUSSMANN FRS-R-45 DUAL ELEMENT TIME DELAY FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: FRS-R-45
IMS Product Code: 378725
Packaging: Sold Individually
Description:
Bussmann FRS-R-45 Dual Element Time Delay Fuse
45A, 600V AC, UL Class RK5, Dual Element, Time Delay Fuse
Specifications
- Series: FRS-R
- UPC: 051712508377
- Ampere: 45
- UL Class: RK5
- Time Delay: 10 sec
- Maximum Voltage: 600V
- Interrupting Rating: 200 kA
- Physical Size: 1.06" x 5.5"
- AC Voltage Rating: 600V
- Interrupting Rating (DC): 20 kAIC @ 300 Vdc
- Type: Dual-Element, Time-Delay Fuse
- Class: Class RK5
- Maximum AC Voltage (V AC): 600
- Maximum DC Voltage (V DC): 300
- Amperage Rating (A): 45
- Construction: Fiberglass Tube
- Diameter: 1.06"
- Length: 5.5"
- Standard: CE, Std. 248-12, Class RK5, UL Listed, Guide JDDZ, File E4273, CSA Certified, Class 1422-02, File 53787
- Body Material: Fiberglass
- Mount: Clip, Holder
- Number of Pins: 2
- Weight: 136.077711 g
- Current Rating: 45 A
- Max Voltage Rating (AC): 600 V
- Voltage Rating (AC): 600 V
- Voltage Rating (DC): 250 V
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 12 In Stock
Ships today if ordered in the next 1 hours and 29 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 12 In Stock
Ships today if ordered in the next 1 hours and 29 minutes.
