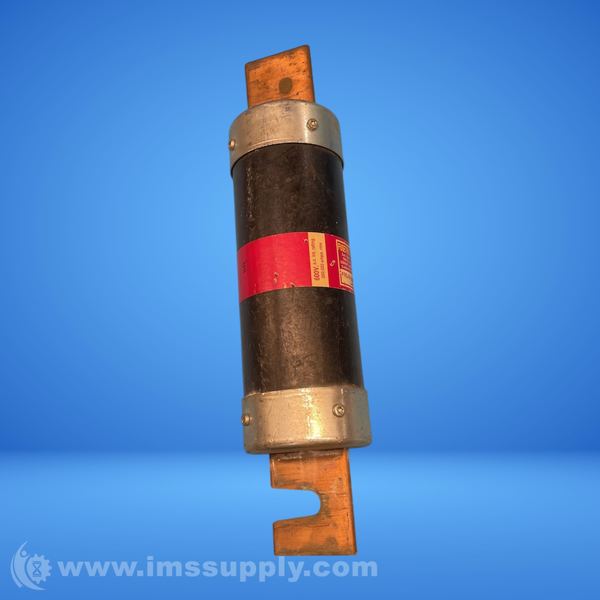

BUSSMANN FRS-R-500 500A FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: FRS-R-500
IMS Product Code: 2146404
Packaging: Sold Individually
Description:
Bussmann FRS-R-500 500A Fuse
Dual Element Time Delay Fuse, Class RK5, 500A, 200kA @ 600VAC / 20kA @ 300VDC
Specifications
- Amperage Rating: 500 A
- Maximum AC Voltage: 600 V
- Maximum DC Voltage: 300 V

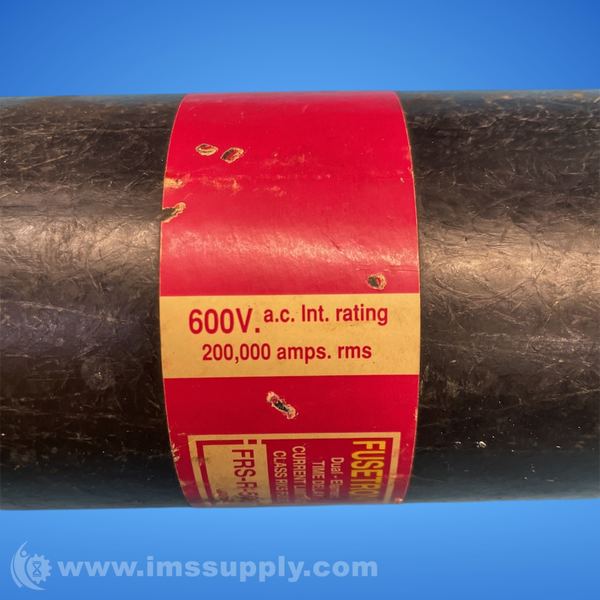

- Interrupting Rating @ 600VAC: 200 kA
- Interrupting Rating @ 300VDC: 20 kA
- Class: RK5
- Time Delay: 10 seconds at 500% rated amps
- Construction: Fiberglass Tube
- Diameter: 2.88 in
- Length: 13.38 in
- Material: Copper
- Terminal Type: Blade
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 32 minutes.
