BUSSMANN FRS-R-7 TIME DELAY FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: FRS-R-7
IMS Product Code: 378734
Packaging: Sold Individually
Description:

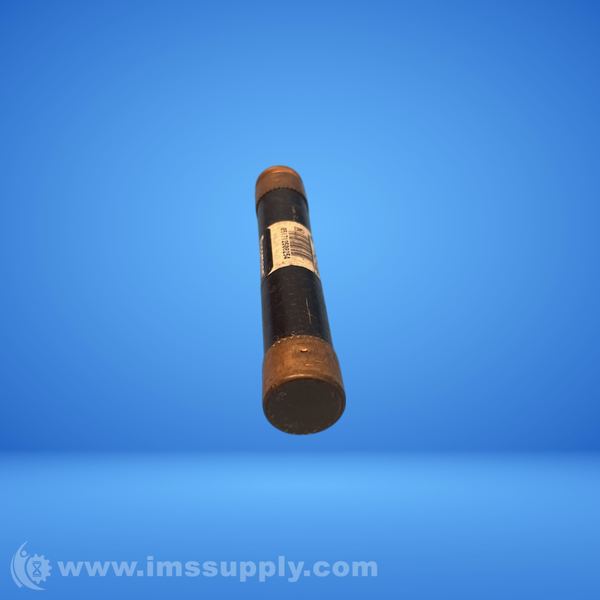

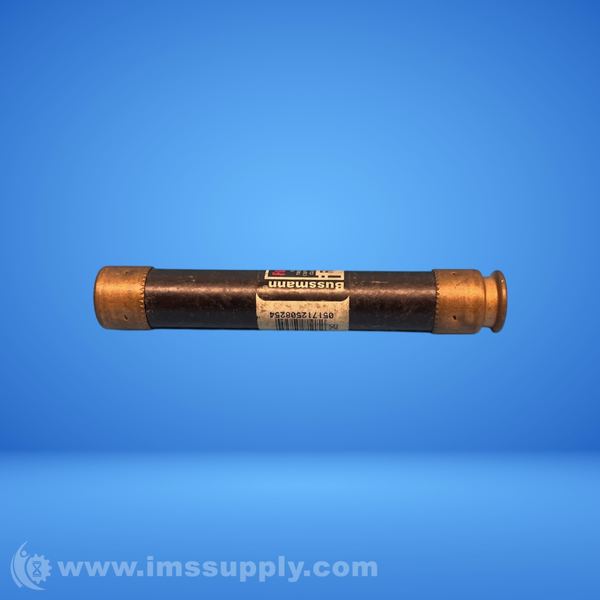

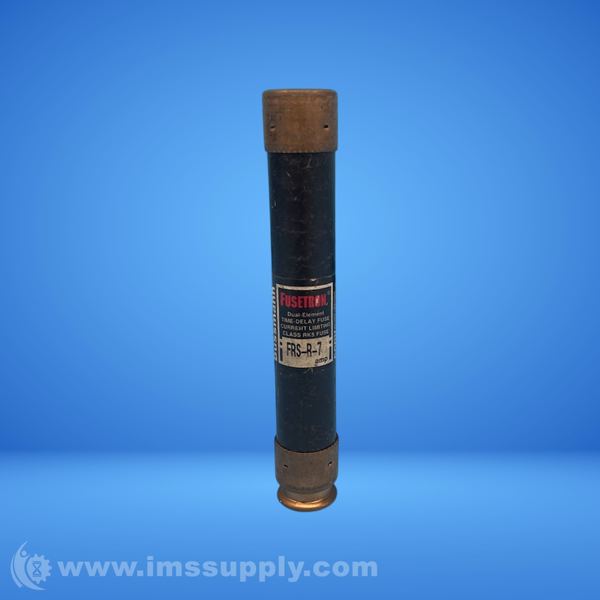

Bussmann FRS-R-7 Time Delay Fuse
Dual element, time-delay fuse, Class RK5, 7A, 600V AC, 300V DC
Specifications
- Class: RK5
- Time Delay: 10 Sec (At 500 Percent Rated Load)
- Voltage: 600 Vac/300 Vdc
- Current: 7 Ampere
- Interrupting Rating: 200000 Ampere (Symmetrical) 20000 Ampere (Dc)
- Terminal Type: Ferrule
- Diameter: 0.81 Inch
- Length: 5 Inch
- Approvals: UL 248-12 CSA CE
- Brand: Fusetron[R]
- Model: FRS-R
- Current Limiting: Yes
- Series: FRS-R
- AC Voltage Rating: 600 V AC
- Body Material: Fiberglass
- Current Rating: 7 A
- DC Voltage Rating: 300 V DC
- Element: Dual
- Fuse Body Style: Cylindrical
- Fuse Class or Type: RK5
- Interrupt Rating - AC: 200 kA
- Interrupt Rating - DC: 20 kA
- Overall Diameter: 13/16 in
- Overall Length: 5 in
- Speed: Time-Delay
- Standards: CE; CSA Certification Class 1422-01; UL 248-12 Guide JDDZ
- Visual Indication: Non-Indicating
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 1 hours and 29 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 29 minutes.
