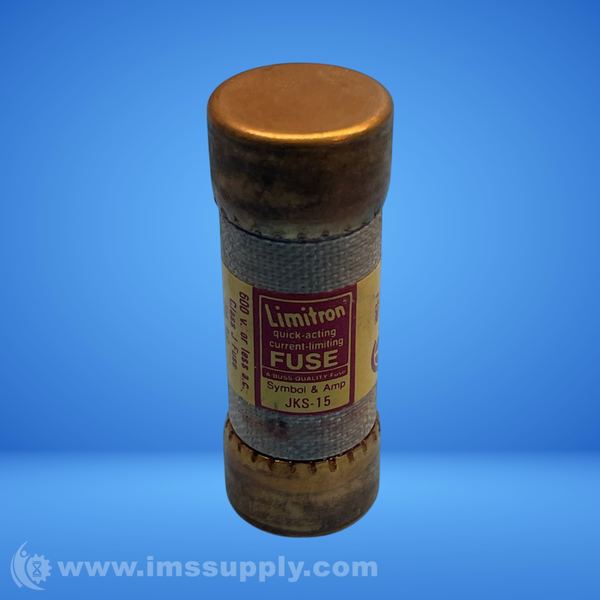

BUSSMANN JKS-15 FAST ACTING FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: JKS-15
IMS Product Code: 2150008
Packaging: Box of 10
Sold Individually
Box of 10
Description:
Bussmann JKS-15 Fast Acting Fuse
Fast acting current limiting fuse, 15A, 600V AC, Class J, cylindrical body, non-indicating, ferrule end connections
Specifications
- Amps: 15
- Volts AC: 600
- Type: Quick Acting
- Current Limiting: Yes
- Physical Size: 0.81" x 2.25"
- AC Voltage Rating: 600 V AC
- Interrupting Rating: 200,000 AIC RMS @ 600VAC
- UL Class: J Fuse
- UL Listed: Std. 248-8, Class J, Guide JDDZ, File E4273
- CSA Certified: C22.2 No. 248.8, Class 1422-02, File 53787
- DC Voltage Rating: 200
- Family: LIMITRON
- AIC Ratings: 200kA@600V
- Dimensions (HxWxD): 2.25 x 0.81 x 0.81
- Body Material: Melamine
- Fuse Body Style: Cylindrical
- Fuse Class or Type: J
- Interrupt Rating - AC: 200 kA
- Overall Diameter: 13/16 in
- Overall Length: 2-1/4 in
- Speed: Fast-Acting
- Standards: CE/UL-248-8 Guide JDDZ/CSA Class 1422-02
- Visual Indication: Non-Indicating
New - Open Box (Special):
Box of 9 remaining.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 12 minutes.
