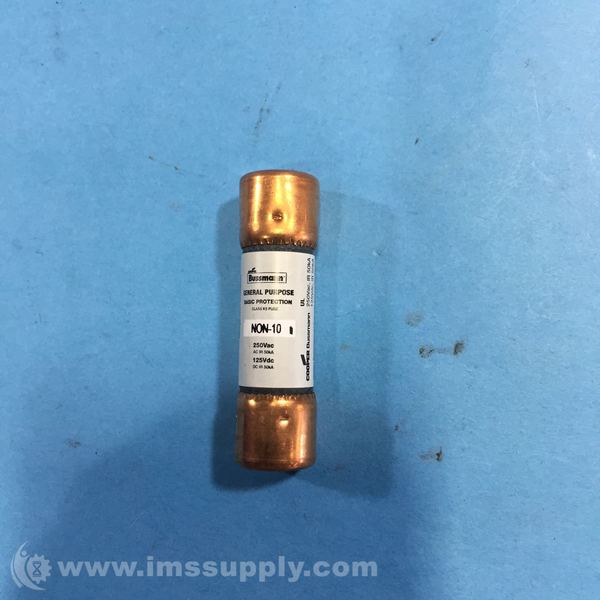

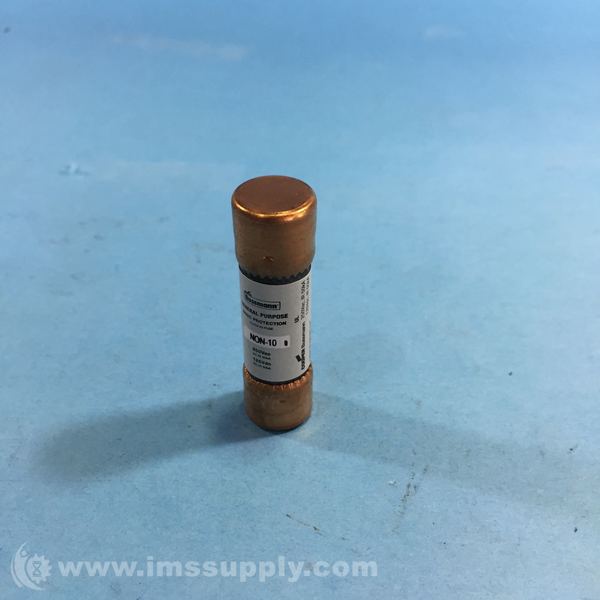

BUSSMANN NON-10 FAST ACTING FUSE
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: NON-10
IMS Product Code: 379766
Packaging: Sold Individually
Sold Individually
Box of 10
Description:
Bussmann NON-10 Fast Acting Fuse
Fast acting cylindrical fuse, 10A, 250V AC, 125V DC, K5 class
Specifications
- AC Voltage Rating: 250 V AC
- Amperage Rating: 10
- Blow Characteristic: One Time
- Body Material: Melamine
- Catalog / Class: K5
- Current Rating: 10 A
- DC Voltage Rating: 125 V DC
- Dimensions: 13x50mm
- Element: Single
- Fuse Body Style: Cylindrical
- Fuse Class or Type: K5
- Fuse Size Imperial: 0.56" x 2"
- Fuse Size Metric: 14.3mm x 50.8mm
- Interrupt Rating - AC: 50 kA
- Interrupt Rating - DC: 50 kA
- Overall Diameter: 9/16 in
- Overall Length: 2 in
- Renewable: No
- Series: NON
- Speed: Fast-Acting
- Standards: CE; CSA Certified Class 1421-01; File 53787; File E4274; Guide JDDZ; STD 248-9; UL Listed
- Visual Indication: Non-Indicating
- Voltage: 250
- Voltage Rating VAC: 250V
- Voltage Rating VDC: 125V
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
Ships today if ordered in the next 15 hours and 21 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
Ships today if ordered in the next 15 hours and 21 minutes.
