BUSSMANN PDBFS500 POWER DISTRIBUTION BLOCK
Quick Overview
Manufactured By: BUSSMANN
Manufacturer Part Number: PDBFS500
IMS Product Code: 379984
Packaging: Sold Individually
Description:

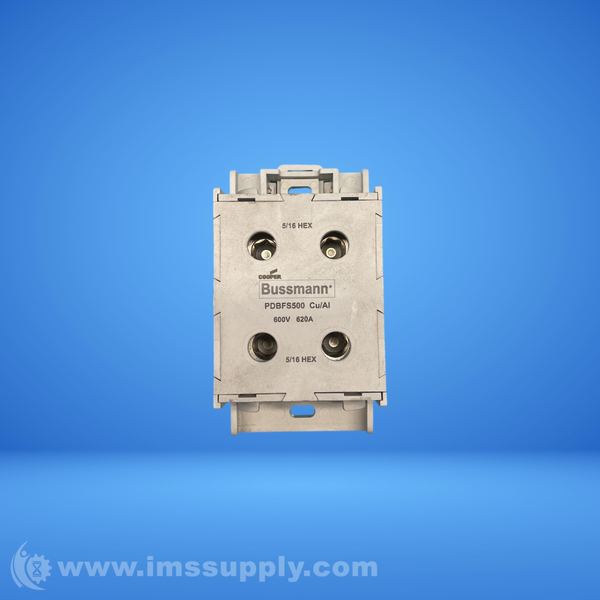

Bussmann PDBFS500 Power Distribution Block
1-pole power distribution block rated for 600V AC/DC and 620A, with lug connections for 4 AWG to 350 kcmil wire, made of tin-plated aluminum, finger-safe design, DIN rail or surface mountable
Specifications
- Amperage Rating: 620 A
- Voltage Rating: 600 VAC/VDC
- Number of Poles: 1
- Wire Size: 4 AWG to 350 kcmil
- Material: Aluminum
- Finish: Tin Plated
- Mounting Type: DIN-Rail; Surface Mount
- Short Circuit Current Rating: 200 kA
- Dimensions: 5 in L x 3 in W x 2.5 in H
- Protection Rating: IP20
- Color: White
- Standards: UL 1953, CSA Certified, CE Component IEC
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
