CKD M8000-20-W-F1MS OIL MIST FILTER
Quick Overview
Manufactured By: CKD
Manufacturer Part Number: M8000-20-W-F1MS
IMS Product Code: 2123343
Packaging: Sold Individually
Description:

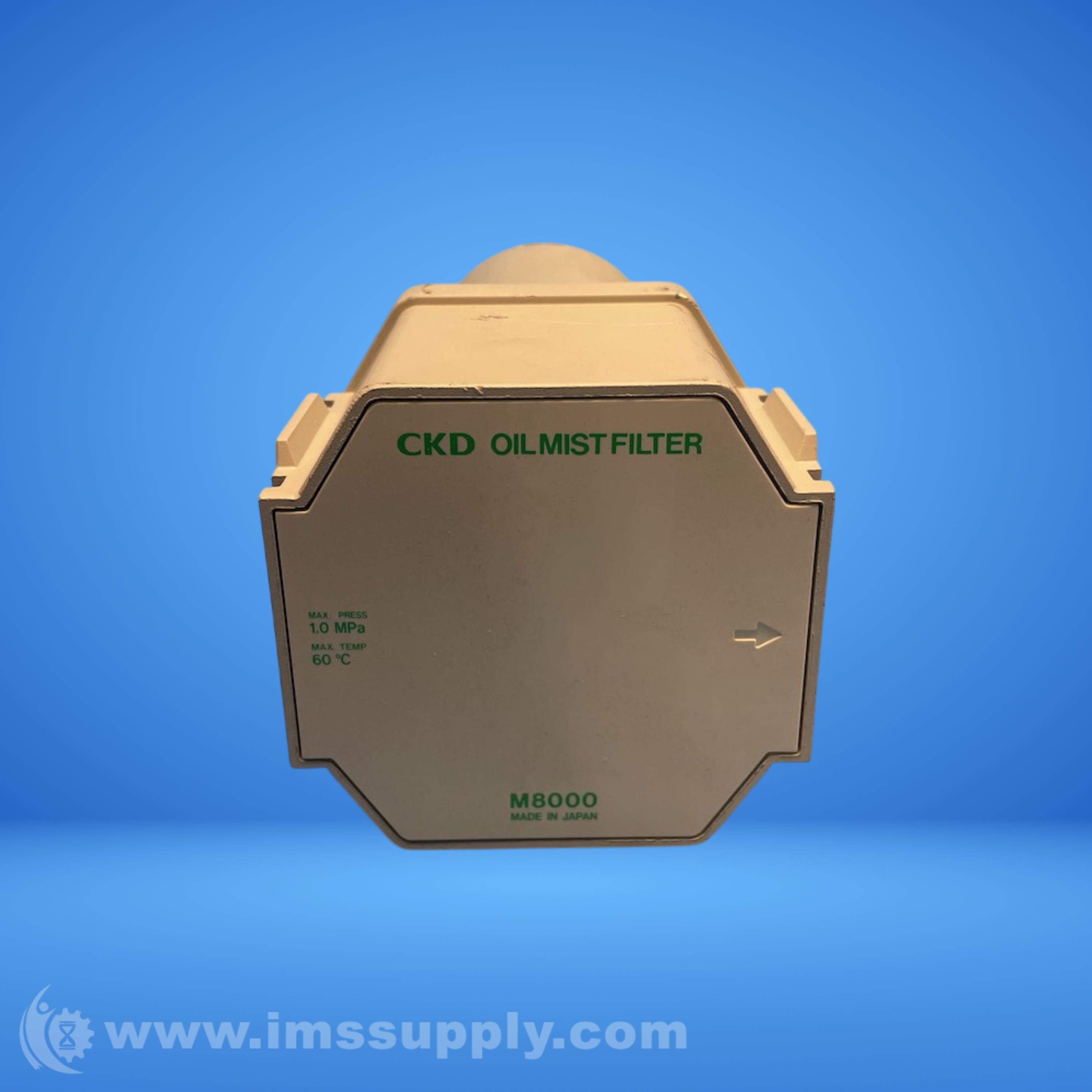

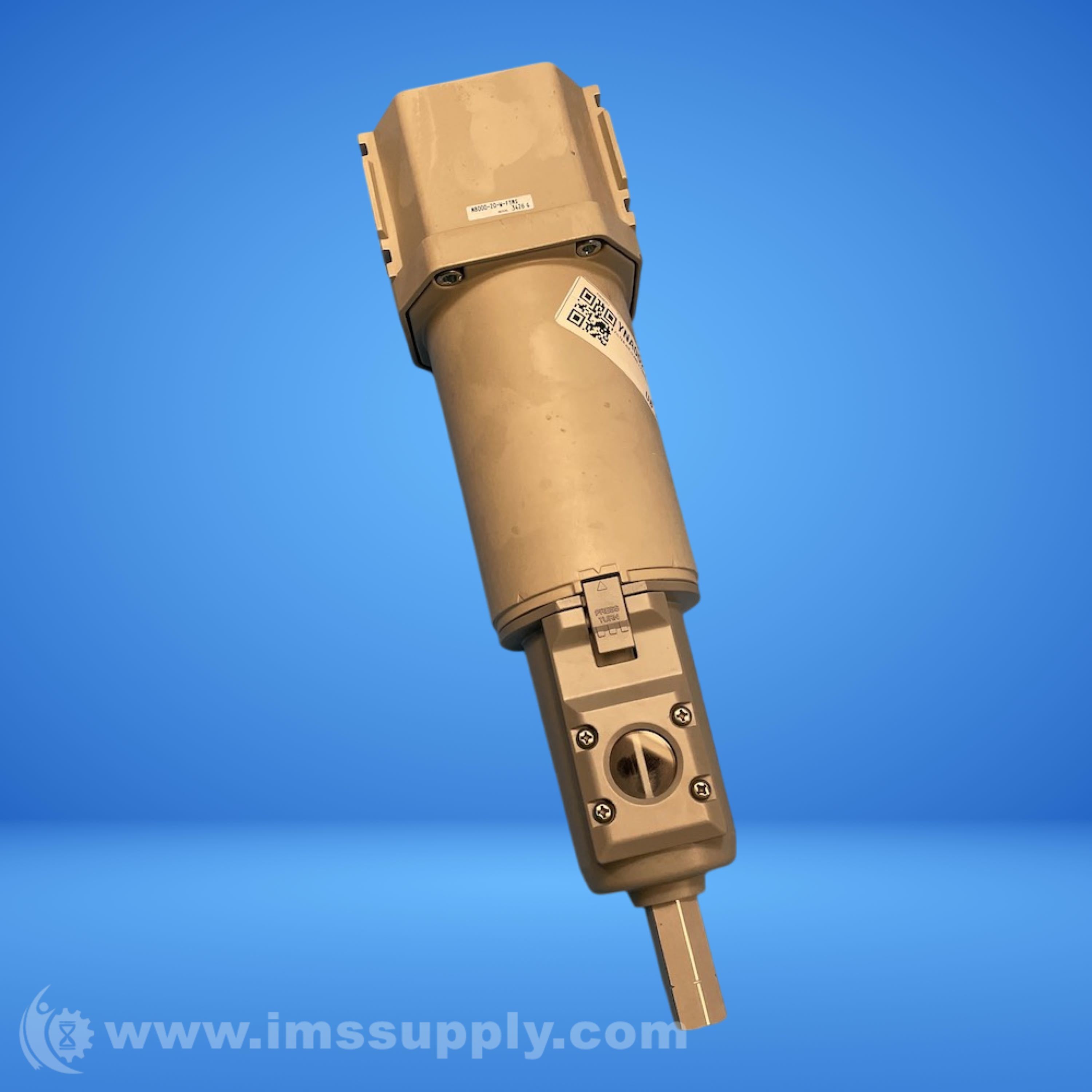

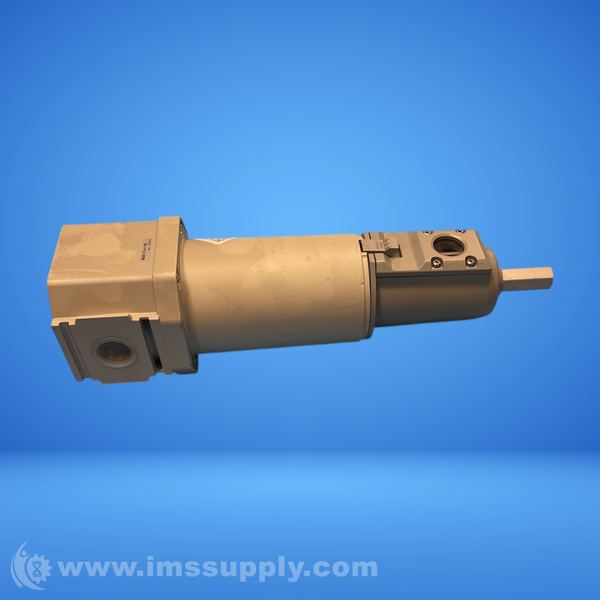

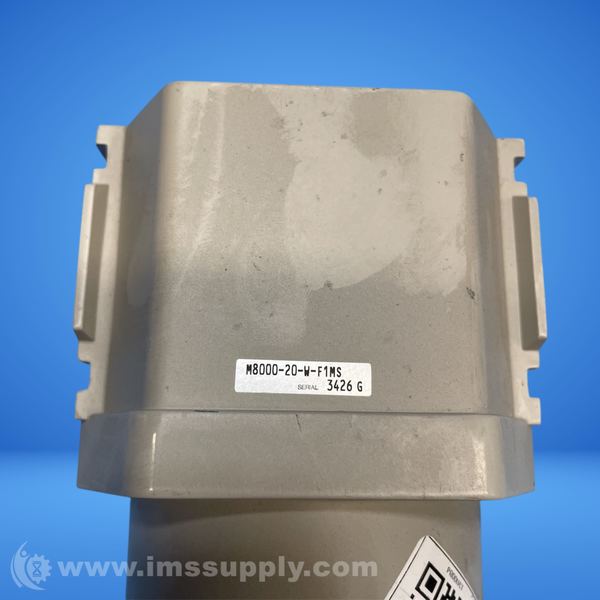

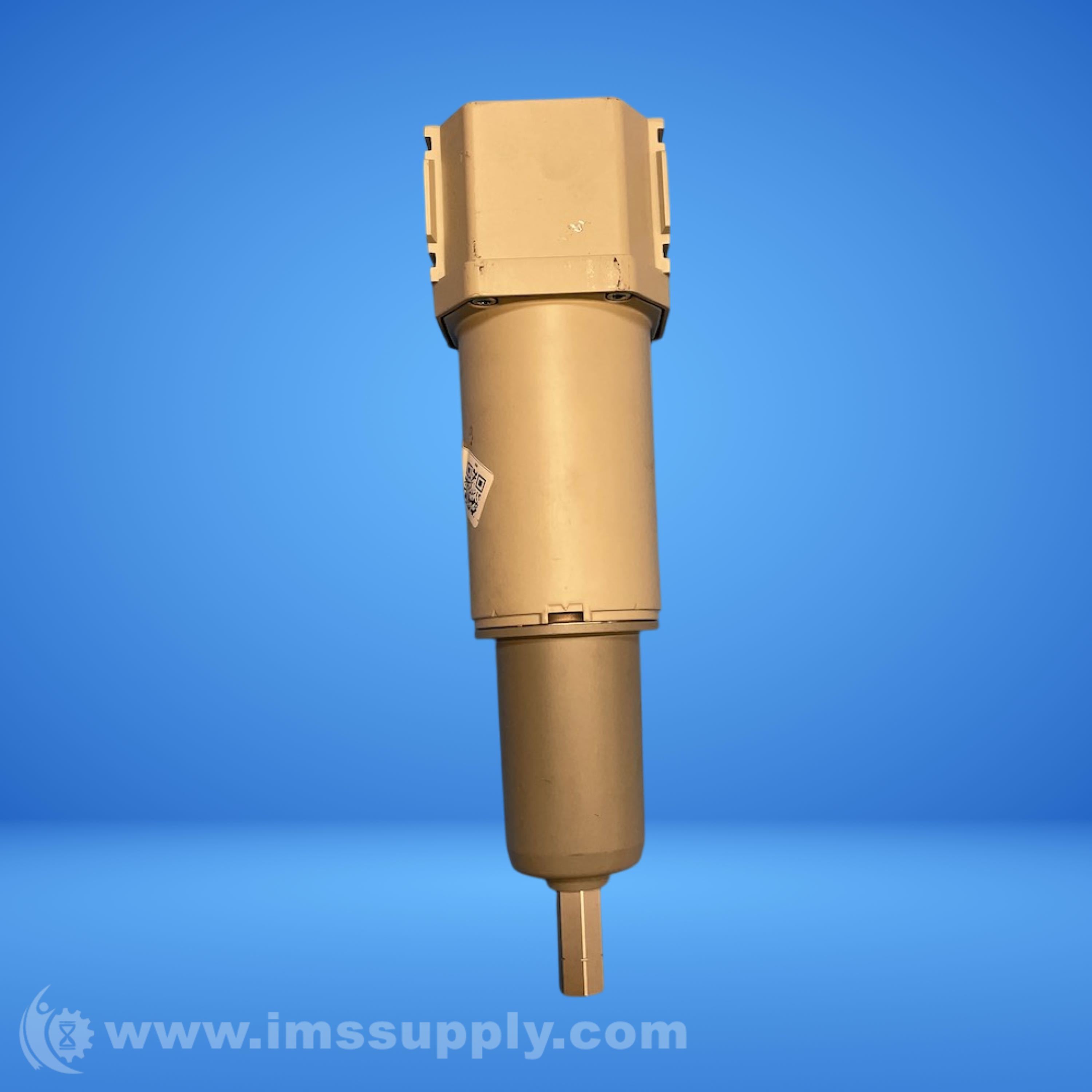

CKD M8000-20-W-F1MS Oil Mist Filter
CKD M8000-20-W-F1MS oil mist filter is designed for compressed air systems. It features a modular design with a body made of aluminum alloy die-cast and a bowl assembly made of polycarbonate resin, polyacetal resin, and urethane resin. The filter has a filtration degree of 0.01µm nominal value and a maximum handling flow rate of 2600 L/min (ANR).
Specifications
- Fluid Used: compressed air
- Working Pressure Range: 0.1 - 1.0 MPa
- Guaranteed Pressure: 1.5 MPa
- Drain Storage Capacity: 28.3 cubic inches (80 cubic cm)
- Connection Diameter: Rc3/4 (1 1/4 use adapter)
- Maximum Handling Flow Rate: 2600 L/min (ANR)
- Usable Temperature Range: 5-60°C
- Filtration Degree: 0.01µm (nominal value)
- Secondary Oil Concentration: less than 0.01 mg/cubic meter
- Max Pressure: 1.0 MPa
- Max Temperature: 60 degrees C
