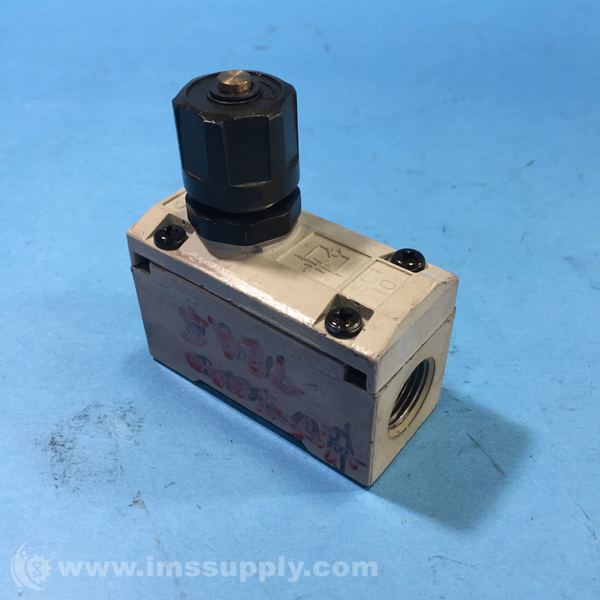

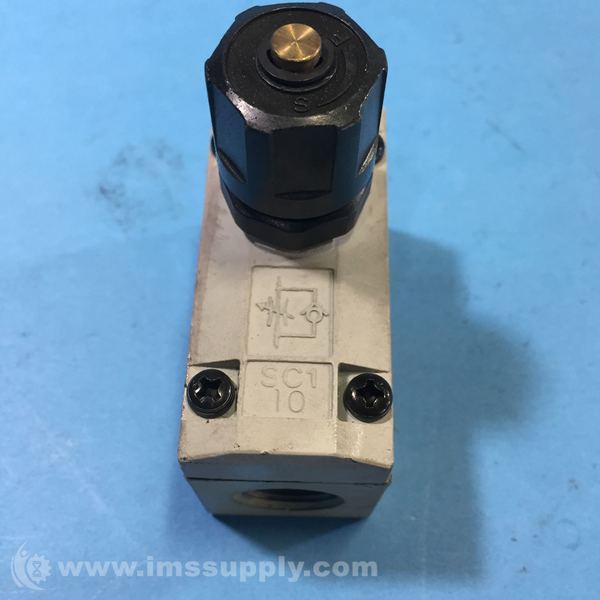

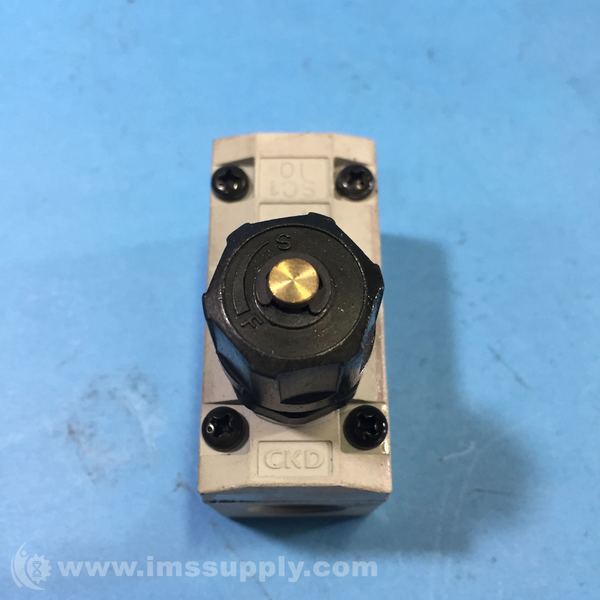

CKD SC1-10 SPEED CONTROL VALVE
Quick Overview
Manufactured By: CKD
Manufacturer Part Number: SC1-10
IMS Product Code: 1867635
Packaging: Sold Individually
Description:
CKD SC1-10 Speed Control Valve
Inline speed controller medium bore size, Mountable from either the bottom or the side, Adjusting dial with dislocation prevention.
Specifications
- Type: Speed Controller Medium Bore Size
- Working fluid: Compressed air
- Max. working pressure: 1.0 Mpa (150 psi, 10 bar)
- Proof pressure: 1.5 Mpa (220 psi, 15 bar)
- Fluid temperature: 5 (41�F) to 60 (140�F)
- Port size: Rc 3/8
- Weight: 205 g
- Cylinder bore size: �50 to �140
- Dial value (needle position): 10
- Free flow rate: 2600 �min(ANR)
- Controlled flow rate: 1500 �min(ANR)
