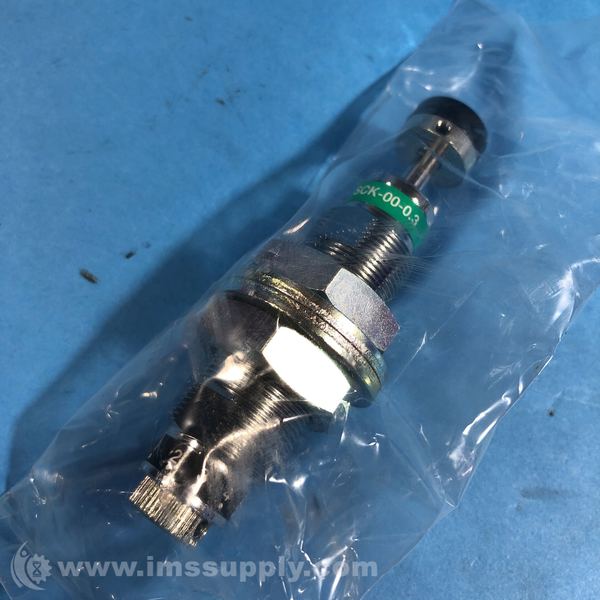

CKD SCK-00-0.3 ADJUSTABLE SHOCK ABSORBER
Quick Overview
Manufactured By: CKD
Manufacturer Part Number: SCK-00-0.3
IMS Product Code: 1977152
Packaging: Sold Individually
Description:
CKD SCK-00-0.3 Adjustable Shock Absorber
CKD SCK Series Adjustable Shock Absorber with constant resistance throughout the stroke. Resistance can be shifted to high or low by adjusting, so collision energy can be absorbed appropriately.
Specifications
- Max. energy absorption: 2.94 J
- Type / Classification: Spring return with an adjuster
- O.D thread size: M20 x 1.0
- Stroke length: 10 mm
- Max. absorbed energy: 8.1 kJ/hr
- Max. colliding speed: 1.0 m/s
- Max. operating frequency: 45 Cycle/min
- Ambient temperature: -10 degrees C to 80 degrees C
- Max. load: 540 N
- Weight: 0.2 kg
- Return spring force (extended): 5.9 N
- Return spring force (compressed): 11.3 N
- A: 94.6 mm
- B: 5.8 mm
- C: 66.8 mm
- E: 11.0 mm
- F: 8.0 mm
- G: 2.9 mm
- H: 27 mm
- I: 16 mm
- J: M20x1.0
- K: 13.5 mm
- L: 33 mm
- M: 33.5 mm
- N: 45.7 mm
- d: 5.0 mm
- HA: 17.0 mm
- ZA: 17.5 mm
- ZB: 16.0 mm
- P: 52 mm
- Q: 38 mm
- S: 6.5 mm
- T: 6.0 mm
- U: 32.5 mm
- V: 15 mm
- W: 26 mm
- X: 21 mm
- Y: 24 mm
