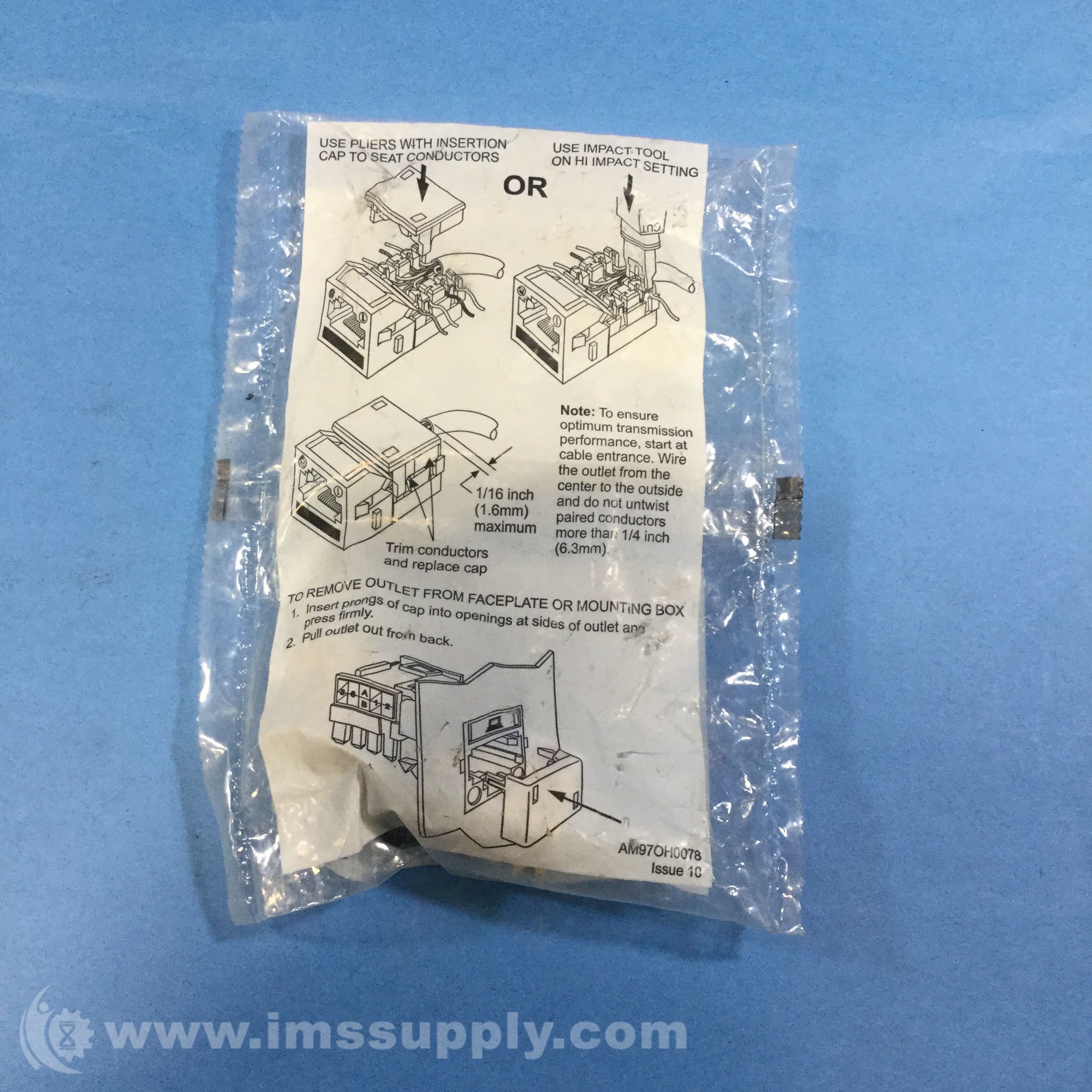

COMMSCOPE CC0020826/1 CAT6 UNSHIELDED MODULAR JACK
Quick Overview
Manufactured By: COMMSCOPE
Manufacturer Part Number: CC0020826/1
IMS Product Code: 1787685
Packaging: Sold Individually
Description:
Commscope CC0020826/1 Cat6 Unshielded Modular Jack
Category 6 unshielded modular jack for networking applications. Black color. Supports T568A and T568B wiring.
Specifications
- ANSI/TIA Category: 6
- Cable Type: Unshielded
- Color: Black
- Conductor Type: Solid | Stranded
- Termination Type: IDC
- Wiring: T568A | T568B
- Height: 20.32 mm | 0.8 in
- Width: 20.32 mm | 0.8 in
- Depth: 30.48 mm | 1.2 in
- Compatible Conductor Gauge, solid: 22 AWG | 24 AWG
- Compatible Conductor Gauge, stranded: 22 AWG | 23 AWG | 24 AWG
- Contact Resistance, maximum: 100 mOhm
- Current Rating at Temperature: 1.5 A @ 20 degrees C | 1.5 A @ 68 degrees F
- Dielectric Withstand Voltage, RMS, contact-to-contact: 1,000 Vac @ 60 Hz
- Material Type: Copper alloy | High-impact, flame retardant, thermoplastic
- Number of Ports: 1
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
