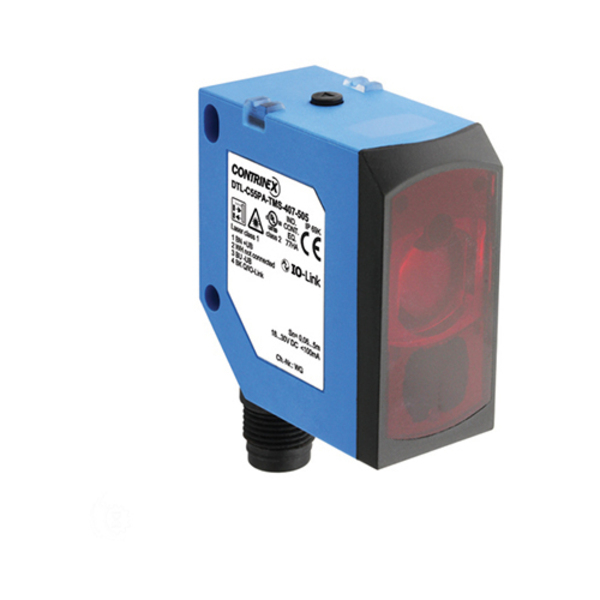

CONTRINEX DTL-C55PA-TMS-407-505 ANALOG AND DISTANCE MEASURING SEN
Starting At: $324.33
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: DTL-C55PA-TMS-407-505
IMS Product Code: 1783976
Packaging: Sold Individually
Description:
Contrinex DTL-C55PA-TMS-407-505 Long Range Analog And Distance Measuring Sensor
Specifications
| Operating principle | Distance diffuse |
|---|---|
| Linearity | ± 30 mm |
| Light source | Laser class 1, red 655 nm |
| Housing size [mm] | 50 x 50 (C55) |
| Sensitivity adjustment | Teach button/input |
| Polarity | PNP/NPN auto-detect |
| Output | Light-on/Dark-on/IO-Link + Teach input |
| Interface | IO-Link |
| Connection | M12 4-pin |
| Supply voltage | 18...30 VDC |
| Switching frequency max. [Hz] | 500 |
| Housing material | ABS |
| Temperature range | -40...60 °C |
| Enclosure rating (IP) | IP 67/IP 69K |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
