CONTRINEX LLR-M18PA-NMS-101 BARREL PHOTOELECTRIC SENSOR
Starting At: $44.37
Quick Overview
Manufactured By: CONTRINEX
Manufacturer Part Number: LLR-M18PA-NMS-101
IMS Product Code: 1783380
Packaging: Sold Individually
Description:

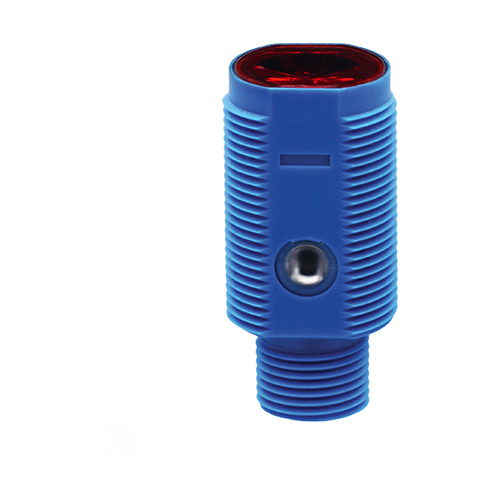

Contrinex LLR-M18PA-NMS-101 Through Beam Barrel Photoelectric Sensor
Specifications
| Operating principle | Through-beam |
|---|---|
| Sensing range typ. Max. | 0…30000 mm |
| Light source | LED, red 630 nm |
| Housing size [mm] | M18 |
| Sensitivity adjustment | No |
| Polarity | NPN |
| Output | Light-on + Dark-on |
| Interface | Standard output |
| Connection | M12 4-pin |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 1000 |
| Housing material | ABS |
| Temperature range | -25...65 °C |
| Enclosure rating (IP) | IP 67 |
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 30 Days
