CORBIN RUSSWIN ML2053LWA626 MORTISE LOCK
Quick Overview
Manufactured By: CORBIN RUSSWIN
Manufacturer Part Number: ML2053LWA626
IMS Product Code: 2165853
Packaging: Sold Individually
Description:
Corbin Russwin ML2053LWA626 Mortise Lock
Grade 1 mortise lock with LW lever and A rose
Specifications
- Door Thickness: 1-3/4" (44mm)
- Backset: 2-3/4" (70mm)

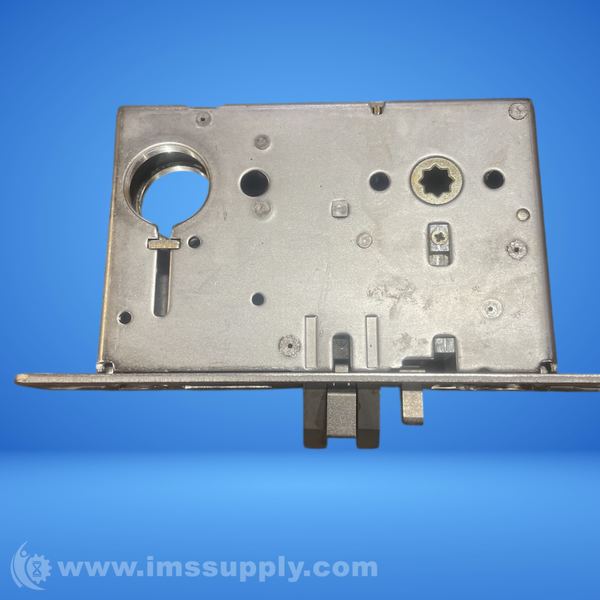

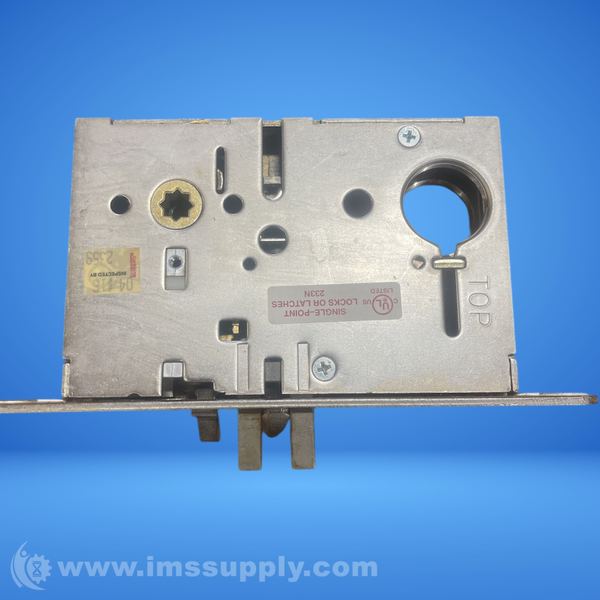

- Lockcase: Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm)
- Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm)
- Armored Front: Wrought brass, bronze or stainless steel
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4"(19mm) throw
- Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking
- Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw
- Hub Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm)

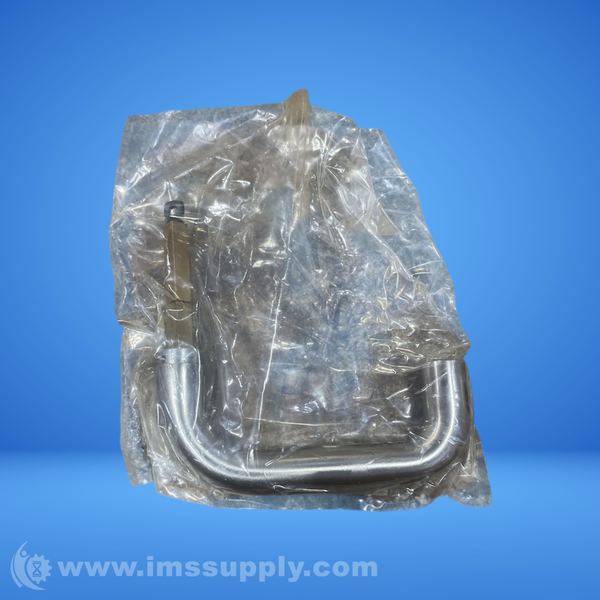

- Lever: steel, 5/16" (8mm)
- Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm)
- Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard
- Cylinder: Brass, 6-pin, L4 keyway standard
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 12 hours and 1 minutes.
