CORBIN RUSSWIN ML2053 LWN 613 MORTISE LOCK
Quick Overview
Manufactured By: CORBIN RUSSWIN
Manufacturer Part Number: ML2053LWN613
IMS Product Code: 2165818
Packaging: Sold Individually
Description:
Corbin Russwin ML2053 LWN 613 Mortise Lock
Grade 1 mortise lock with LW lever, N escutcheon, Oil Rubbed Bronze finish.
Specifications
- Base Material: Bronze
- Finish: 613/US10B
- Grade: Grade 1
- Series: ML2000 Series
- Function: Entrance or Office
- Hand: Field Reversible
- Door Thickness: 1-3/4 inches (44mm)
- Backset: 2-3/4 inches (70mm)
- Lockcase: Heavy-gauge chrome plated steel, 5-7/8 inches (149mm) x 4 inches (102mm) x 15/16 inches (24mm)
- Front: Heavy-gauge steel, 8 inches (203mm) x 1-1/4 inches (32mm) x -3/32 inches (2mm)
- Armored Front: Wrought brass, bronze or stainless steel
- Latchbolt: 2-piece mechanical with anti-friction insert, 5/8 inches (16mm) x 1 inch (25mm) x 3/4 inches (19mm) throw
- Auxiliary Latchbolt: 9/16 inches (14mm) effective throw and 3/8 inches (10mm) effective auxiliary latch deadlocking
- Deadbolt: One-piece stainless steel, 19/32 inches (15mm) x 1-1/4 inches (32mm) x 1 inch (25mm) throw
- Hub Knob: Stainless steel, 9/32 inches (7mm) x 9/32 inches (7mm)
- Lever: Steel, 5/16 inches (8mm)
- Spacing: C. to c. knob/lever to cylinder: 3-5/8 inches (92mm). C. to c. knob/lever to thumbturn: 2-7/16 inches (62mm)
- Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8 inches (124mm) x 1-1/4 inches (32mm) x 1-1/8 inches (29mm) lip to center
- Cylinder: Brass, 6-pin, L4 keyway standard
- Keys: Two nickel silver standard
- Keying Features Available: Master keying, Construction master keying

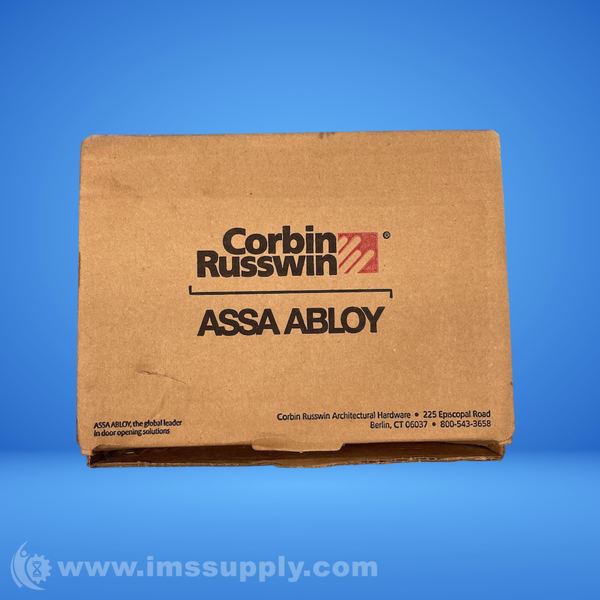

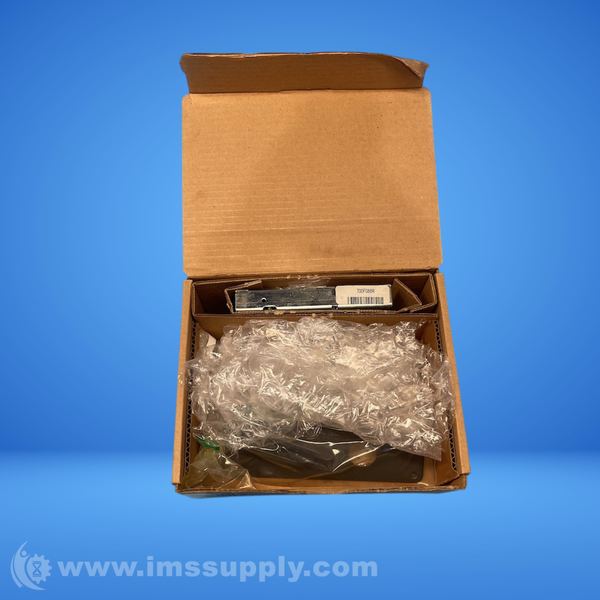

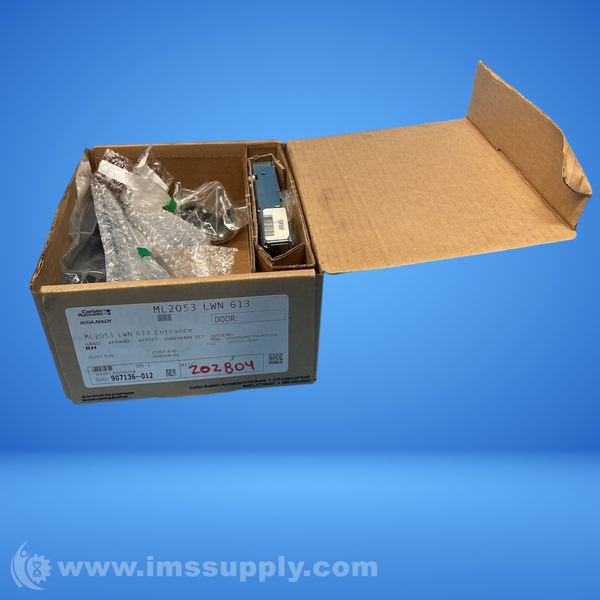

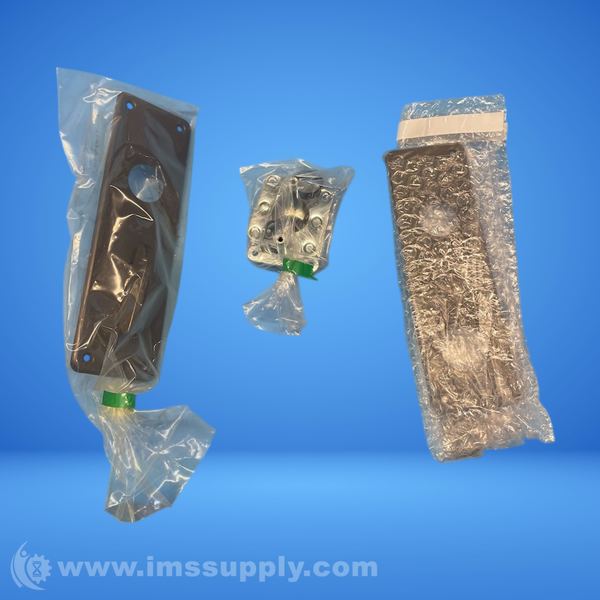

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 12 hours and 1 minutes.
