CRESTRON M201937001 KEYPAD
Quick Overview
Manufactured By: CRESTRON

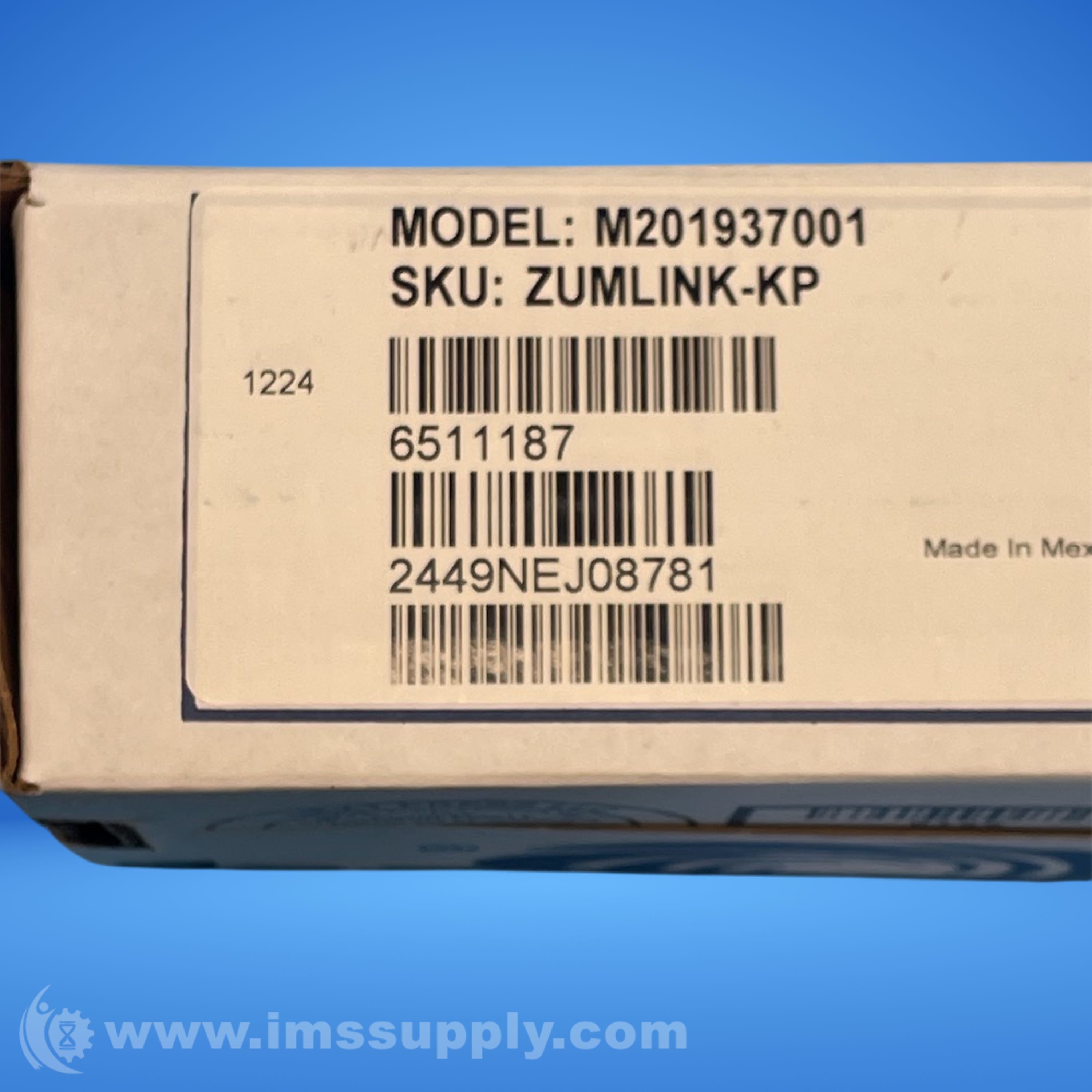

Manufacturer Part Number: M201937001
IMS Product Code: 2130654
Packaging: Sold Individually
Description:

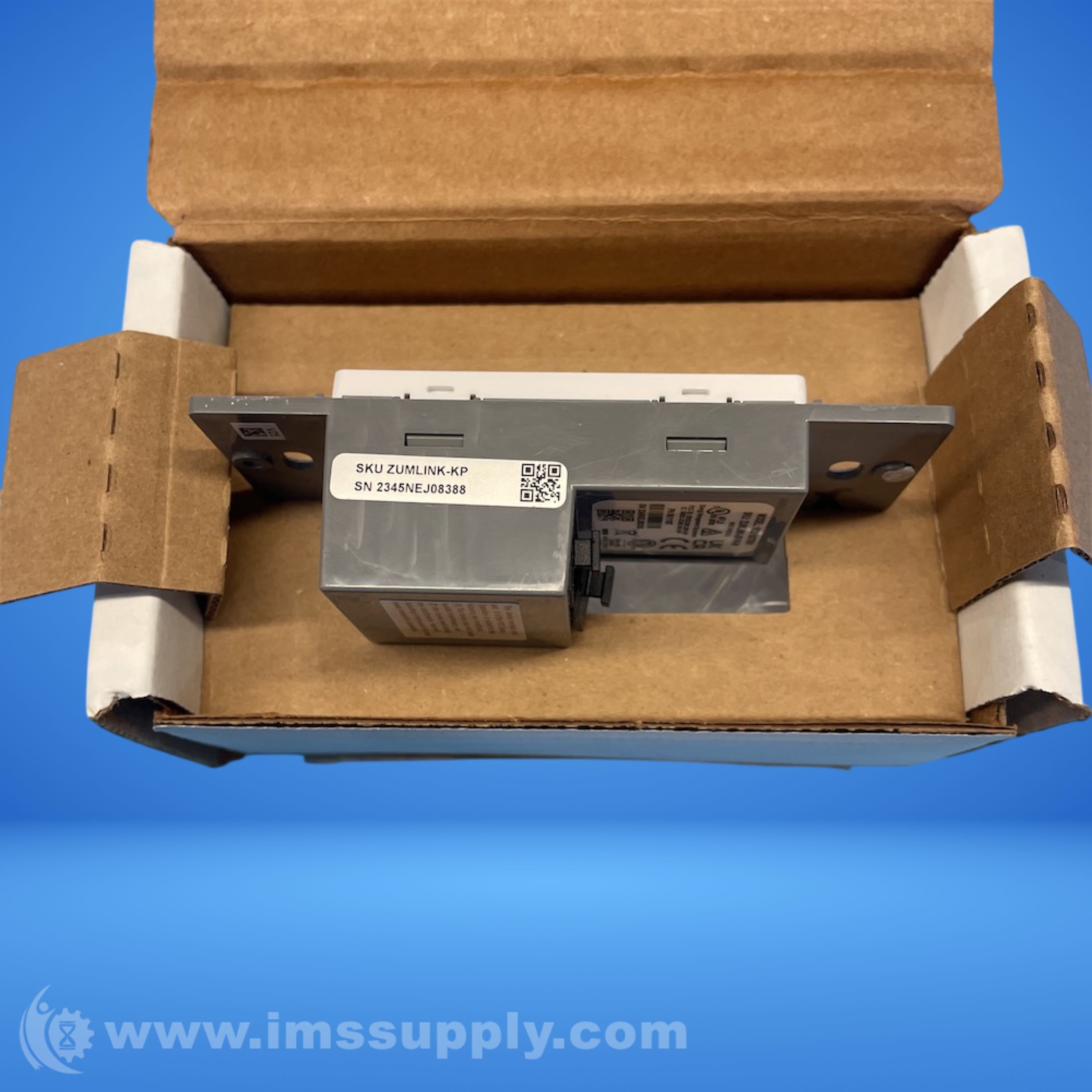

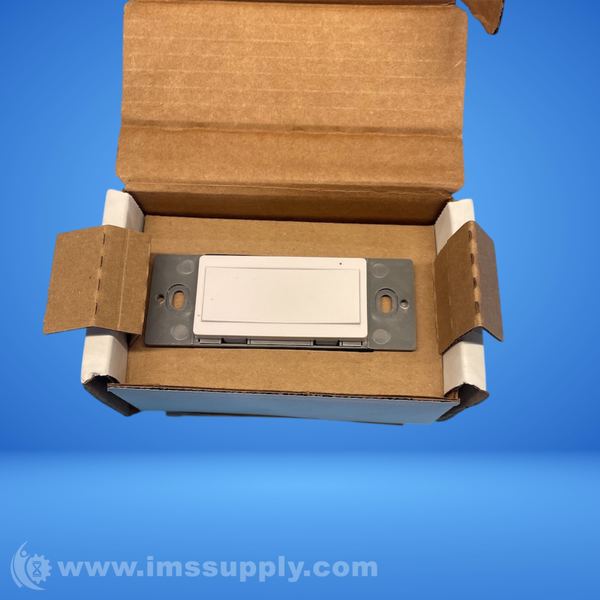

Crestron M201937001 Keypad
Crestron ZUMLINK-KP Keypad with Link Communication Rocker Button
Specifications
- Power Requirements: Powered by 24V ZUMLINK Bus
- Communications: Zum Link (2) RJ-45 ports; Connects to Zum Link device for load control; Provides in-room device daisy-chaining Bluetooth Bluetooth low energy, Version 4.0; Pairs with a mobile device running the Zum app
- Connections: ZUMLINK (2) RJ-45 orange ports; In-room Zum Link device daisy-chaining; Maximum 750mA pass-through current including any internal power supply
- Controls and Indicators: Push button (1) rocker button preprogrammed; Configurable with combinations of ZUMLINK-BTN2, ZUMLINK-BTN4, ZUMLINK-BTN6, ZUMLINK-BTN8 in pad printed or engraved models, sold separately LED (1) Green LED; Indicates On/Off status of connected load Lights briefly to indicate a button press
- Environmental: Temperature 32 degrees to 104 degrees F (0 degrees to 40 degrees C) Humidity 10% to 90% RH (noncondensing)
- Construction: Composition Plastic housing and front face Mounting Mounts in a 1-gang, 3.5 in. (89 mm) deep electrical box (not supplied) Faceplate Requires a decorator style faceplate (FP-G Series, not supplied)
- Dimensions: Height 4.13 in. (105 mm) Width 1.50 in. (38 mm) Depth 1.28 in. (33 mm)
- Weight: 5 oz (142 g)

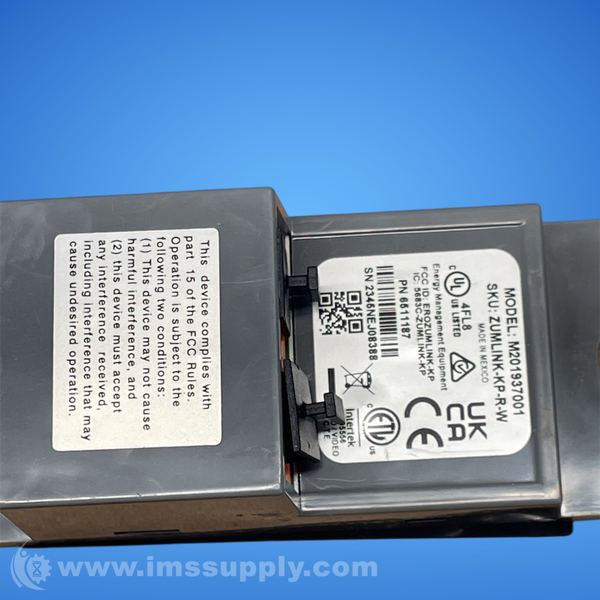

- Compliance: Regulatory Model: M201937001 UL Listed for US & Canada, IC, FCC Part 15 Class B digital device, UL 916, CSA C22.2 No. 205, CEC Title 24, ASHRAE 90.1, IECC
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
