CROUZET 81506710 PNEUMATIC TIMER
Quick Overview
Manufactured By: CROUZET
Manufacturer Part Number: 81506710
IMS Product Code: 430500
Packaging: Sold Individually
Description:

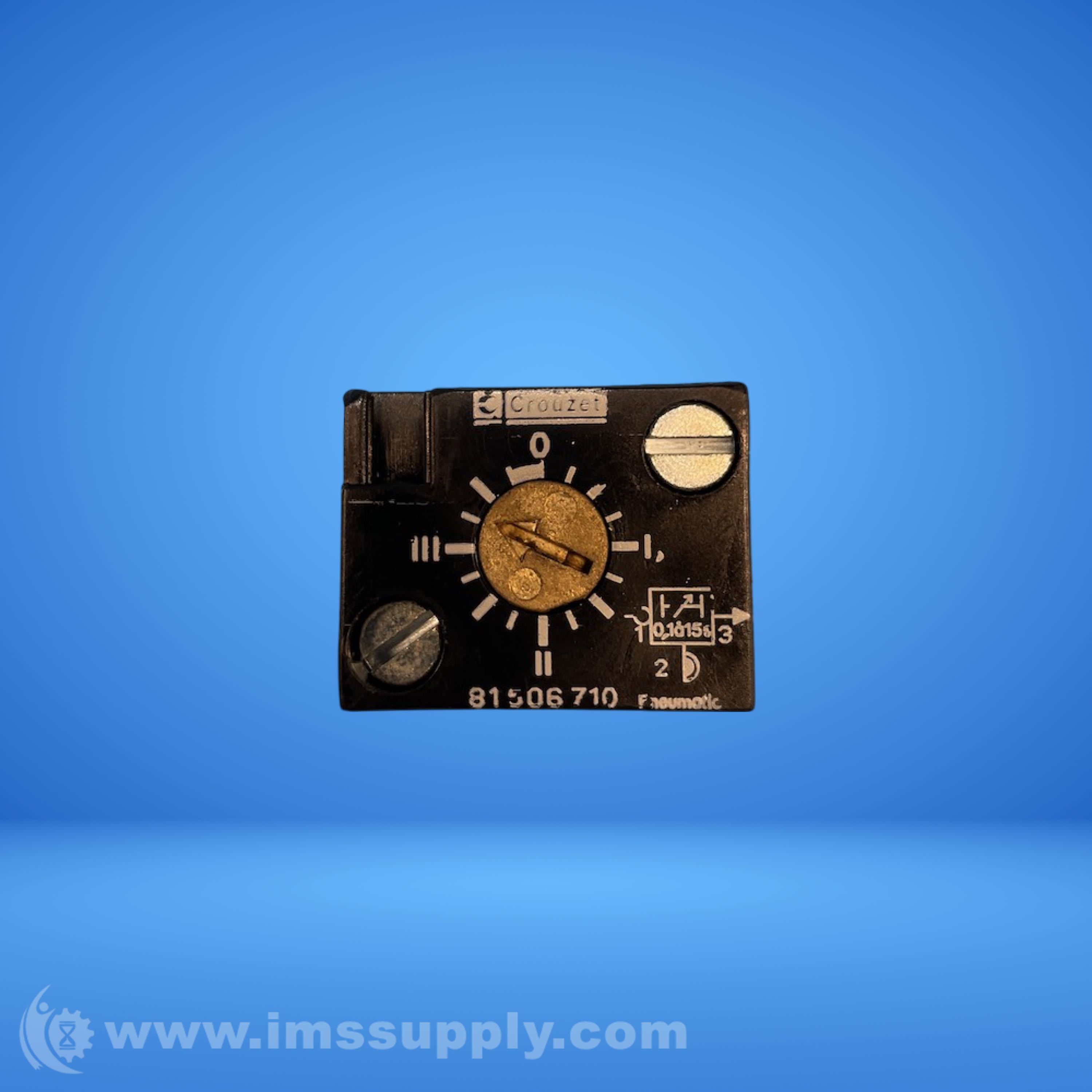

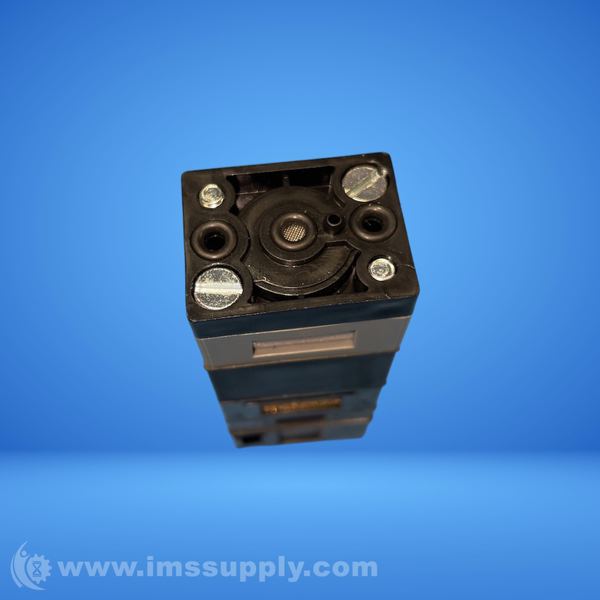

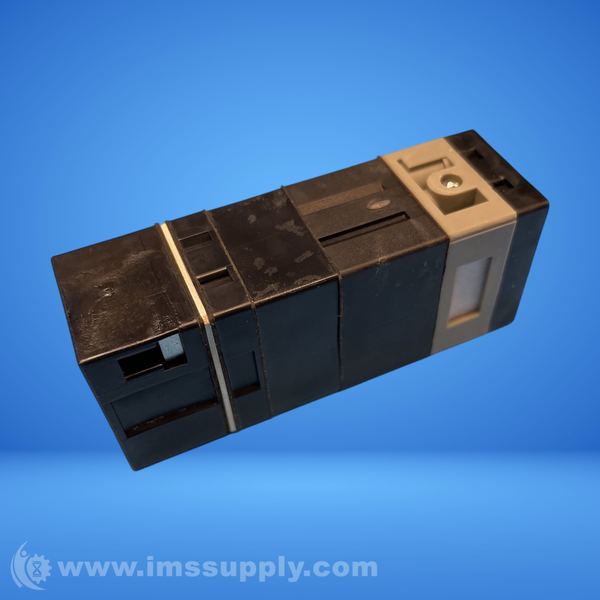

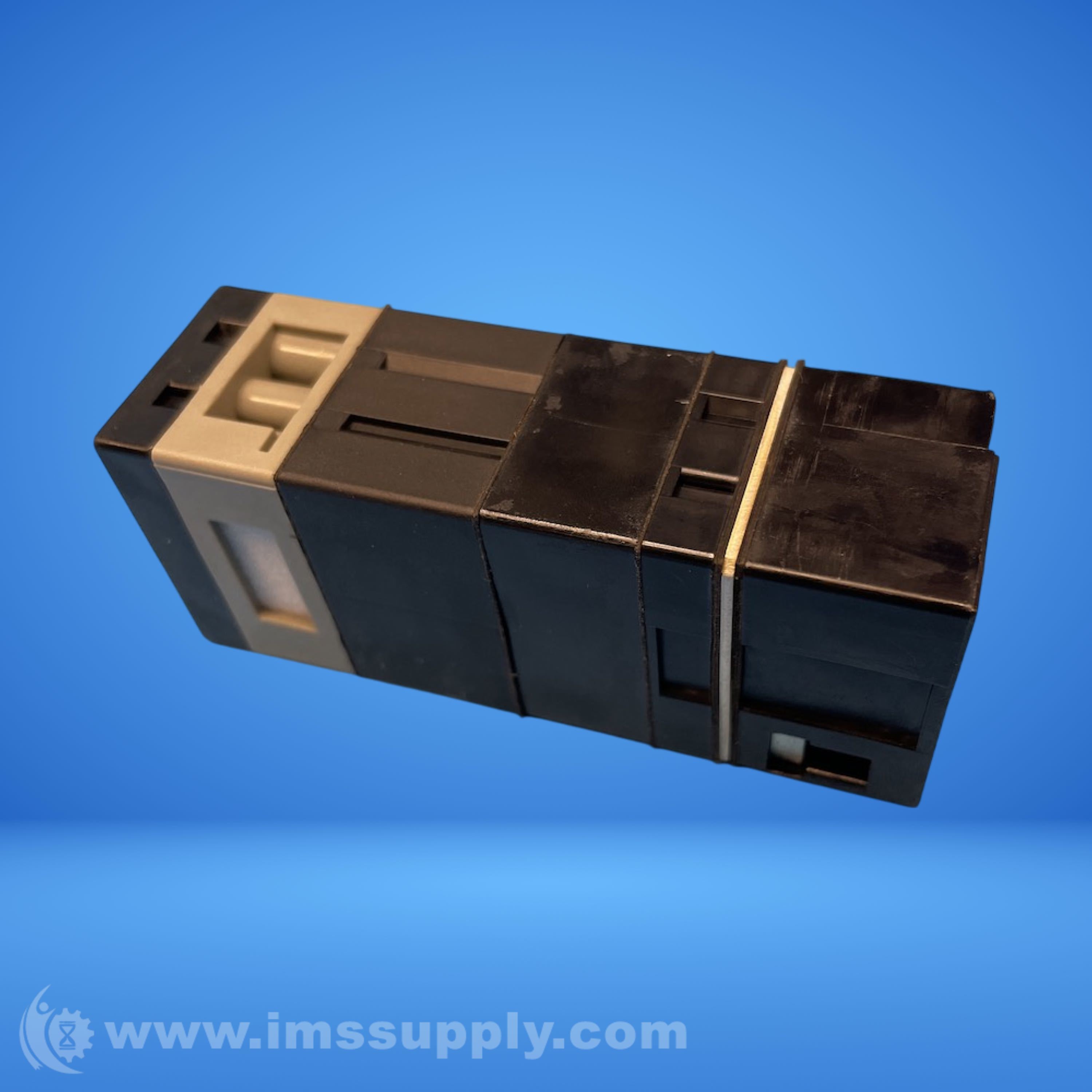

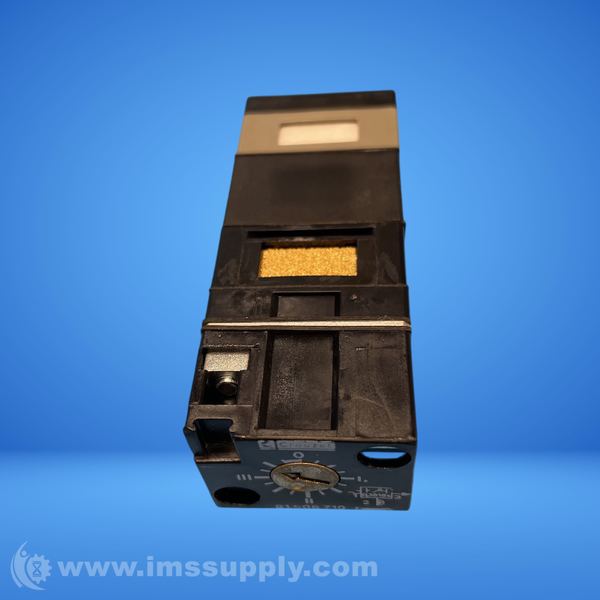

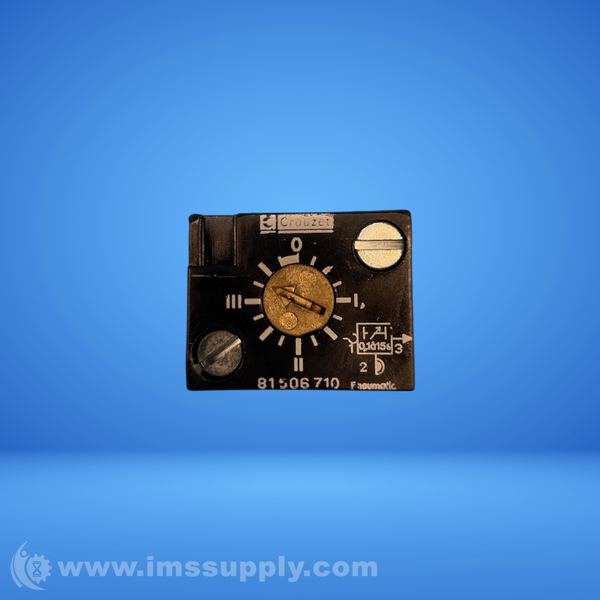

Crouzet 81506710 Pneumatic Timer
Pneumatic timer with adjustable timing range of 0.1 to 15 seconds, negative output, sub-base mount, and operating pressure range of 2 to 8 bar.
Specifications
- Type: Pneumatic Timer
- Output Type: Negative Output
- Adjustable Timing Range: 0.1 to 15 s
- Flow Rate at 6 bar: 170 Nl/min
- Orifice Diameter: 2.7mm
- Operating Pressure Range: 2 to 8 bar
- Mounting Type: Sub-base mount
- Maximum Operating Temperature: +50 degrees C
- Minimum Operating Temperature: -5 degrees C
- Manufacturer Series: 81
- Mechanical Durability: 10000000 cycles
- Output Configuration: NO
- Body Dimensions: 32x25x78mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 8 hours and 34 minutes.
