CROUZET 88 886 116 ANALOG TIMER
Quick Overview
Manufactured By: CROUZET
Manufacturer Part Number: 88886116
IMS Product Code: 2137254
Packaging: Sold Individually
Description:

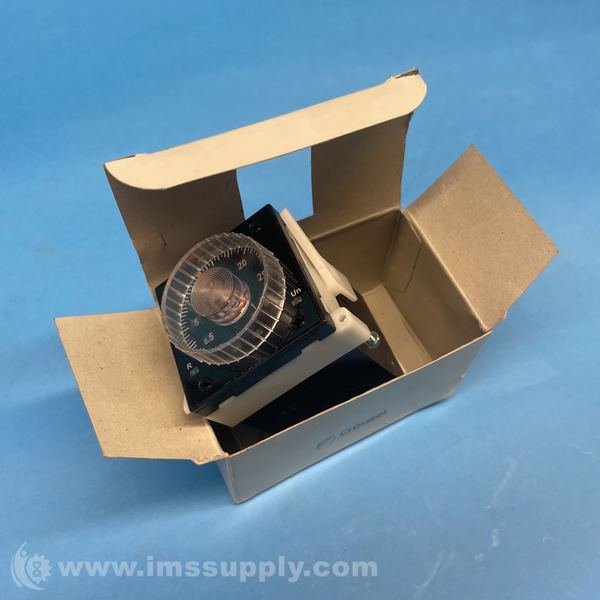

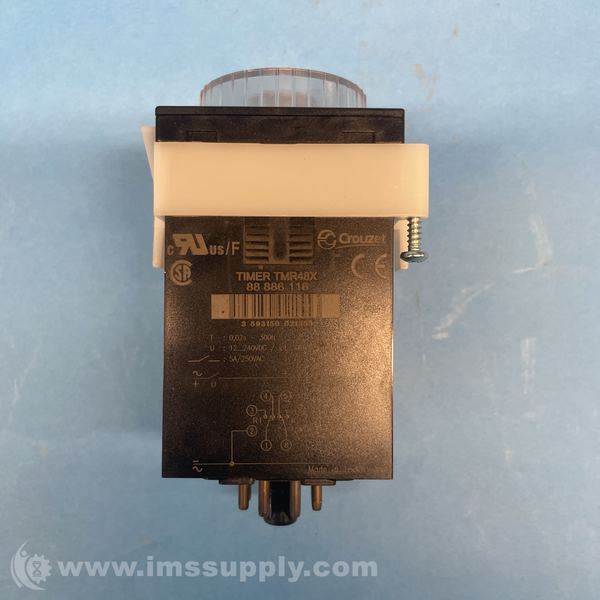

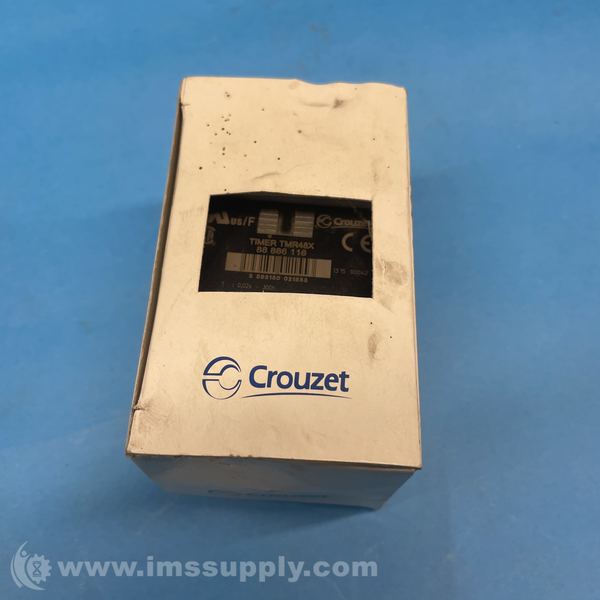

Crouzet 88 886 116 Analog Timer
Multifunction analog timer with 14 timing ranges, 0.02s to 300h, 2 changeover relays, 24-240VAC/DC supply
Specifications
- Timer Functions: Multifunction
- No. of Timing Ranges: 14 Ranges
- Time Min: 0.02s
- Time Max: 300h
- Timer Output: 2 Changeover Relays
- Supply Voltage Max: 240V
- Supply Voltage Min: 12VDC/24VAC
- Current Rating Nom: 5A
- Connection / Termination: Plug-In
- Panel Cutout Height: 45mm
- Panel Cutout Width: 45mm
- Accuracy: 0.5%
- Adjustment Type: Rotary
- Contact Configuration: DPDT
- Contact Current AC Max: 5A
- Contact Voltage AC Max: 250V
- External Depth: 81.3mm
- External Length / Height: 48mm
- External Width: 48mm
- Mechanical Life: 100000
- No. of Pins: 8Pins
- Operating Temperature Max: 55°C
- Operating Temperature Min: -20°C
- Reset Time: 100ms
- Weight: 0.14kg
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, October 27, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
