CRYDOM A4850 SOLID STATE RELAY
Quick Overview
Manufactured By: CRYDOM
Manufacturer Part Number: A4850
IMS Product Code: 1843999
Packaging: Sold Individually
Description:
Crydom A4850 Solid State Relay
Solid State Relay, 50A, 480VAC, 90-280VAC Control, 80-530VAC Load, Zero Crossing, Panel Mount
Specifications
- Product Series: Series One
- Circuit: 1NO
- Mounting: Surface
- Status Indicator: No
- Auxiliary Switch: No
- Number of Circuits: 1
- Input Signal: 90-280 VAC
- Input Polarity: AC
- Output Voltage: 80-530 VAC
- Nominal Output Voltage: 208 VAC, 120 VAC, 240 VAC, 480 VAC
- Current Rating: 50 A
- Transient Overvoltage: 800 V
- Termination: Screw Terminal
- Output Type: SCR AC Switch
- Switching Type: Zero Cross
- Integral Heat Sink: No
- MOV: No
- Snubber: No
- Net Weight: 0.16 lbs
- Gross Weight: 0.175 lbs
- Series: A48 Series
- Contact Configuration: SPST-NO
- Load Current: 50A
- Operating Voltage Max: 530Vrms
- Relay Mounting: Panel
- Relay Terminals: Screw
- Switching Mode: Zero Crossing
- Operating Voltage Min: 48VAC
- Control Voltage Min: 90VAC
- Control Voltage Max: 280VAC
- Product Range: A48 Series
- Blocking voltage: 800V
- Control Voltage AC Max: 280Vrms
- Control Voltage AC Min: 90Vrms
- Control Voltage Range: 90Vrms to 280Vrms
- Control Voltage Type: AC
- External Depth: 22.2mm
- External Diameter: 4.4mm
- External Length / Height: 57.2mm
- External Width: 44.4mm
- Fixing Centres: 47.6mm
- Isolation Voltage: 4kV
- Load Current Min: 40mA
- Load Current RMS Max: 50A
- Must Release Voltage: 10V
- Operating Voltage Range: 80Vrms to 530Vrms
- Output Type: Thyristor
- RMS Load Voltage Max: 530V
- RMS Load Voltage Min: 80V
- Rate of Voltage Change dv / dt: 500V/µs
- Resistance: 60kohm
- Single Cycle Surge Current: 625A
- Surge Current: 625A
Used (Special):

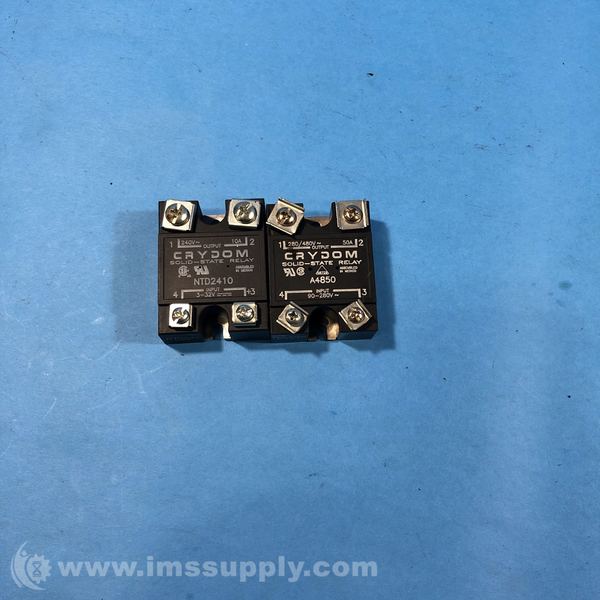

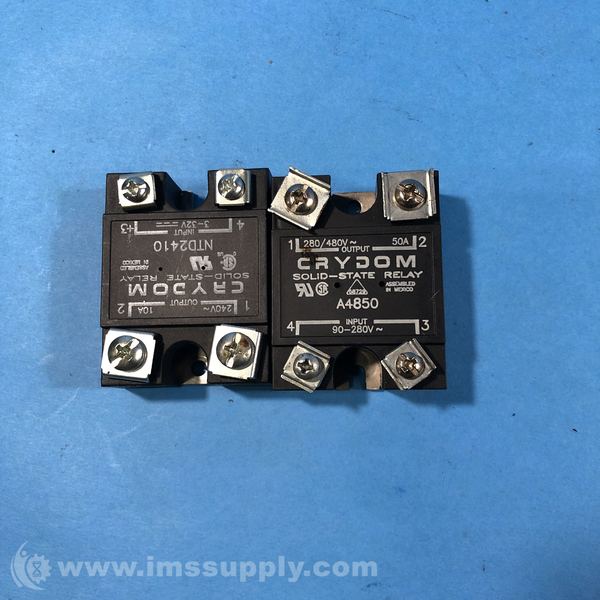

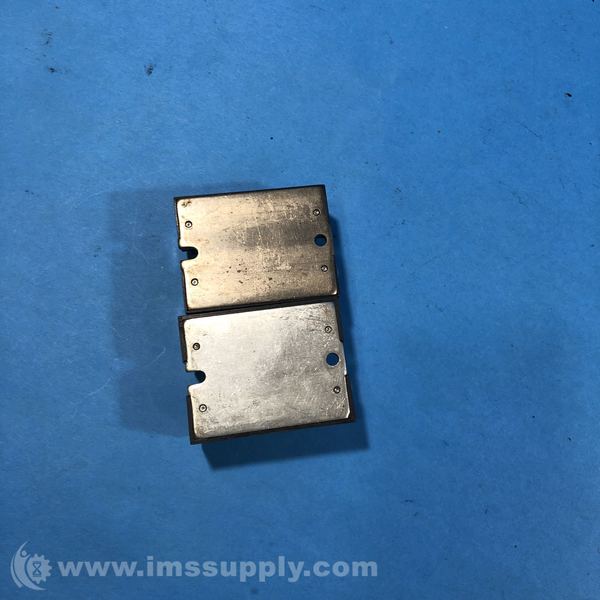

Attached to Heat Sink.
