CURRENT LIGHTING LHDMMTS2-N-WH DIMMING WALL SWITCH SENSOR
Quick Overview
Manufactured By: CURRENT LIGHTING
Manufacturer Part Number: LHDMMTS2-N-WH
IMS Product Code: 2143589
Packaging: Sold Individually
Description:

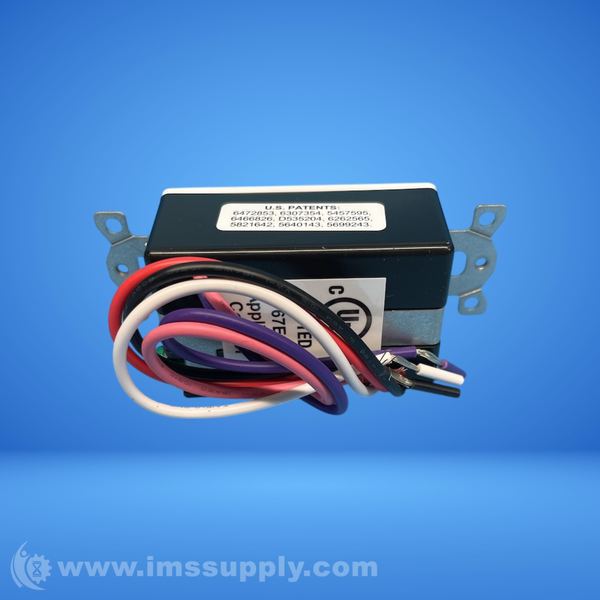

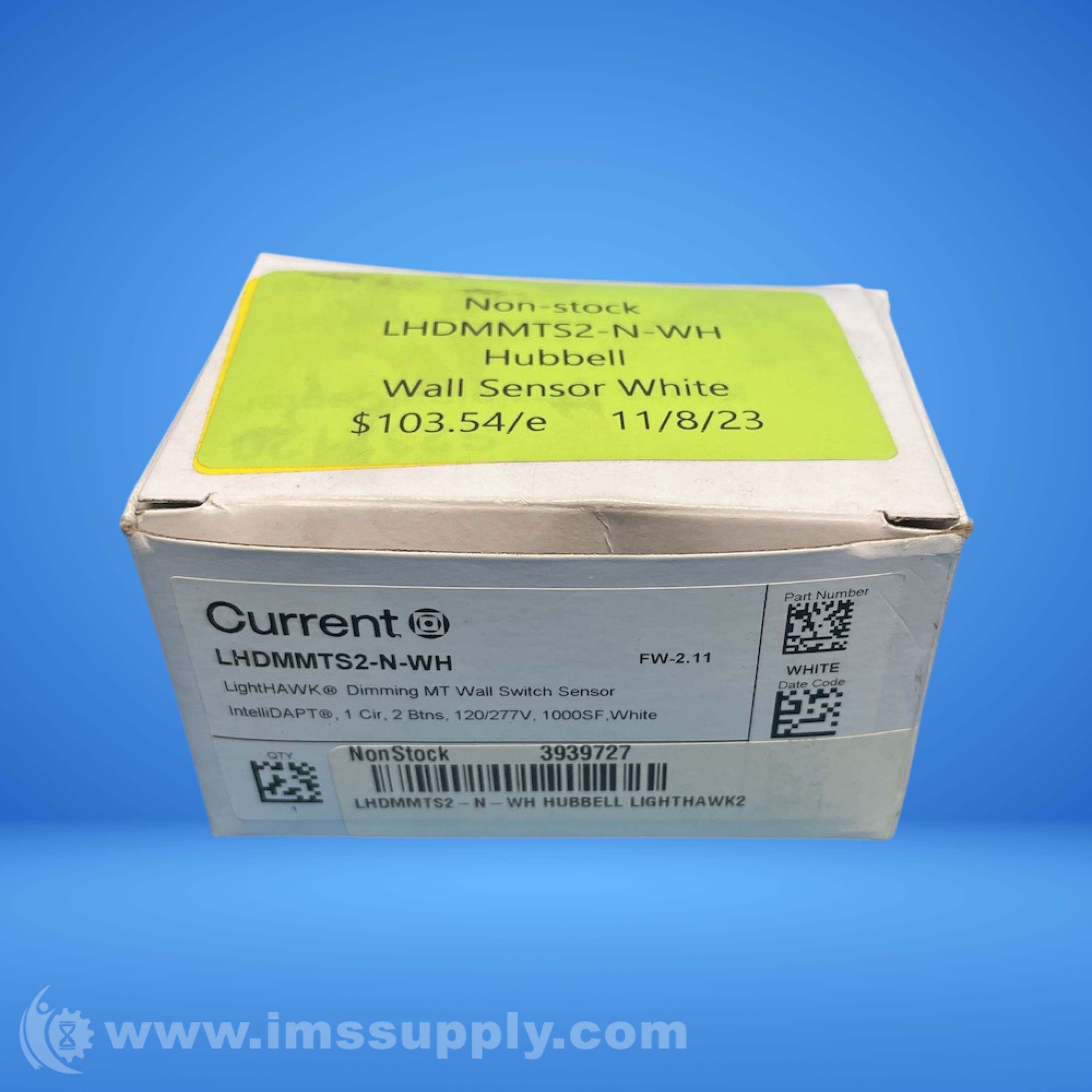

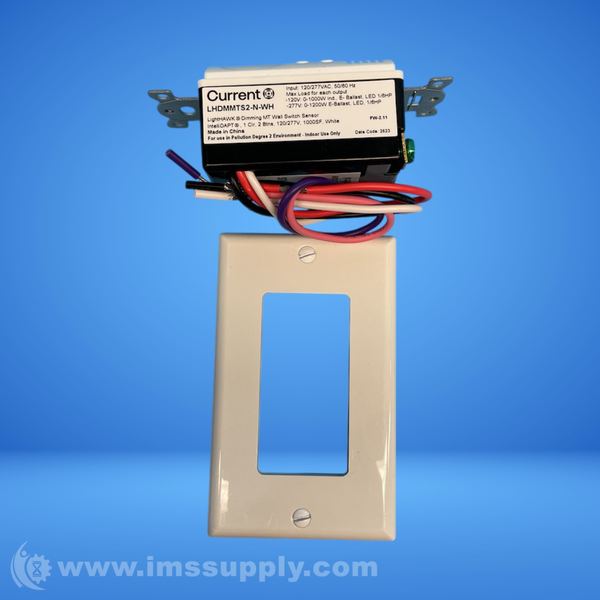

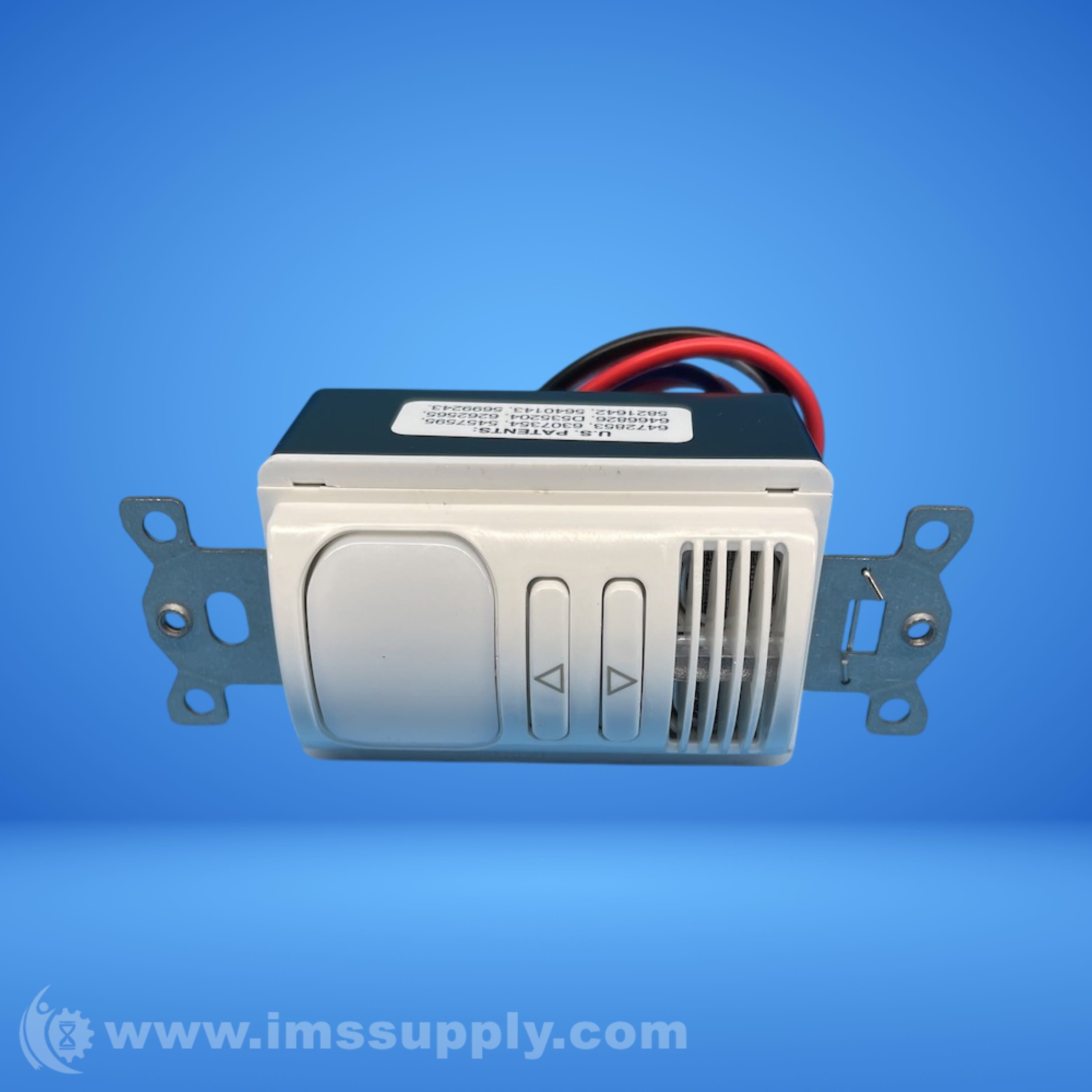

Current Lighting LHDMMTS2-N-WH Dimming Wall Switch Sensor
The LightHAWK Dimming Dual Technology Wall Switch Sensor combines passive infrared (PIR) and ultrasonic (US) technologies with 0-10V dimming.
Specifications
- Switch Type: Manual ON/Auto OFF
- Material: High Impact Injection Molded Plastic
- Temperature Rating: 0 to 40 degrees C
- Response Time: 4 - 20 min Automatic Mode, 4 min, 8 min, 15 min and 20 min Fixed Mode, 5 sec Test Mode
- Output: (1) Relay
- Mounting: Single Gang NEMA Style Switch Box
- Maximum Load Capacity: Ballast/Tungsten/E-Ballast/LED: 0 - 1000 Watt at 120 Volt AC; Ballast/E-Ballast/LED: 1/8 hp, 0 - 1200 Watt at 277 Volt AC, Ballast/LED:0 - 1500 Watt at 347 Volt AC
- Voltage Rating: 120 - 277 Volt AC
- Environmental Conditions: 0 - 95% Non-Condensing Relative Humidity
- Dimensions: 3.38 Inch Length x 1.72 Inch Width x 1.7 Inch Depth
- Color: White
- Amperage Rating: 30 Milli-Amp
- Type: Dimming Dual Technology
- Frequency Rating: 50/60 Hz
- Standards: UL and cUL Listed
- Viewing Angle: 180 Degree
- Sensing Distance: 1000 Sq-ft
- Lens: RhinoTuff Vandal Resistant
- Number of Circuits: 1
- Number of Buttons: 2
- Voltage: 120/277V
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 26 minutes.
