CUTLER HAMMER 10250T30R FLUSH PUSHBUTTON SWITCH
Quick Overview
Manufactured By: CUTLER HAMMER
Manufacturer Part Number: 10250T30R
IMS Product Code: 2170759
Packaging: Sold Individually
Description:

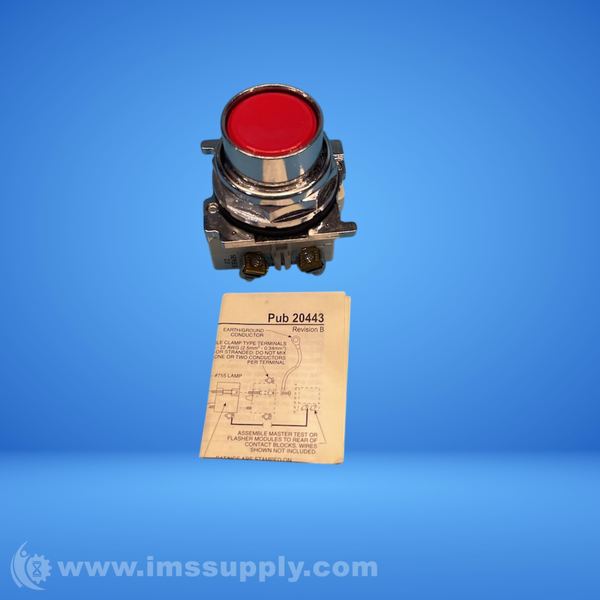

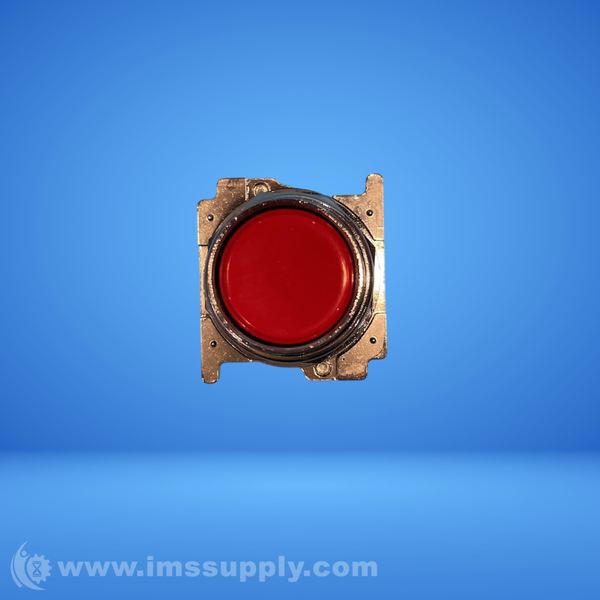

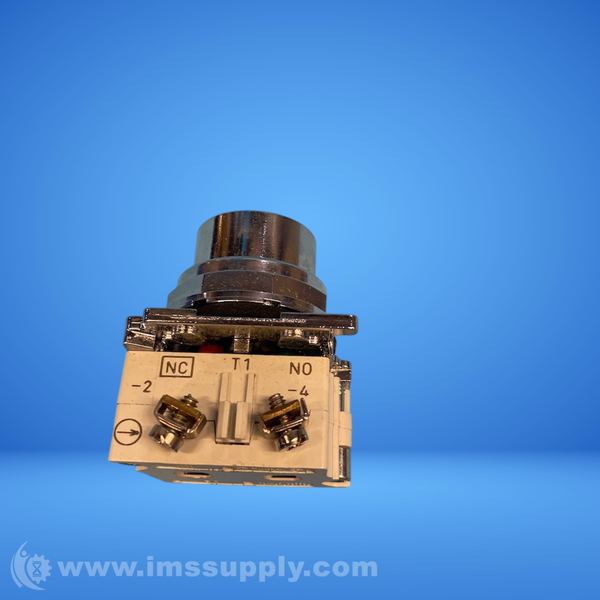

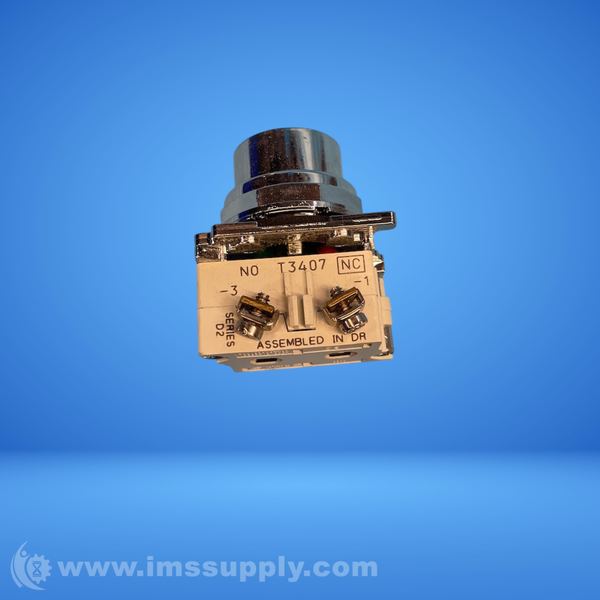

Cutler Hammer 10250T30R Flush Pushbutton Switch
Heavy-duty watertight/oiltight pushbutton switch with 1NO-1NC contacts, momentary operation, and IP65 protection rating
Specifications
- Dimensions (HxWxD): 2.4 x 2.1 x 3.5
- Operation: Momentary
- Mounting: 30 mm
- Contacts: 1NO, 1NC
- Max Voltage: 660 VAC, 660 VDC
- Current Rating: 10 A
- Bezel: Metal Round
- Lens/Button Shape: Round Flush
- Operator Color: Red
- Terminal Type: Screw
- NEMA Rating: NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
- Protection Rating: IP65
- Approvals: CE, CSA, UL
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 2 hours and 12 minutes.
