CUTLER HAMMER 11100AQD07 W BEAM SOURCE
Quick Overview
Manufactured By: CUTLER HAMMER
Manufacturer Part Number: 11100A-QD07
IMS Product Code: 431651
Packaging: Sold Individually
Description:

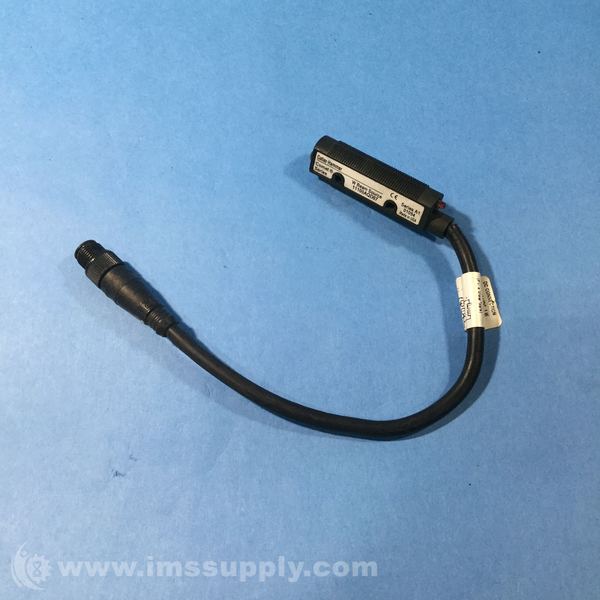

Cutler Hammer 11100AQD07 W Beam Source
DC-powered through-beam photoelectric sensor source unit with 4-pin micro connector and PVC cable, operating at 10-30 VDC with NEMA 4X and IP68/69K enclosure ratings
Specifications
- Power Type: DC
- Voltage: 10-30 VDC

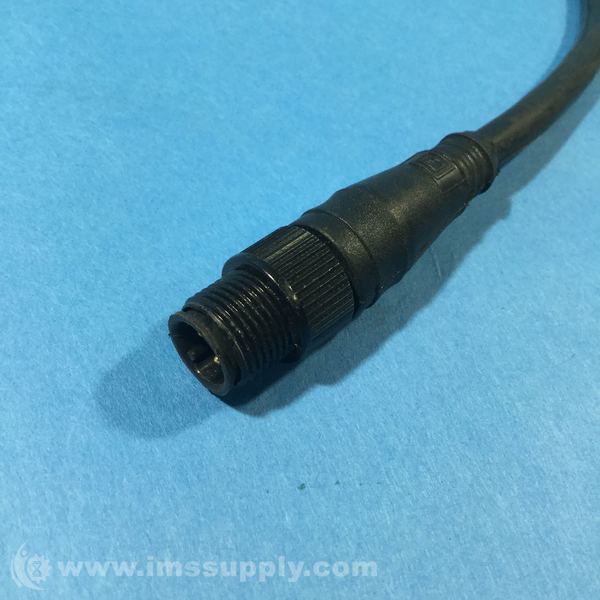

- Connection Type: 4 Pin Micro
- Max Load Current: 0.25 A
- Operating Mode: Thru-beam
- Enclosure Material: Lens: Polycarbonate Cable Jacket: PVC Body: Structural Polyurethane Foam
- Environmental Rating: NEMA 1,3,4,4X,6,6P,12,13, IP68, IP69K
- Diameter: 0.71 IN
- Product Length/Depth: 0.47 IN
- Product Height: 2.2 IN
- Product Width: 0.71 IN
- Product Weight: 0.1313 LB
- Approvals: CE, CUL, UL
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 5 In Stock
Ships today if ordered in the next 14 hours and 29 minutes.
