DAIKIN AKZ908 OIL COOLING UNIT
Quick Overview
Manufactured By: DAIKIN INDUSTRIES
Manufacturer Part Number: AKZ908
IMS Product Code: 2143009
Packaging: Sold Individually
Description:
Daikin AKZ908 Oil Cooling Unit
Circulation type oil cooling units for spindle and lubricant that achieve high energy saving rates, low noise, and high-accuracy temperature control.
Specifications
- Maximum Cooling Capacity: 8.0 / 9.0 kW
- Power Supply Main Circuit (50/60 Hz): Three Phase 200 / 200 . 220V
- Power Supply Control Circuit (50/60Hz): 12/24 VDC
- Transformer Capacity (200/220V): 6.0 kVA
- Oil pump displacement volume (50 / 60 Hz): 30/36 L/min
- Compressor: Equivalent to 0.4kW
- Evaporator: Brazing Plate Type
- Condenser: Cross-fin coil type
- Propeller Fan: 75W
- Room Temperature Application Range: 5 - 45 degrees C
- Tank Oil Temperature Application Range: 5 - 50 degrees C
- Oil Viscosity: 1.4–200 (ISO VG2-32)mm˛/s
- External Dimensions (H x W x D) mm: 1110 × 470 × 560, 1410 × 470 × 560, 1375 × 470 × 580, 1220 × 560 × 620, 1520 × 560 × 680, 1485 × 560 × 700
- Weight: 97, 132, 122, 175 kg

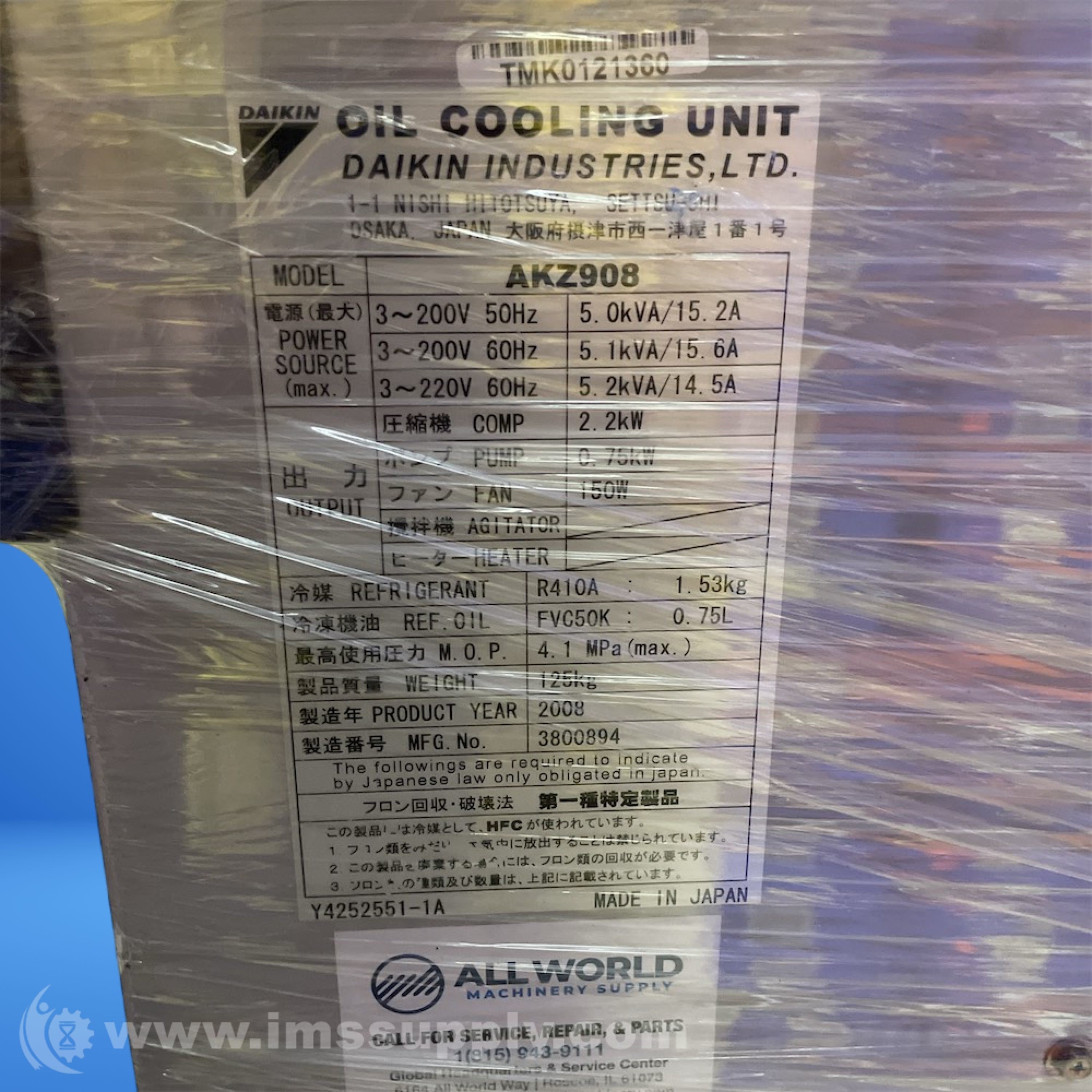

- Power Source: 3~200V 50Hz
- Power: 5.0kVA/15.2A
- Compressor Power: 2.2kW
- Pump Power: 0.75kW
- Fan Power: 150W
- Refrigerant: R410A 1.53kg
- Refrigerant Oil: FVC50K 0.75L
- Maximum Operating Pressure: 4.1 MPa
- Weight: 125kg
- Product Year: 2008
- Manufacturing Number: 3800894
