DART CONTROLS 2M510 DC SPEED CONTROL
Quick Overview
Manufactured By: DART CONTROLS
Manufacturer Part Number: 2M510
IMS Product Code: 2137297
Packaging: Sold Individually
Description:

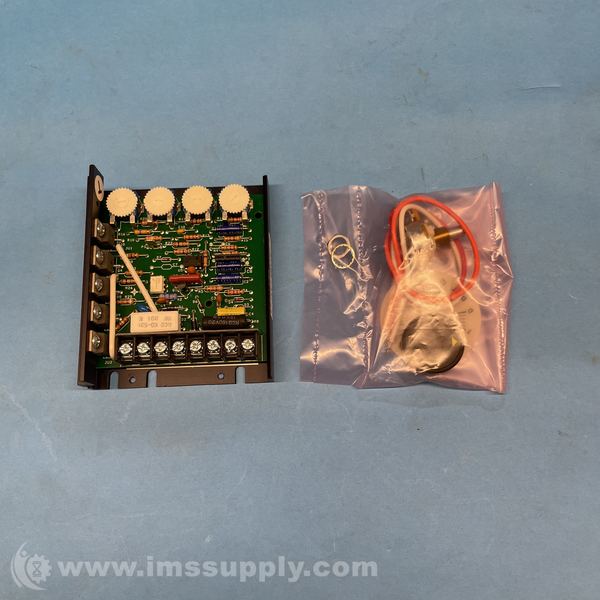

Dart Controls 2M510 DC Speed Control
DC speed control board with 5.5A max current, 90/180V DC output, 120/240V AC input, open enclosure, 50:1 speed range, single direction, chassis mount.
Specifications
- Series: Series 125
- DC Speed Control: SCR
- Enclosure Type: Open
- Maximum Current: 5.5 A
- AC Input Voltage: 120/240V AC
- Voltage Output: 90/180V DC
- Rotation: Single Direction
- Speed Range: 50:1
- Maximum Linear Acceleration: 6 sec
- Maximum Linear Deceleration: 6 sec
- Speed Regulation: +/-0.5% with Tach Feedback; +/-1% with Armature Voltage Feedback
- Overall Height: 4.25 in
- Overall Width: 3.63 in
- Overall Depth: 1.3 in
- Operating Temperature: -10 to 45 degrees C
- Current/Torque Limit: Adjustable
- Dynamic Braking: No
- Follower Circuit: No
- Mount Type: Chassis
- Shunt Wound Voltage: 100/200V DC
- Standards: CE Certified; cULus Recognized; RoHS
- Higher Voltage Motor Output Power: 1/4 to 1 hp
- Lower Voltage Motor Output Power: 1/8 to 1/2 hp
- Weight: 1.00 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
