DAYTON 1EGB6 TIME DELAY RELAY
Quick Overview
Manufactured By: DAYTON
Manufacturer Part Number: 1EGB6
IMS Product Code: 2133608
Packaging: Sold Individually
Description:

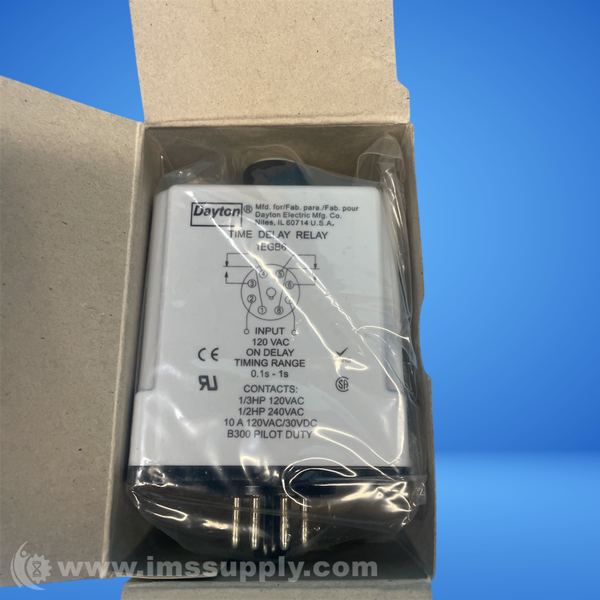

Dayton 1EGB6 Time Delay Relay
Single Function Time Delay Relay, Socket Mounted, 120V AC/DC, 10 A, 8 Pins/Terminals
Specifications
- Relay Mounting Style: Socket
- Electrical Connection Type: Pin
- Number of Pins/Terminals: 8
- Current Rating: 10 A
- Input Voltage: 120V AC/DC
- Contact Form: DPDT
- Contact Rating (AC): 10 A @ 240V
- Contact Rating (DC): 10 A @ 30V
- Contact Material: Silver Nickel
- Delay Function: On Delay
- Minimum Time Setting: 0.01 sec
- Maximum Time Setting: 1 sec
- Adjustment Method: Potentiometer
- Operating Time Accuracy: +0% -50% (Minimum Setting (Adjustable)); +2% 50ms (Fixed); +5% -0% (Maximum Setting (Adjustable))
- Power Consumption: 2 VA
- Frequency: 50/60 Hz
- Body Height: 2.9 in
- Body Width: 2.4 in
- Body Depth: 1.7 in
- Minimum Operating Temperature: -18 degrees F
- Maximum Operating Temperature: 122 degrees F
- IP Rating: IP20
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 3 In Stock
Ships today if ordered in the next 27 minutes.
