DAYTON 4C661 18IN TUBEAXIAL FAN
Quick Overview
Manufactured By: DAYTON
Manufacturer Part Number: 4C661
IMS Product Code: 2130419
Packaging: Sold Individually
Description:
Dayton 4C661 18in Tubeaxial Fan

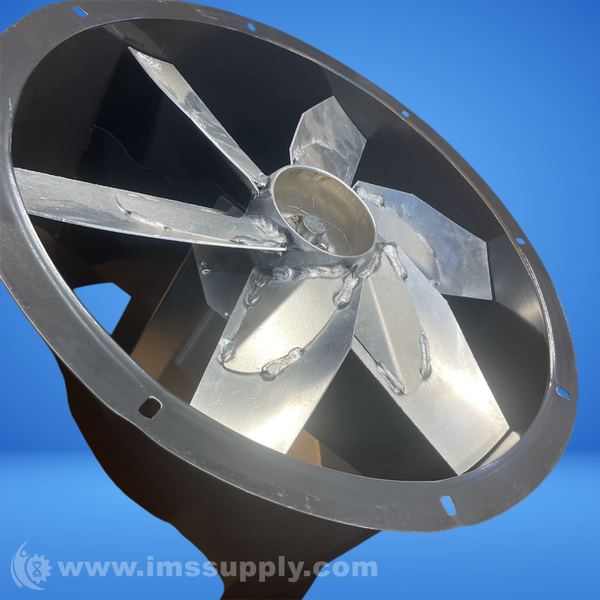

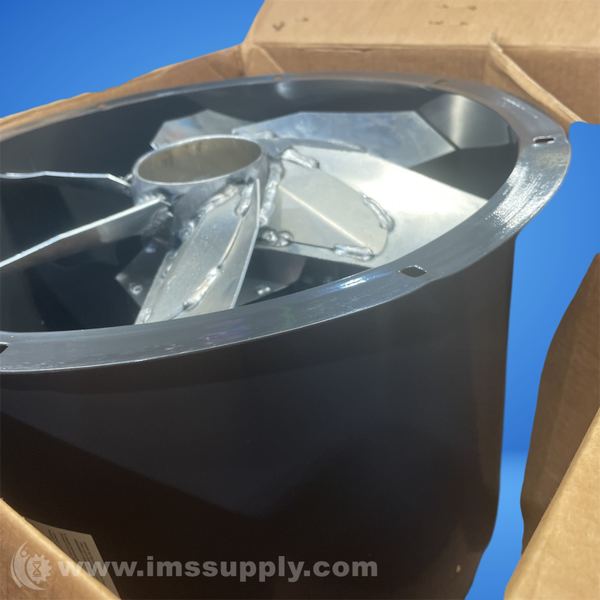

Tubeaxial fan with 18-inch aluminum blade, rust-resistant steel housing, and permanently lubricated ball bearings. Suitable for vertical or horizontal mounting, with airflow capacity ranging from 3,230 to 5,298 CFM depending on motor specifications.
Specifications
- Blade Diameter: 18 in.
- Blade Material: Aluminum
- Mounting Position: Vertical/Horizontal
- Number of Blades: 6
- Body Diameter: 18 1/2 in
- Bolt Circle Diameter: 19 7/8 in
- Airflow: 3,230 cfm to 5,298 cfm
- Fan Speed: 1,375 RPM to 2,255 RPM
- Maximum Ambient Temperature: 104 Degrees F
- Maximum Inlet Air Temperature: 200 Degrees F
- Maximum Static Pressure: 1 in wc
- Propeller Shaft Diameter: 7/8 in
- Resistance Properties: Rust Resistant
- Spark Resistant Construction Type: B
- Standards: AMCA
- Type: Axial
