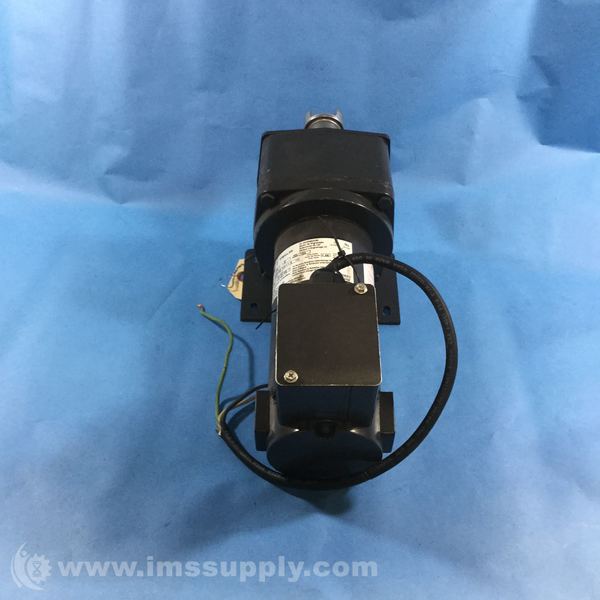

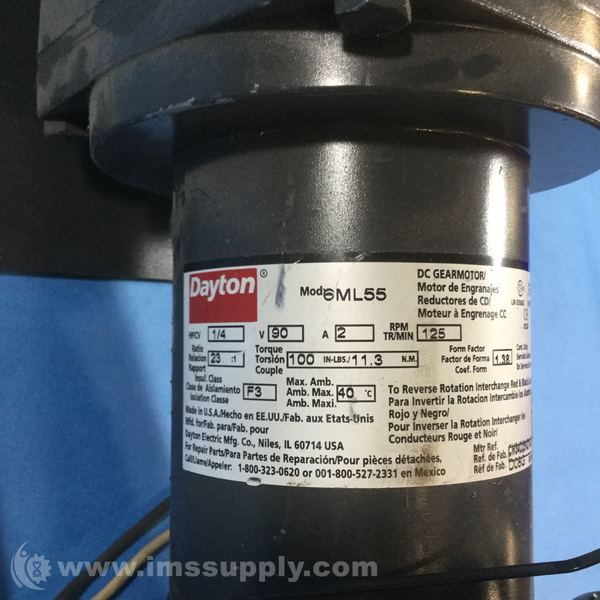

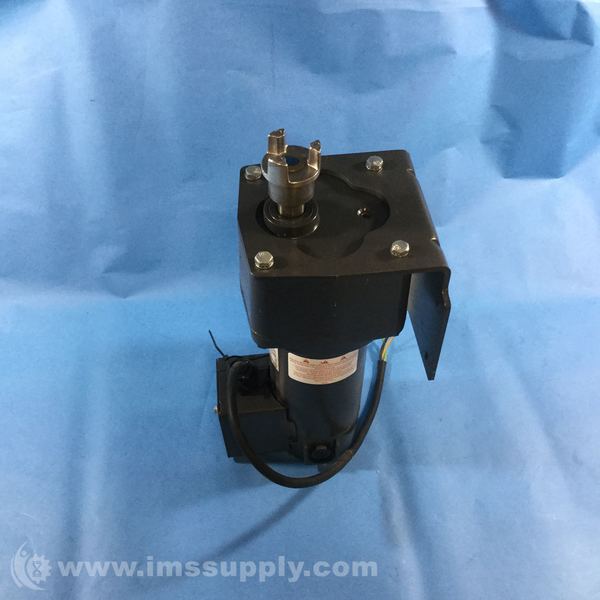

DAYTON 6ML55 DC GEARMOTOR
Quick Overview
Manufactured By: DAYTON
Manufacturer Part Number: 6ML55
IMS Product Code: 1807218
Packaging: Sold Individually
Description:
Dayton 6ML55 DC Gearmotor
Specifications:
- Gearmotor Voltage: 90VDC
- Max. Torque: 100.0 in.-lb.
- Gearmotor Shaft Type: Single
- Gearmotor Shaft Orientation: Parallel
- Rear Shaft Encoder/Pulse Generator Mounting: No
- Nameplate RPM: 125
- Gearmotor Enclosure: Totally Enclosed Nonventilated
- Gearmotor Mounting Position: All Angle
- Length Less Shaft: 11-5/16"
- Reversible Shaft Output: No
- Overhung Load: 256 lb.
- Input HP: 1/4
- Gear Ratio: 23:1
- Full Load Amps: 2.00
- Thermal Protection: None
- Max. Ambient Temp.: 40 Degrees C
- Gearmotor Rotation: CW/CCW
- Motor Type: Permanent Magnet DC
- Overall Length: 12-15/16"
- Shaft Dia. (Dimension U): 3/4"
- Shaft Length (Dimension V): 1-5/8"
