DELTA D24-53-T ELECTRIC ACTUATOR
Quick Overview
Manufactured By: DELTA
Manufacturer Part Number: D24-53-T
IMS Product Code: 2128013
Packaging: Sold Individually
Description:

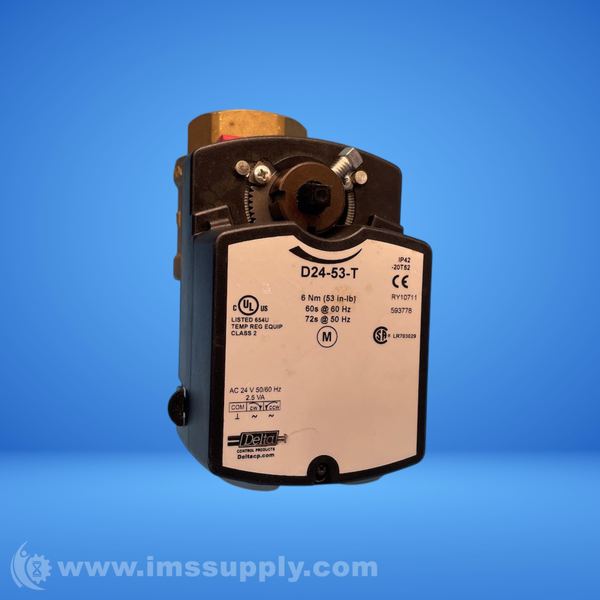

Delta D24-53-T Electric Actuator
Non-spring return electric actuator for precise control of dampers and valves in HVAC systems. Operates on 24 VAC power supply, delivering 53 in-lb (6 Nm) torque output.
Specifications
- Torque: 53 in-lb (6 Nm)
- Power Supply: 24 VAC
- Control Signal: On/Off and Floating Point
- Rotation Range: 90° nominal, adjustable via end-stop set screws
- Runtime: 90 seconds for 90° rotation at 60 Hz
- Shaft Compatibility: Round: 3/8 to 1/2 inches (10 to 13 mm); Square: 3/8 inches (10 mm)
- Manual Override: Manual gear release
- Enclosure Rating: NEMA 2
- Conduit Openings: 1/2-inch NPT threaded
- Weight: 1.83 lbs
