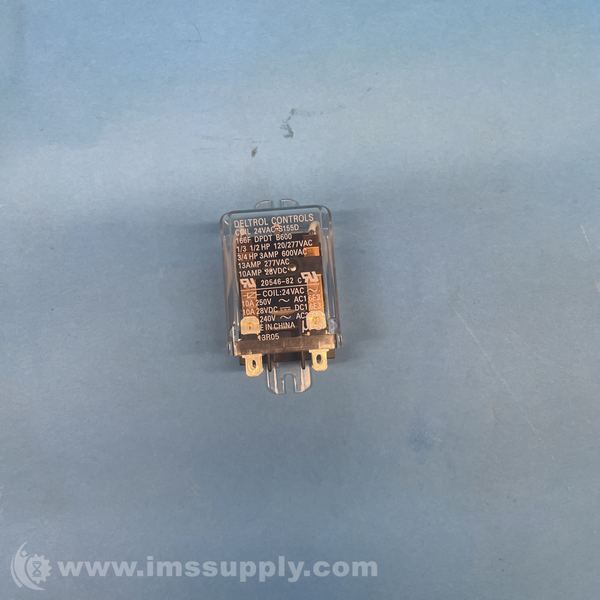

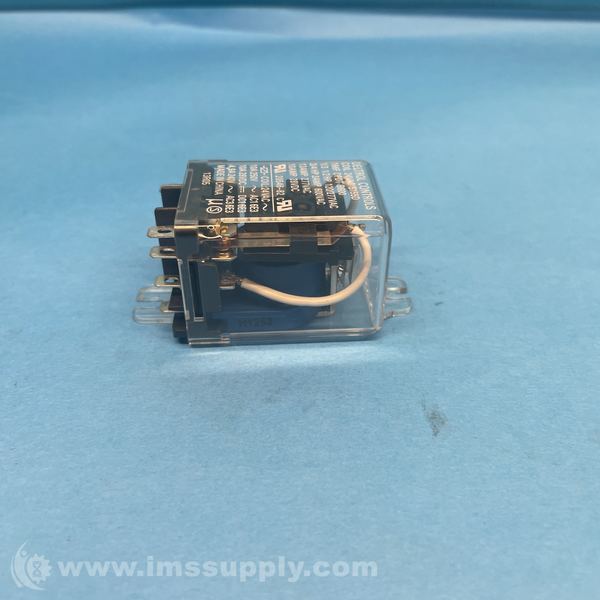

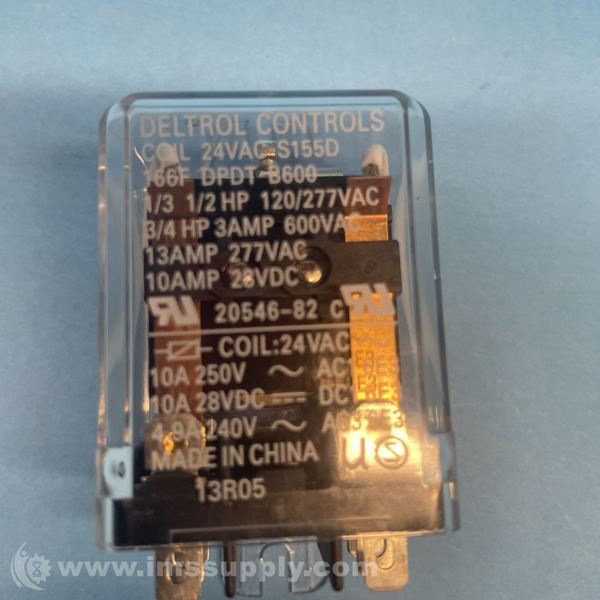

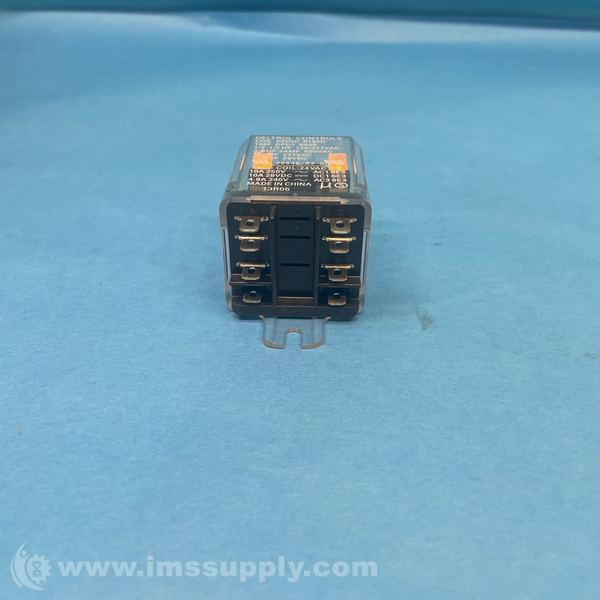

DELTROL CONTROLS 20546-82 24VAC 13A DPDT RELAY
Quick Overview
Manufactured By: DELTROL CONTROLS
Manufacturer Part Number: 20546-82
IMS Product Code: 2135305
Packaging: Sold Individually
Description:
Deltrol Controls 20546-82 24VAC 13A DPDT Relay
General purpose relay with DPDT configuration, 24VAC coil voltage, and 13A current rating. Features flange mount and quick connect terminals.
Specifications
- Coil Voltage: 24VAC
- Contact Form: DPDT (2FormC)
- Contact Rating (Amps): 13
- Number of Pins/Terminals: 8
- Connection Type: Q.C. Terminals
- Mounting: Flange Mount
- Case Style: Flange Cover
- Series: 160
- Contact Type: DPDT
- Termination Style: Quick connect .187 in
- Model: 166F
- Coil Resistance: 72 O
- Max Current Rating: 13 A
- Operate Time: 15 ms
- Throw Configuration: DPDT
- Weight: 85 g
