DESTACO 817-S PNEUMATIC HOLD DOWN CLAMP
Quick Overview
Manufactured By: DESTACO
Manufacturer Part Number: 817-S
IMS Product Code: 2161205
Packaging: Sold Individually
Description:

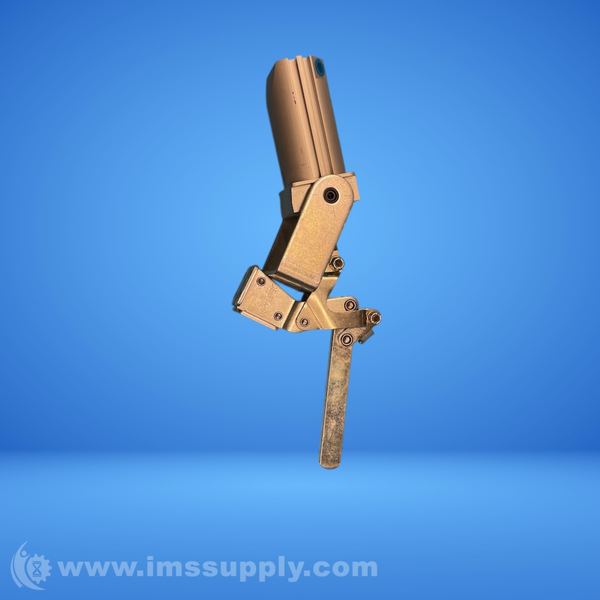

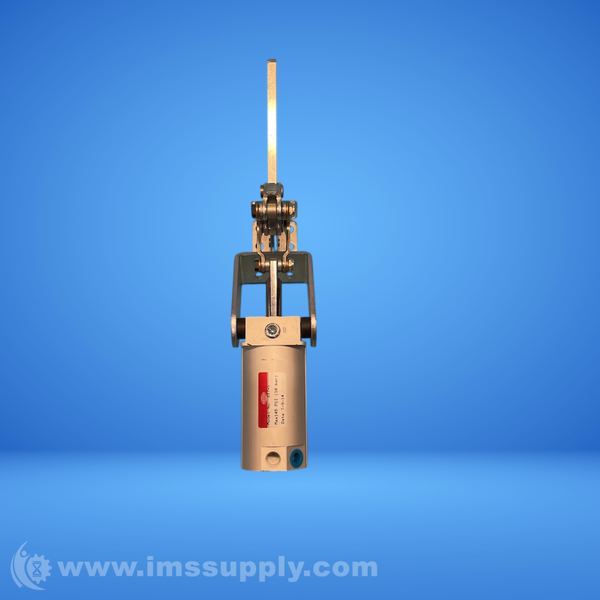

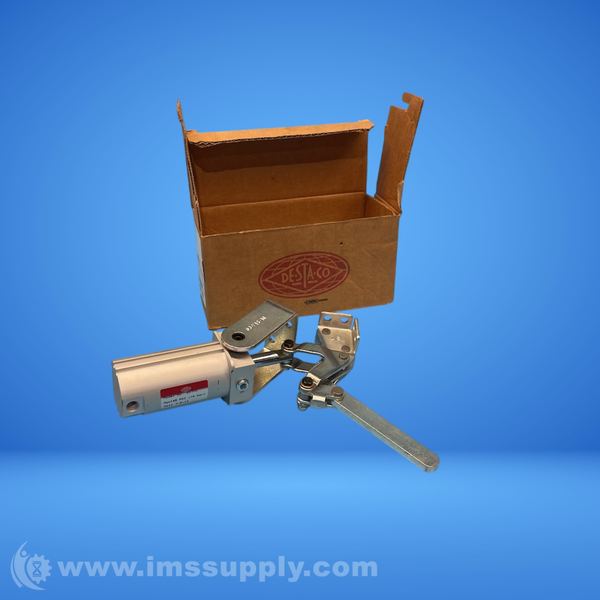

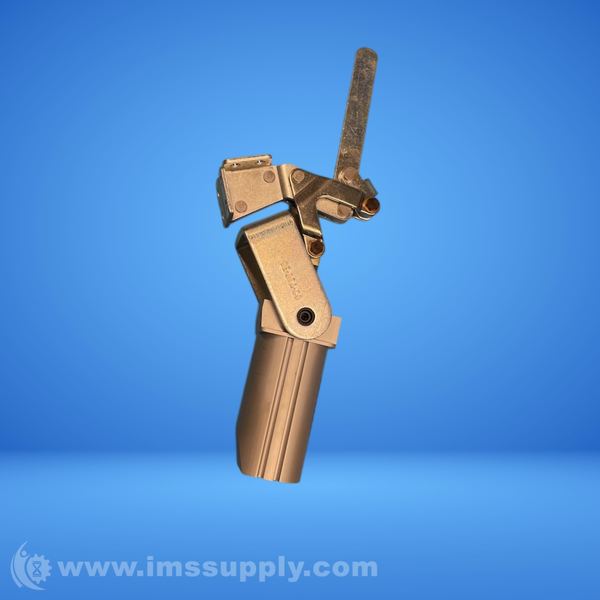

Destaco 817-S Pneumatic Hold Down Clamp
Pneumatic version of manual clamp models 317-U and 317-S. Dual mounting surfaces for max flexibility. Built-in flow control for smooth operation, magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.
Specifications
- Clamp Arm Length: 3.04 in
- Cylinder Bore: 1.26 in
- Exerting Force: 360 lbf
- Height Under Clamp Arm: 2.69 in
- Maximum Holding Capacity: 450 lbf
- Air Port size: 1/8 NPT
- Operating Temperature: -10 to 90 degrees C (-14 to 194 degrees F)
- Clamp Arm Style: u-bar
- Air Consumption: 0.015 ft�
- Weight: 2.31 lb
- Product Type: Pneumatic Toggle Clamp
- Power Type: Pneumatic
- Mounting Orientation: Vertical
- Bar Opening: 95 degrees
- Clamping Force: 360 lbf
- Maximum Air Pressure: 145 psig
- Sensor Compatibility: Round; T-Slot
