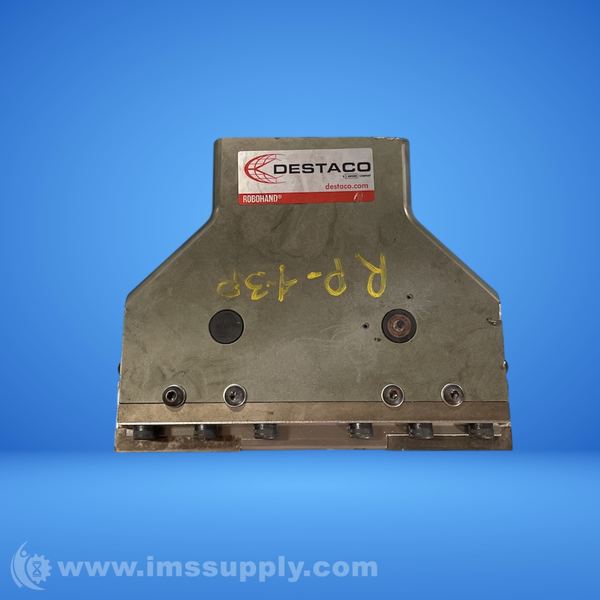

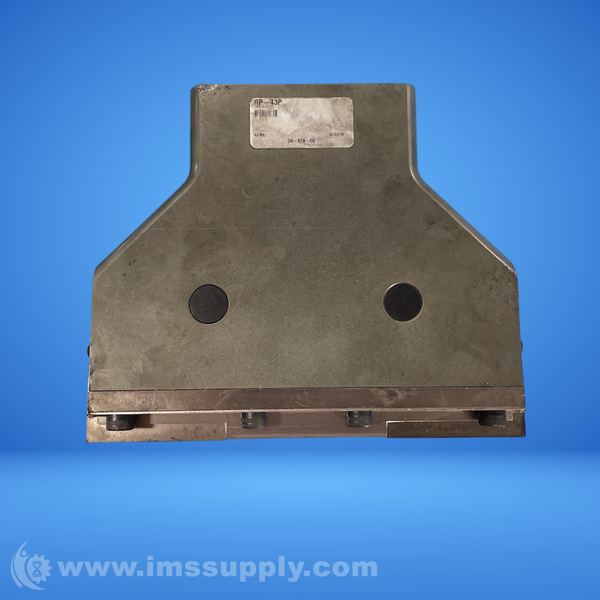

DESTACO RP-43P PRECISION 2-JAW PARALLEL GRIPPER
Quick Overview
Manufactured By: DESTACO
Manufacturer Part Number: RP-43P
IMS Product Code: 2176694
Packaging: Sold Individually
Description:
Destaco RP-43P Precision 2-Jaw Parallel Gripper
Precision parallel grippers for delicate part handling. Perfect for delicate parts with long finger lengths and impressive grip force.
Specifications
- Length (in): 11.50
- Weight (lb): 16.0
- Accuracy (�in): 0.002
- Grip Force (lbf): 500
- Maximum Finger Length (in): 8.0
- Pressure Range: 5-100 psi
- Repeatability (�in): 0.0005
- Stroke (in): 3.0
- Temp Range Standard: -35� to 80�C (-30� to 180�F)
- Temp Range Viton: -30� to 150�C (-20� to 300�F)
- Grip Force (N): 2,224
- Stroke (mm): 76.2
- Actuation Time (Open/Closed) (Sec): 1
- Accuracy (�mm): 0.050
- Maximum Finger Length (mm): 203
- Product Type: 2 Jaw Parallel
- Special Feature: Precision
- Number of Jaws: 2
- Overall Height: 6 7/8 in
- Overall Width: 8 1/2 in
- Open Width: 11 1/2 in
- Inlet Size: 1/8 in
- Seal Material: Buna-N
- Operation Type: Synchronous
- Total Rated Grip Force @ 100 psi: 160.13 N
- Displacement: 120.61 cc
- Air Inlet Type: NPT
- Maximum Actuation Time: 0.59 sec
- Series: RPP
- Finger Mounting: Side
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 23 minutes.
