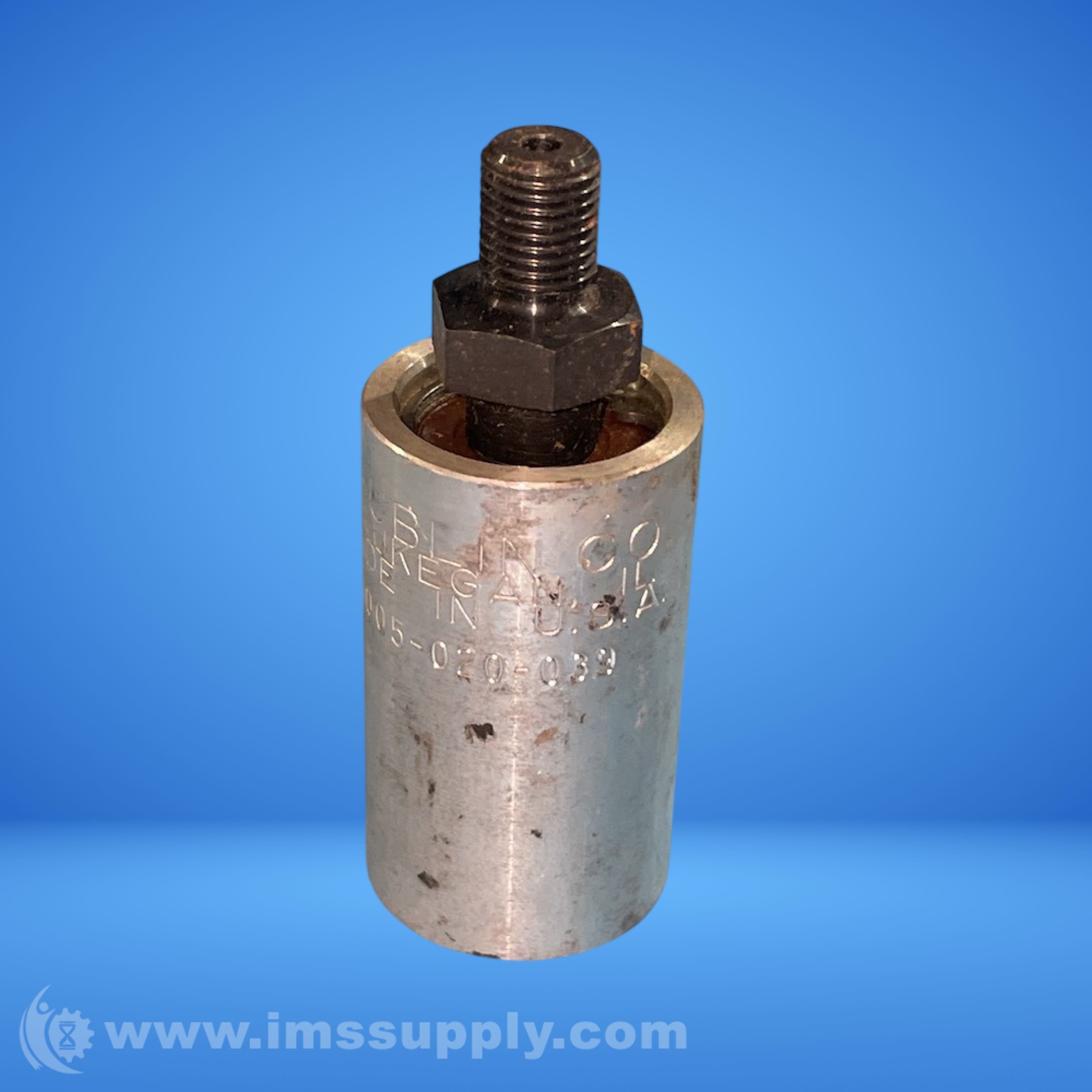

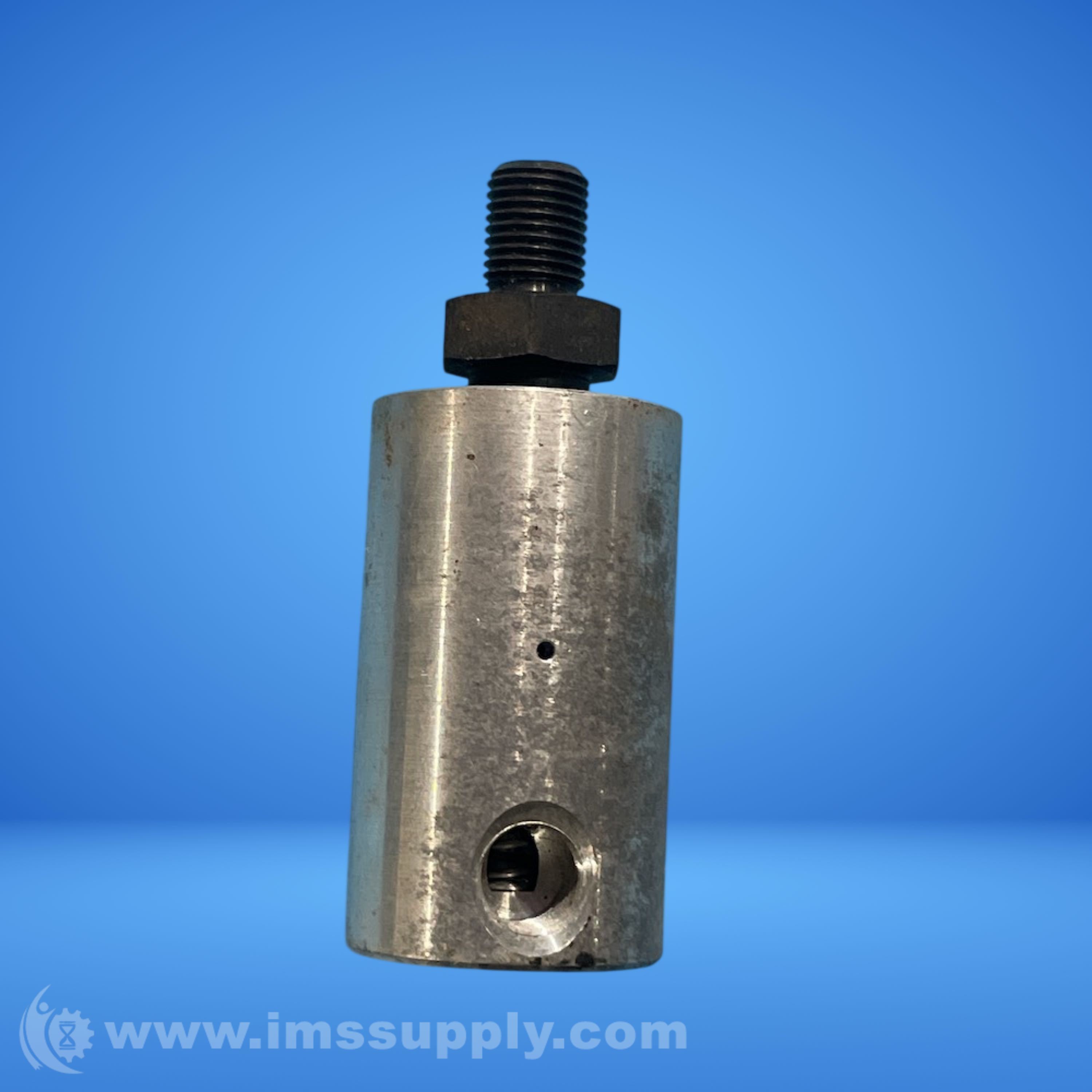

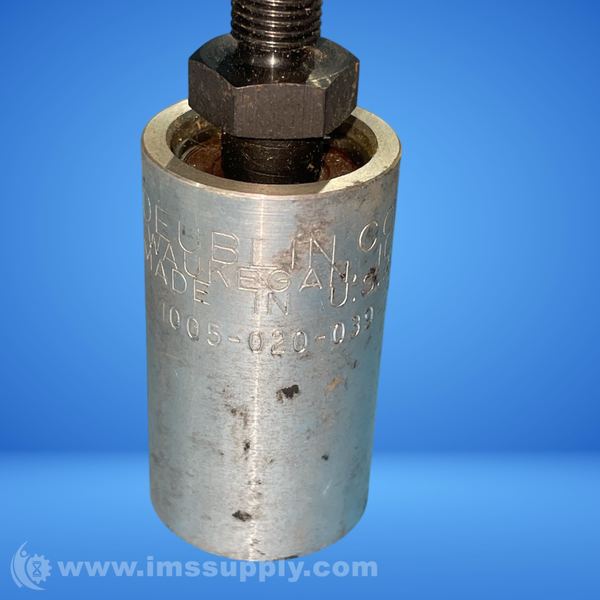

DEUBLIN 1005-020-039 ROTARY UNION
Quick Overview
Manufactured By: DEUBLIN
Manufacturer Part Number: 1005-020-039
IMS Product Code: 2153212
Packaging: Sold Individually
Description:
Deublin 1005-020-039 Rotary Union
Rotary union with 3/8-24 UNF LH rotor connection and 1/8-27 NPT housing connection for air, hydraulic oil, and vacuum applications.
Specifications
- Series: 1005
- Rotor Connection: 3/8-24 UNF LH
- Housing Connection: 1/8-27 NPT
- Media: Air, Hydraulic Oil, Vacuum
- Air Max Flow: 283 l/min
- Air Max Pressure: 10 bar
- Air Max Temperature: 121 degrees C
- Hydraulic Oil Max Flow: 6.7 l/min
- Hydraulic Oil Max Pressure: 69 bar
- Hydraulic Oil Max Temperature: 121 degrees C
- Vacuum Max Pressure: -0.95 bar
- Vacuum Max Temperature: 121 degrees C
- Material: Aluminium, Stainless Steel, Carbon Steel
- Rotational Speed: 0-3500 rpm
- Weight: 0.250 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 9 hours and 58 minutes.
