DEUBLIN 1115-179-040 ROTATING UNION
Quick Overview
Manufactured By: DEUBLIN
Manufacturer Part Number: 1115-179-040
IMS Product Code: 2153192
Packaging: Sold Individually
Description:

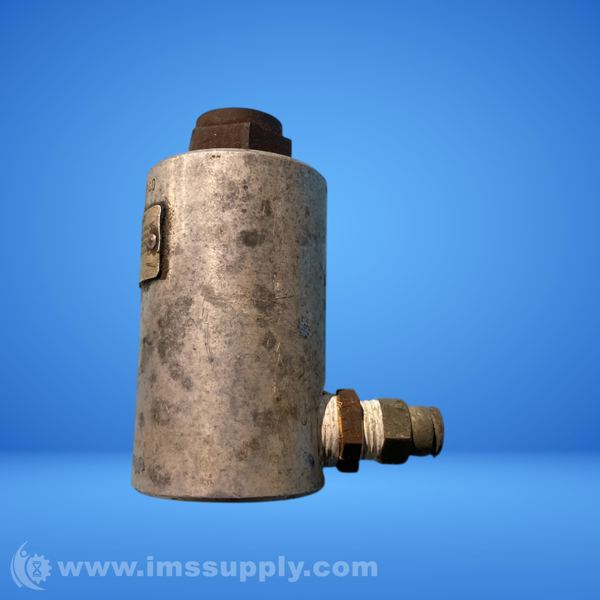

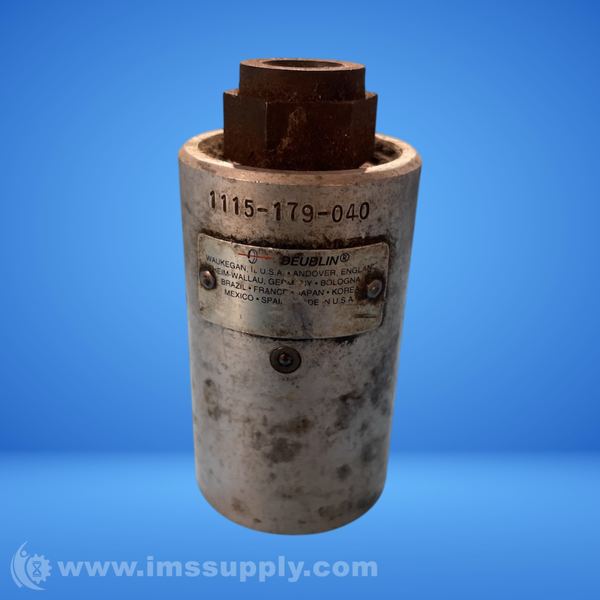

Deublin 1115-179-040 Rotating Union
Self-supported rotating union with balanced mechanical seal, aluminum housing, and grease-sealed ball bearings. Suitable for pneumatic, hydraulic, and vacuum applications.
Specifications
- Design: Monoflow design
- Type: Self-supported rotating union
- Housing Orientation: Radial housing connection
- Seal Type: Balanced mechanical seal
- Seal Feature: Felt oiler in seal cavity for air service
- Lubrication: Oiler for relubrication (3 - 5 drops/month)
- Torque: Low torque
- Weight Design: Weight-optimized design
- Housing Material: Aluminum housing
- Bearing Type: Bearings lubricated for life
- Rotor Connection: 1/4"-18 NPT RH
- Supply Connection: 1/4"-18 NPT
- Pneumatic Max Flow: 2549 l/min
- Pneumatic Max Pressure: 10 bar
- Pneumatic Max Temperature: 121 degrees C
- Hydraulic Max Flow: 12.5 l/min
- Hydraulic Max Pressure: 34.5 bar
- Hydraulic Max Temperature: 121 degrees C
- Vacuum Max Pressure: -0.95 bar
- Vacuum Max Temperature: 121 degrees C
- Dimension C: 43.64 mm
- Dimension D1: 87 mm
- Dimension E: 14 mm
- Dimension F: 5 mm
- Dimension G: 8.7 mm
- Dimension H: 24 mm
- Dimension J: 69 mm
