DEUBLIN 255-023-445 ROTARY UNION
Quick Overview
Manufactured By: DEUBLIN
Manufacturer Part Number: 255-023-445
IMS Product Code: 2093701
Packaging: Sold Individually
Description:

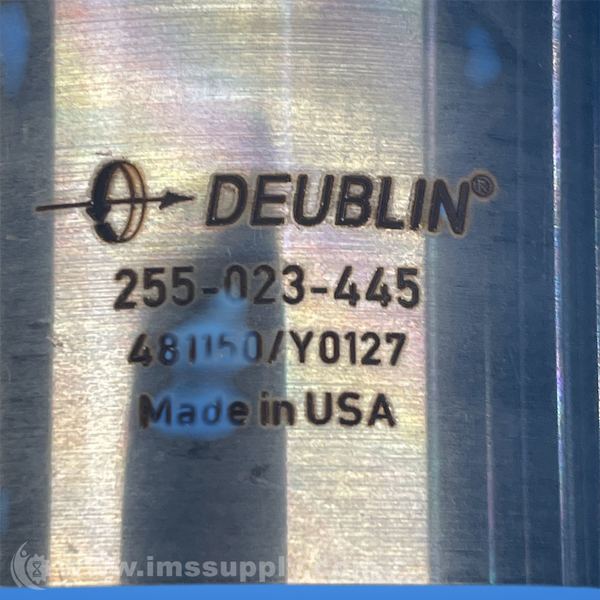

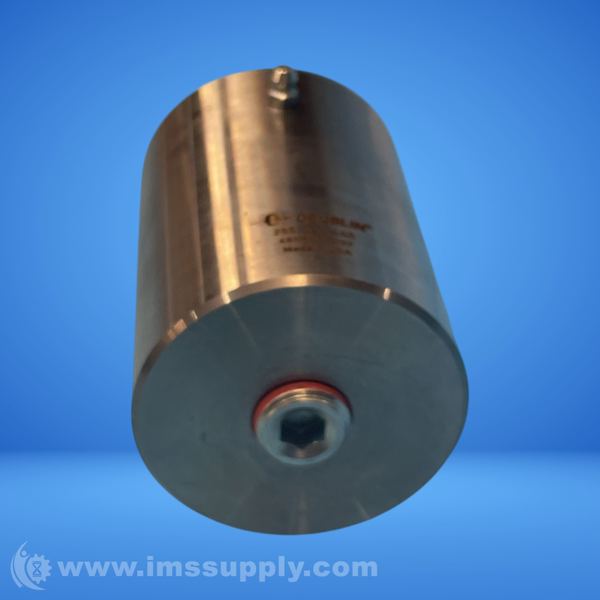

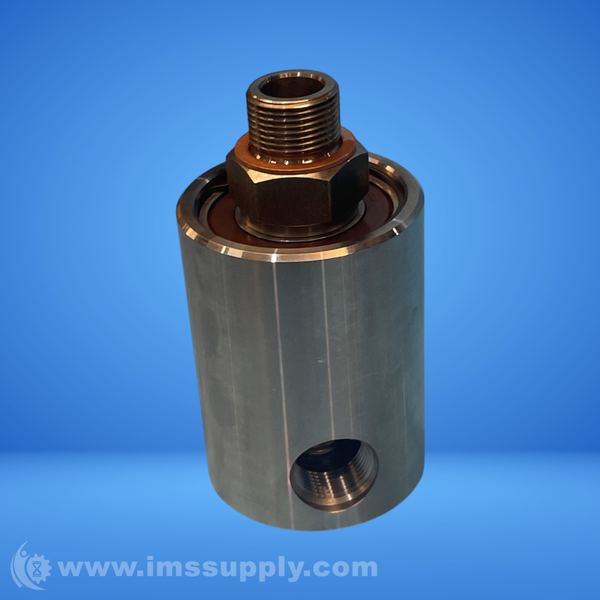

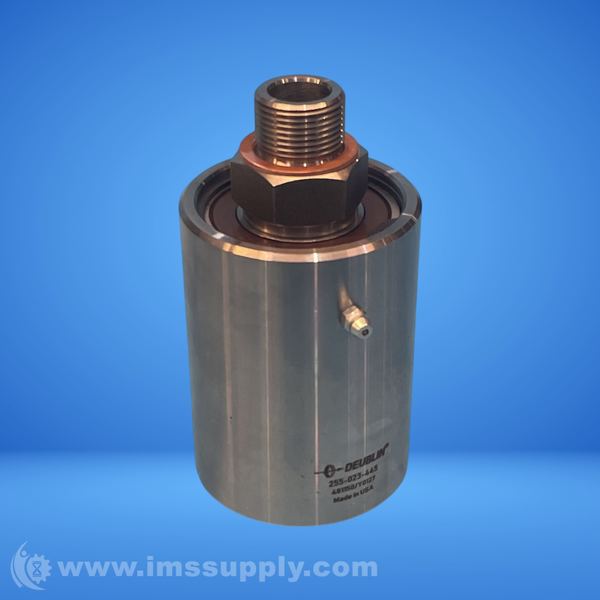

Deublin 255-023-445 Rotary Union
A rotary union for industrial equipment, designed for single or dual flow applications with a self-supporting design and radial housing connection.
Specifications
- Coolant Pressure: 100 PSI
- Coolant Temp: 250 F
- Hose Connection: BSP
- Housing Connection: Radial
- Housing Thread: 3/4"
- Media: Hot Oil, Steam, Water, Water Glycol
- MQL Pressure: 750 PSI
- MQL Temp: 250 F
- Passages: One Passage
- Rotor: 3/4" BSPT RH
- Rotor Thread Direction: Right-Hand
- Rotor Thread Size: 3/4"
- Rotor Type: Threaded
- Seal: Standard Seals
- Type: Union
- Union Size: 3/4"
- A: G 3/4"-14 RH
- B: 3/4"-14 NPT
- C: 73.03 mm
- D1: 137 mm
- E: 34 mm
- F: 19 mm
- G: 17.5 mm
- H: 32 mm
- J: 94 mm
- K: 1/2"-14 NPT
- P: Non-Threaded
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
