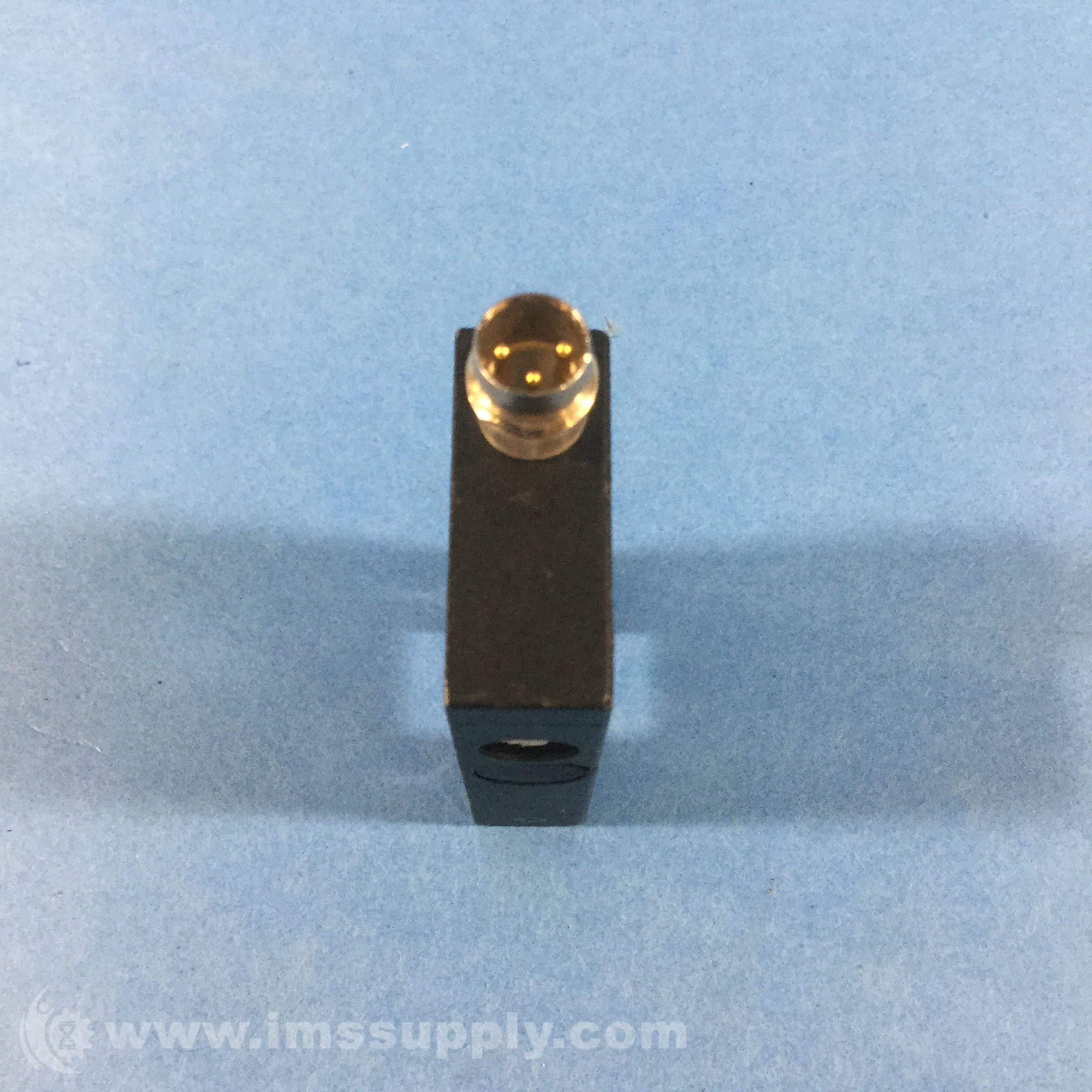

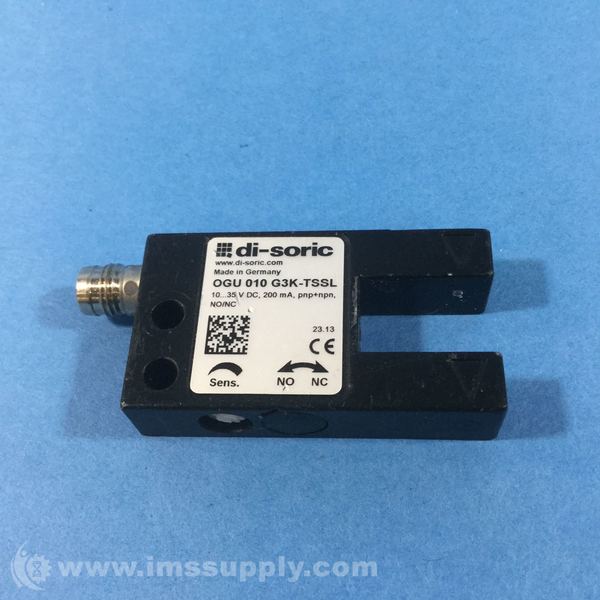

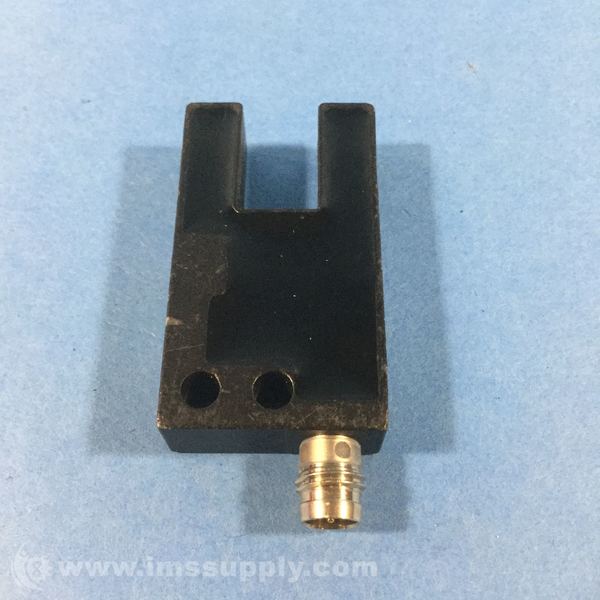

DI SORIC OGU 010 G3K-TSSL FORK LIGHT BARRIER
Quick Overview
Manufactured By: DI SORIC
Manufacturer Part Number: OGU 010 G3K-TSSL
IMS Product Code: 1777743
Packaging: Sold Individually
Description:
Di Soric OGU 010 G3K-TSSL Fork Light Barrier
Specifications:
- Operating principle: Optical
- Evaluation: digital
- Size: 25 x 45 x 10 mm (Dimensions)
- Design: fork
- Fork opening: 10 mm
- Branch length: 16.8 mm
- Emitted light: Infrared, 870 nm, clocked
- Service voltage: 10 ... 35 V DC (Supply Class 2)
- Internal power consumption: < 20 mA
- Resolution: Ø 0,3 mm
- Sensitivity adjustment: potentiometer
- Switching output: Push pull, 200 mA, NO/NC, switchable
- Switching hysteresis: < 0,1 mm
- Voltage drop: < 1,5 V
- Switching frequency: 10.000 Hz
- Reproducibility: < 0,05 mm
- Ambient temperature: -10 … +60 °C
- Ambient light immunity: 20 kLx
- Insulation voltage endurance: 500 V
- Protection class: IP 67
- Protection degree: III, operation on protective low voltage
- Casing material: Die-cast zinc black lacquered finish
- Connection: Connector, M8, 3-poled
- Connecting cable: TK ...
