DI-SORIC OGUFIX-121-P1K-TSSL FORK LIGHT BARRIER
Quick Overview
Brand: DI-SORIC
Part Number: OGUFIX-121-P1K-TSSL
IMS Product Code: 2136842
Packaging: Sold Individually
Description:

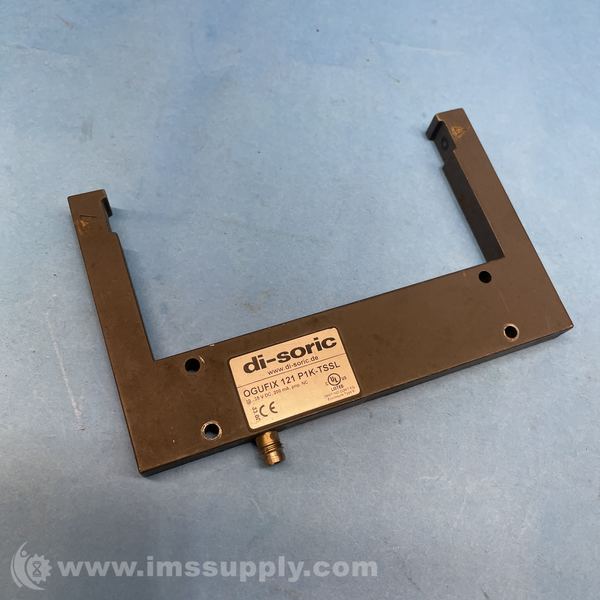

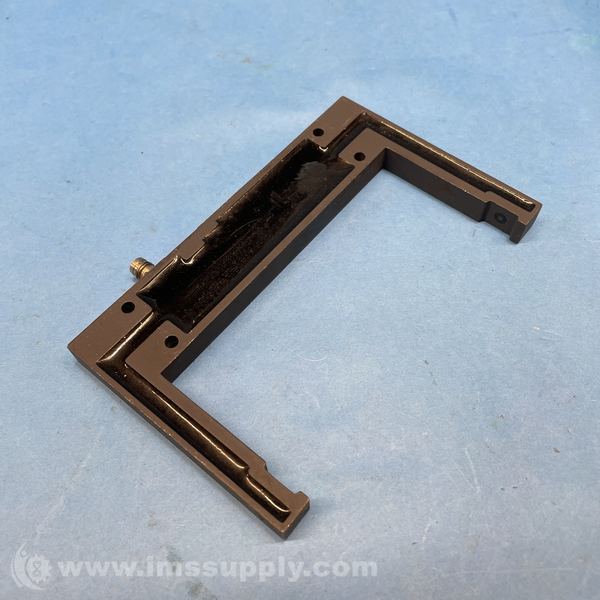

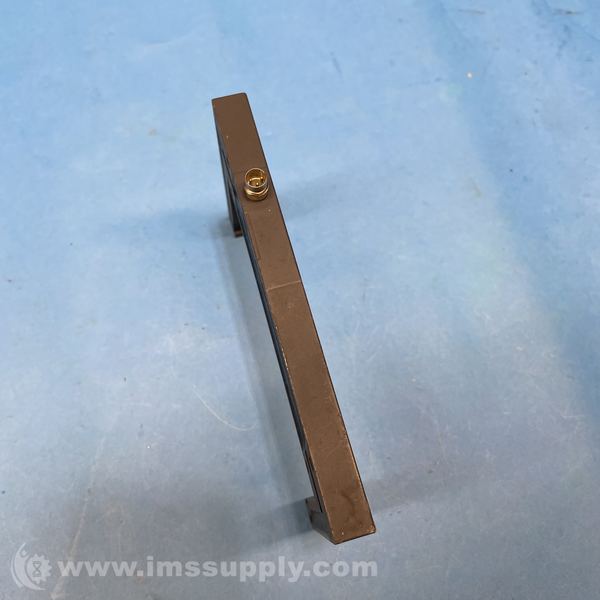

di-soric OGUFIX-121-P1K-TSSL Fork Light Barrier
Optical sensor with fork design, 120mm fork opening, PNP output, 200mA switching current, M8 connector
Specifications
- Operating Principle: Optical
- Evaluation: Digital
- Size: 144 x 90 x 12 mm
- Fork Opening: 120 mm
- Service Voltage: 10 ... 35 V DC
- No-load Current: < 30 mA
- Switching Output: PNP, 200 mA, NC
- Switching Frequency: 1500 Hz
- Ambient Temperature: -10 … +60 degrees C
- Protection Class: IP 67
- Casing Material: Die-cast zinc grey lacquered finish
- Connection: Connector, M8, 3-poled
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 6 In Stock
Ships today if ordered in the next 7 hours and 47 minutes.
