DODGE 008045 7H POLY-DISC COUPLING FLANGE
Quick Overview
Manufactured By: DODGE
Manufacturer Part Number: 008045
IMS Product Code: 1782273
Packaging: Sold Individually
Description:

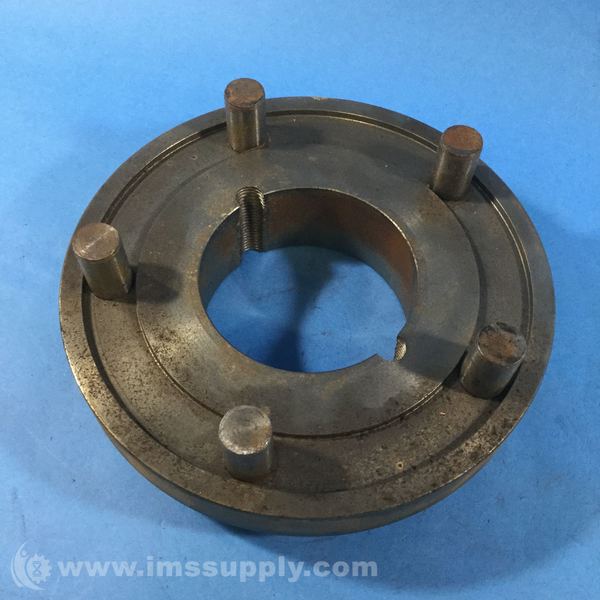

Dodge 008045 7H Poly-Disc Coupling Flange
Elastomeric coupling flange component made of cast iron, part of the Poly-Disc series, with taper-lock bushing.
Specifications
- Angular misalignment: 2.0
- Bore dia max: 2.6875 in
- Bore dia min: 0.5000 in
- Bore length: 1.7500 in, 44.45 mm
- Bushing size: 2517
- Bushing type: Taper-lock
- Coupling component: Flange
- Coupling size: 7
- Coupling style: Pin
- Coupling type: Elastomeric
- Flange material: Cast iron
- Horsepower per 100 rat: 4.6000 hp, 3.43 kW
- Max Speed: 3000 rpm
- Max temperature rating: 170.0000 F, 76.667 C
- Min temperature rating: -90.0000 F, -67.778 C
- Parallel misalignment: 0.0313 in, 0.795 mm
- Rated Torque: 2900.0000 lbf, 12899.843 N
- Shaft attachment: Bushed
- Shaft spacing: Close coupled
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships on Monday, December 15, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
