DUNGS AA-A2-6-2 AIR PRESSURE SWITCH
Quick Overview
Manufactured By: DUNGS
Manufacturer Part Number: AA-A2-6-2
IMS Product Code: 1761275
Packaging: Sold Individually
Description:

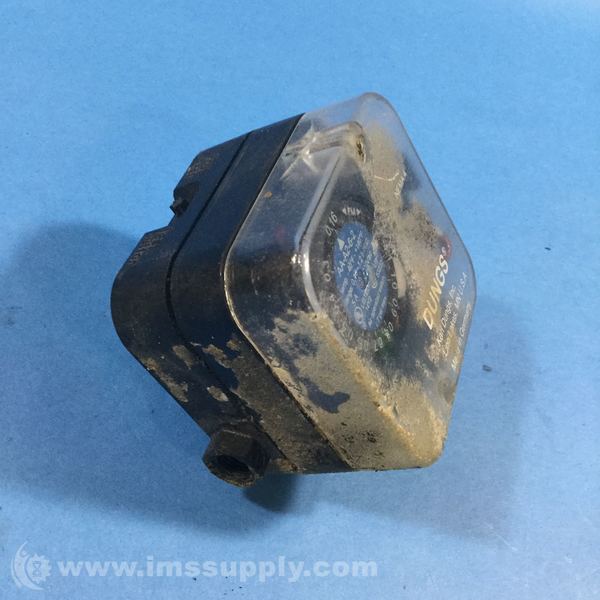

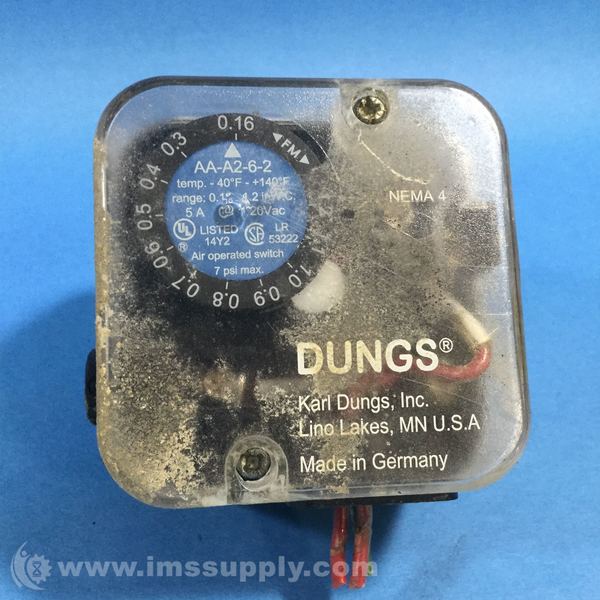

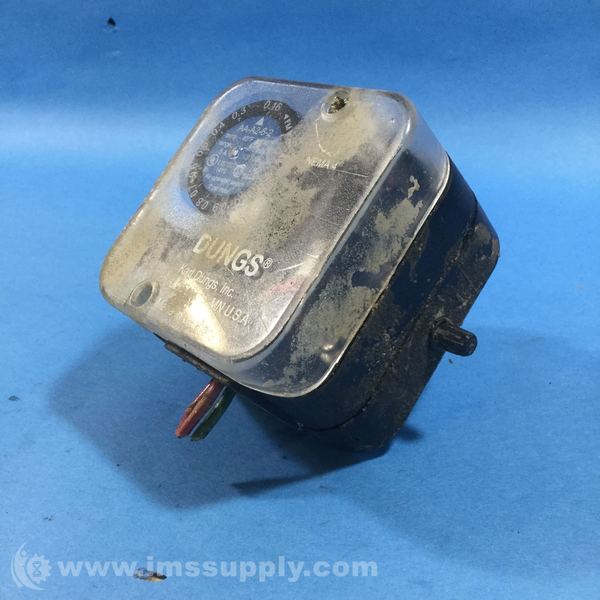

Dungs AA-A2-6-2 Air Pressure Switch
Field adjustable compact pressure switch for automatic burner controls. Suitable for differential, vacuum, or positive pressure applications. Monitors pressure in firing, ventilation, and air-conditioning systems.
Specifications
- Adjustment Range: 0.16 to 1.2 inches WC
- Switch Type: SPDT Switch 5A @ 120Vac
- Max Operating Pressure: 7 PSI (500 mbar)
- Temperature Rating: -40 degrees F to +140 degrees F
- Connection Type: Threaded Connection
- Positive Connection: 1/4 inch NPT
- Negative Connection: 1/8 inch NPT
- Enclosure Rating: NEMA Type 4
- Reset Type: Automatic
- Medium: Air and non-aggressive gases
- Current Rating: 5 AMP
- Voltage: 120 VAC
- Frequency: 50/60 Hz
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 50 minutes.
Used (Special):

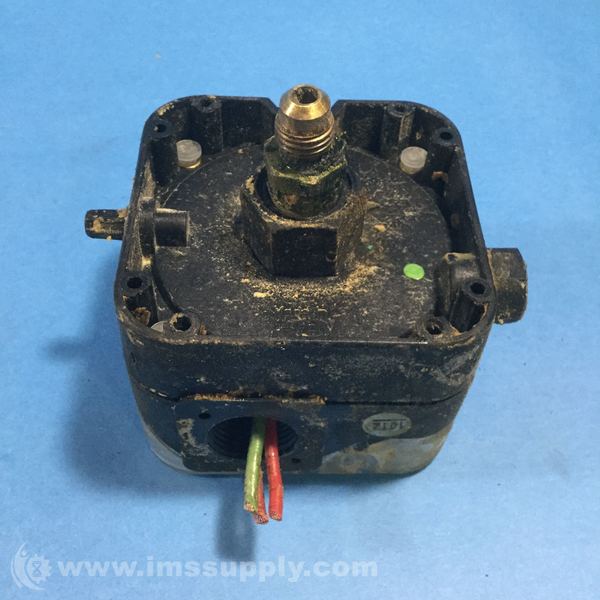

piping attached to back
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 50 minutes.
