DWYER V6EPB-B-S-2-B MINI-SIZE FLOW SWITCH
Quick Overview

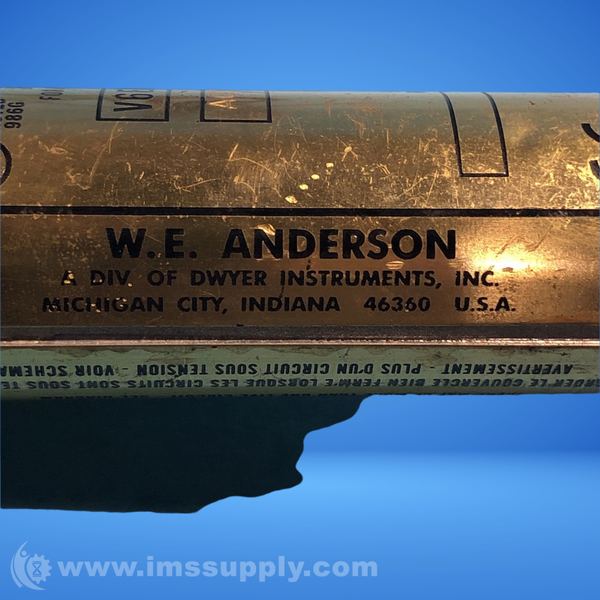

Manufactured By: DWYER INSTRUMENTS
Manufacturer Part Number: V6EPBBS2B
IMS Product Code: 2022456
Packaging: Sold Individually
Description:

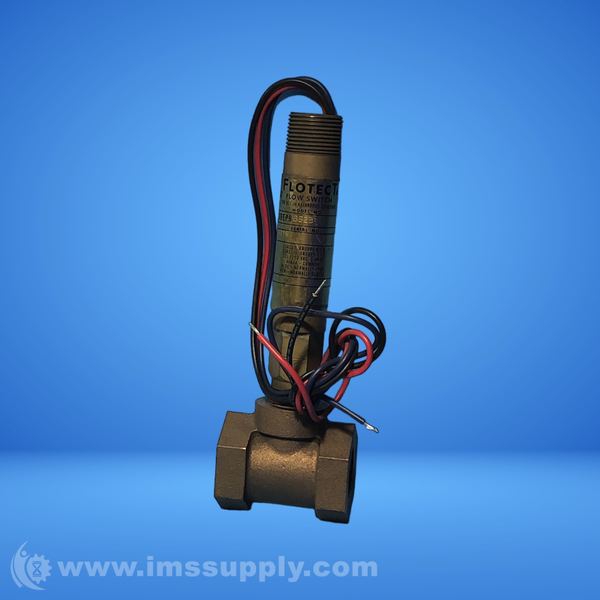

Dwyer V6EPB-B-S-2-B Mini-Size Flow Switch
Explosion-proof flow switch with brass body, SPDT snap switch, 3/4" NPT connection
Specifications
- Body Material: Brass
- Vane Material: 301 Stainless Steel

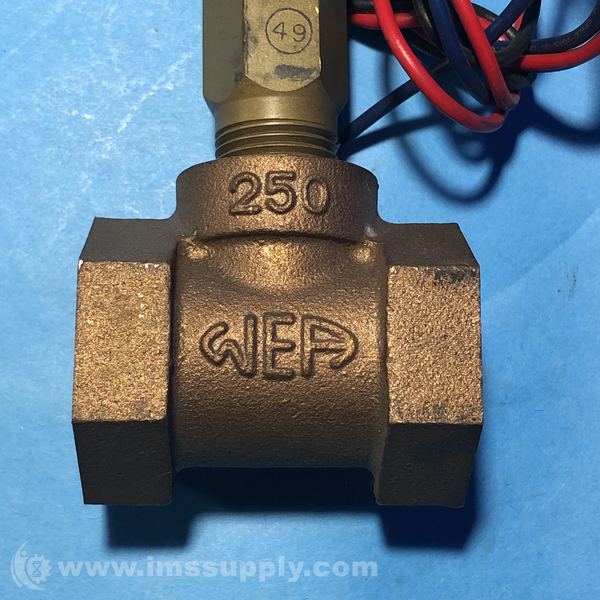

- Tee Material: Brass
- Switch Type: SPDT Snap Switch
- Connection Size: 3/4" NPT
- Max Pressure: 1,000 psi
- Max Temperature: 220 degrees F
- Temperature Limits: -4 to 220 degrees F (-20 to 105 degrees C)
- Pressure Limit: Brass lower body with no tee models: 1000 psig (69 bar), 303 SS lower body with no tee models: 2000 psig (138 bar), Brass tee models: 250 psi (17.2 bar), Iron tee models: 1000 psi (69 bar), Forged and stainless-steel tee models: 2000 psi (138 bar)
- Enclosure Rating: Weatherproof and Explosion-proof
- Electrical Rating: UL models: 5 A @125/250 VAC, CSA, ATEX and IECEx models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC (V)

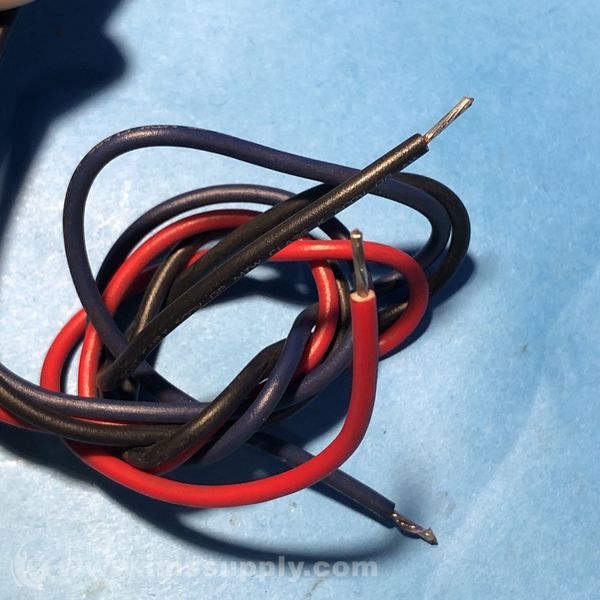

- Electrical Connections: UL models: 18 AWG, 18" (460 mm) long, ATEX/CSA /IECEx models: terminal block
- Conduit Connection: 3/4" male NPT standard, 3/4" female NPT or M25 with BSPT option on junction box models
- Process Connection: 1/2" male NPT or 1/2" male BSPT on models without a tee
- Mounting Orientation: Switch can be installed in any position
- Set Point Adjustment: Standard V6 models: None, Without tee models: Vane is trimmable, Low flow models: Field adjustable
- Wetted Materials: Standard V6 Models: Vane: 301 SS, Lower Body: brass or 303 SS, Magnet: Ceramic, Other: 301, 302 SS, Tee: Brass, iron, forged steel, or 304 SS
- Service: Gases or liquids compatible with wetted materials
- Pipe Size: 3/4 in
- Weight: 4 to 6 lb (.9 to 2.7 kg)
- Approvals: ATEX, CE, CSA, IECEx, KTL, UL
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
